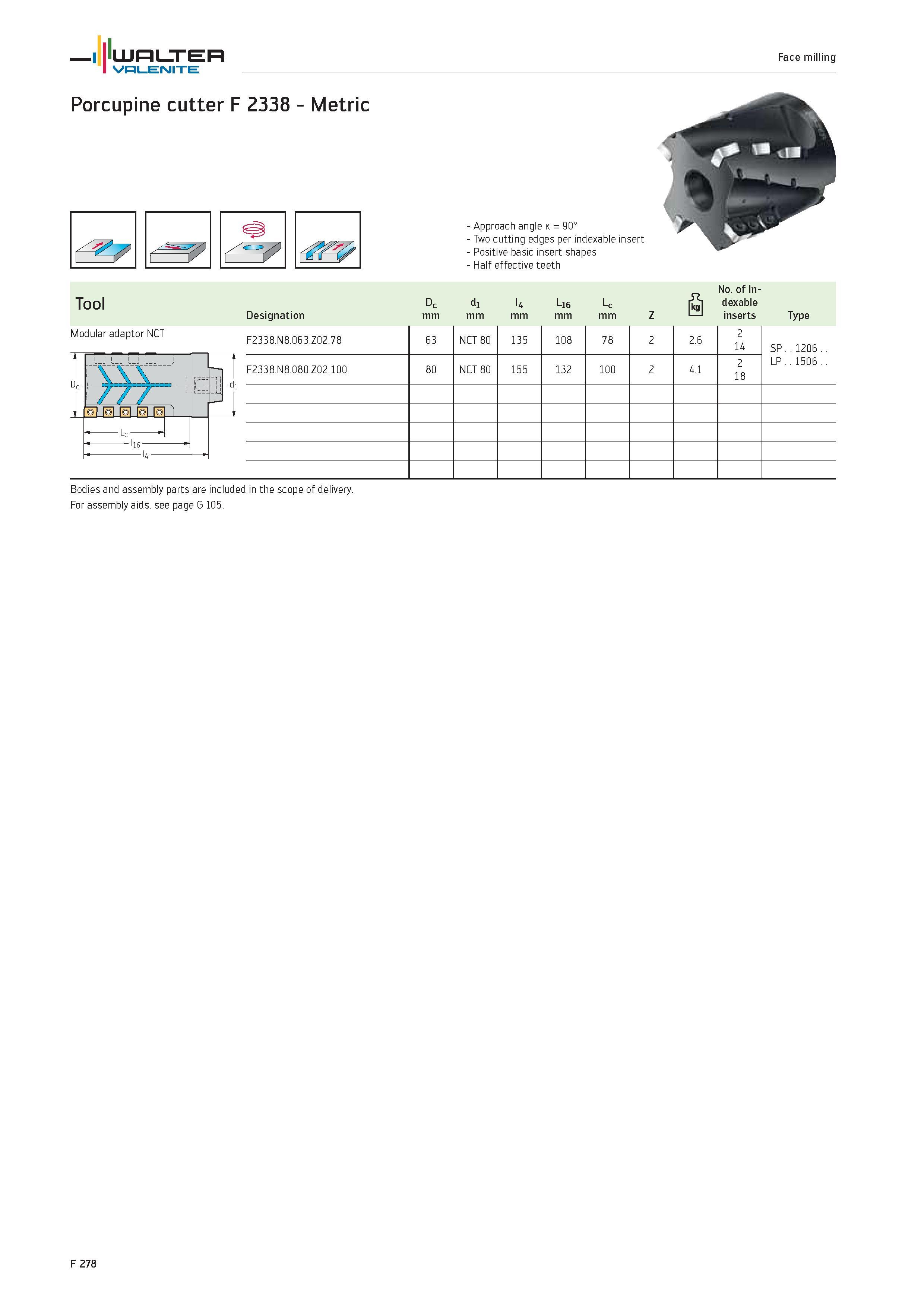

WALTER Valenite Face milling Porcupine cutter F 2338 Metric "7 Modular adaptor NCT Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Half effective teeth No. of In- Tool Dc di l4 L16 Lc Ikgl dexable Designation mm Z 1 1 inserts Type F2338.N8.063.Z02.78 63 NCT 80 135 108 78 2 2.6 2 14 SP..1206 LP..1506 F2338.N8.080.Z02.100 80 NCT 80 155 132 100 2 4.1 2 18 Bodies and assembly parts are included in the scope of delivery. For assembly aids, see page G 105. F 278
