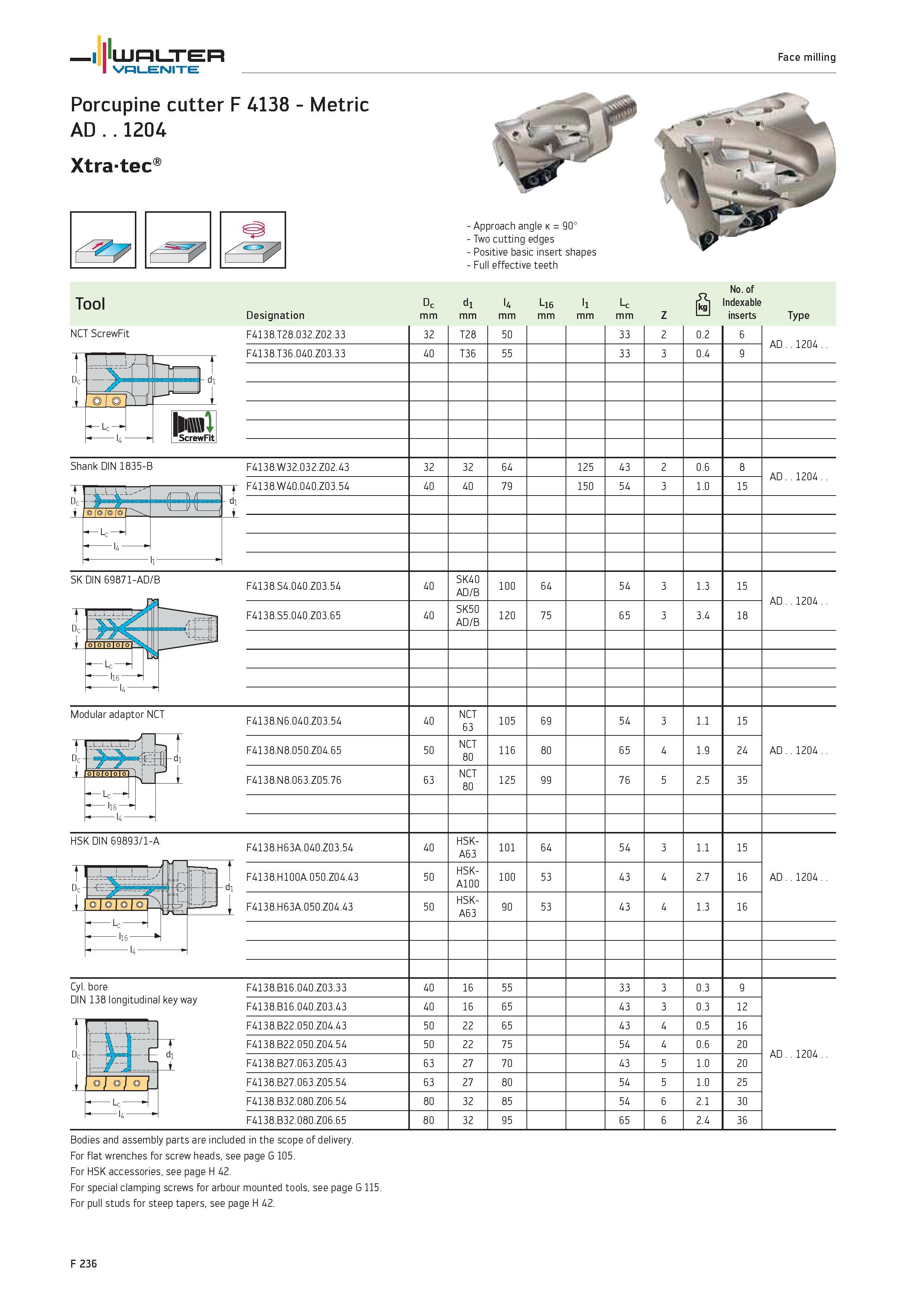

WALTER Valenite Face milling Porcupine cutter F 4138 Metric AD ..1204 Xtra-tec Approach angle k 90° Two cutting edges Positive basic insert shapes Full effective teeth No. of Tool Dc di l4 L16 l1 Lc kgl Inttablc Designation mm Z 1 1 inserts Type NCT ScrewFit F4138.T28.032.Z02.33 32 T28 50 33 2 0.2 6 AD..1204. F4138.T36.040.Z03.33 40 T36 55 33 3 0.4 9 F4138.W32.032.Z02.43 32 32 64 125 43 2 0.6 8 AD..1204. F4138.W40.040.Z03.54 40 40 79 150 54 3 1.0 15 F4138.S4.040.Z03.54 40 SK40 AD/B 100 64 54 3 1.3 15 AD..1204. F4138.S5.040.Z03.65 40 SK50 AD/B 120 75 65 3 3.4 18 F4138.N6.040.Z03.54 40 NCT 63 105 69 54 3 1.1 15 AD..1204. F4138.N8.050.Z04.65 50 NCT 80 116 80 65 4 1.9 24 F4138.N8.063.Z05.76 63 NCT 80 125 99 76 5 2.5 35 F4138.H63A.040.Z03.54 40 HSK- A63 101 64 54 3 1.1 15 AD..1204. F4138.H100A.050.Z04.43 50 HSK- A100 100 53 43 4 2.7 16 F4138.H63A.050.Z04.43 50 HSK- A63 90 53 43 4 1.3 16 F4138.B16.040.Z03.33 40 16 55 33 3 0.3 9 AD..1204. F4138.B16.040.Z03.43 40 16 65 43 3 0.3 12 F4138.B22.050.Z04.43 50 22 65 43 4 0.5 16 F4138.B22.050.Z04.54 50 22 75 54 4 0.6 20 F4138.B27.063.Z05.43 63 27 70 43 5 1.0 20 F4138.B27.063.Z05.54 63 27 80 54 5 1.0 25 F4138.B32.080.Z06.54 80 32 85 54 6 2.1 30 F4138.B32.080.Z06.65 80 32 95 65 6 2.4 36 Shank DIN 1835-B us -ll- SK DIN 69871-AD/B t D,c N.j. jl ll6 Modular adaptor NCT I HSK DIN 69893/1-A rp Dc 1 Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. For flat wrenches for screw heads, see page G 105. For HSK accessories, see page H 42. For special clamping screws for arbour mounted tools, see page G 115. For pull studs for steep tapers, see page H 42. L L L D L F 236
