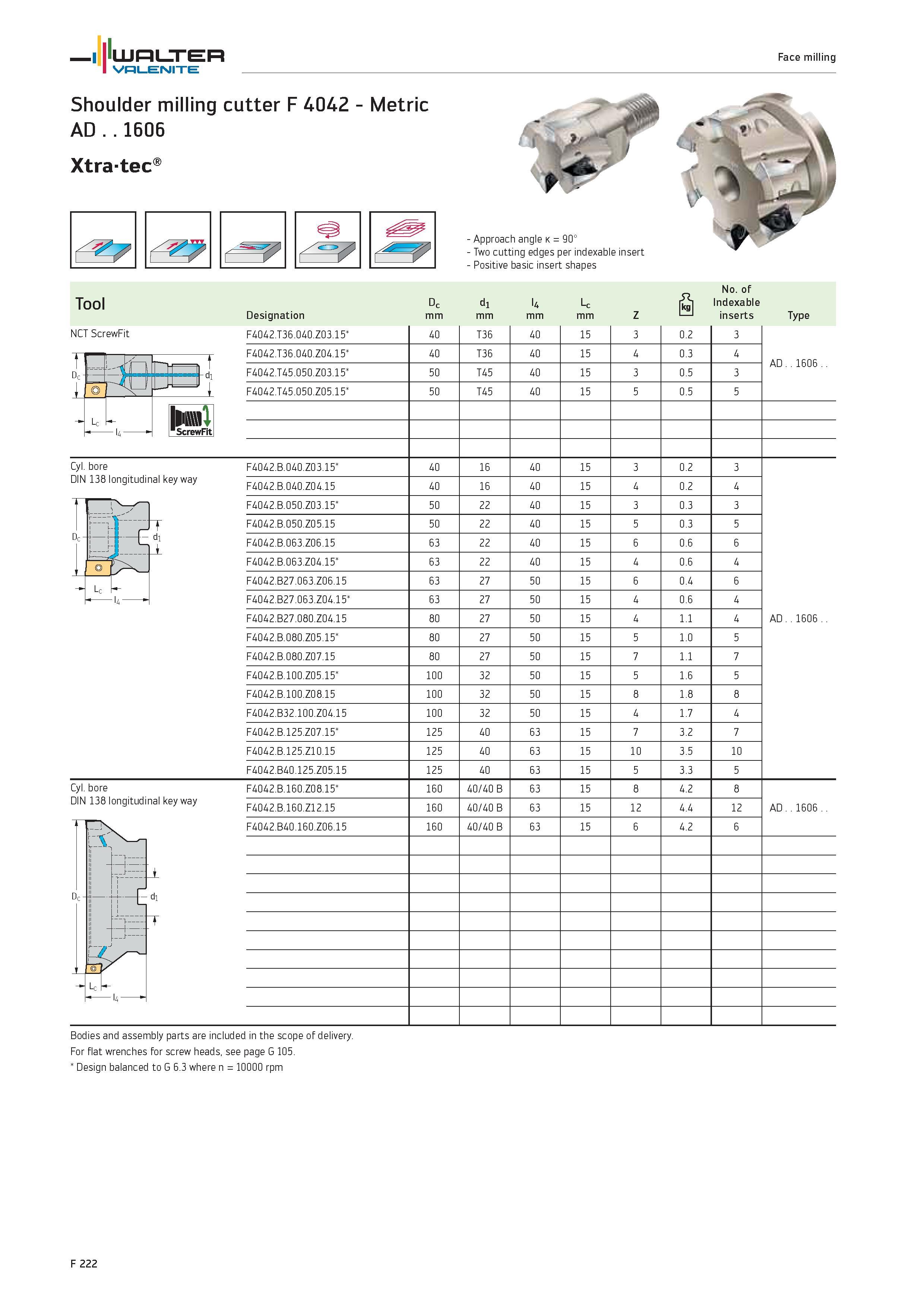

WALTER Valenite Face milling Shoulder milling cutter F 4042 Metric AD ..1606 Xtratec "7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes No. of Tool Dc di U Lc kgl Indexable Designation mm Z Lll inserts Type NCT ScrewFit n ml ScrewFit F4042.T36.040.Z03.15 40 T36 40 15 3 0.2 3 AD..1606. F4042.T36.040.Z04.15 40 T36 40 15 4 0.3 4 F4042.T45.050.Z03.15 50 T45 40 15 3 0.5 3 F4042.T45.050.Z05.15 50 T45 40 15 5 0.5 5 F4042.B.040.Z03.15 40 16 40 15 3 0.2 3 AD..1606. F4042.B.040.Z04.15 40 16 40 15 4 0.2 4 F4042.B.050.Z03.15 50 22 40 15 3 0.3 3 F4042.B.050.Z05.15 50 22 40 15 5 0.3 5 F4042.B.063.Z06.15 63 22 40 15 6 0.6 6 F4042.B.063.Z04.15 63 22 40 15 4 0.6 4 F4042.B27.063.Z06.15 63 27 50 15 6 0.4 6 F4042.B27.063.Z04.15 63 27 50 15 4 0.6 4 F4042.B27.080.Z04.15 80 27 50 15 4 1.1 4 F4042.B.080.Z05.15 80 27 50 15 5 1.0 5 F4042.B.080.Z07.15 80 27 50 15 7 1.1 7 F4042.B.100.Z05.15 100 32 50 15 5 1.6 5 F4042.B.100.Z08.15 100 32 50 15 8 1.8 8 F4042.B32.100.Z04.15 100 32 50 15 4 1.7 4 F4042.B.125.Z07.15 125 40 63 15 7 3.2 7 F4042.B.125.Z10.15 125 40 63 15 10 3.5 10 F4042.B40.125.Z05.15 125 40 63 15 5 3.3 5 F4042.B.160.Z08.15 160 40/40 B 63 15 8 4.2 8 AD..1606. F4042.B.160.Z12.15 160 40/40 B 63 15 12 4.4 12 F4042.B40.160.Z06.15 160 40/40 B 63 15 6 4.2 6 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. For flat wrenches for screw heads, see page G 105. Design balanced to G 6.3 where n 10000 rpm L F 222
