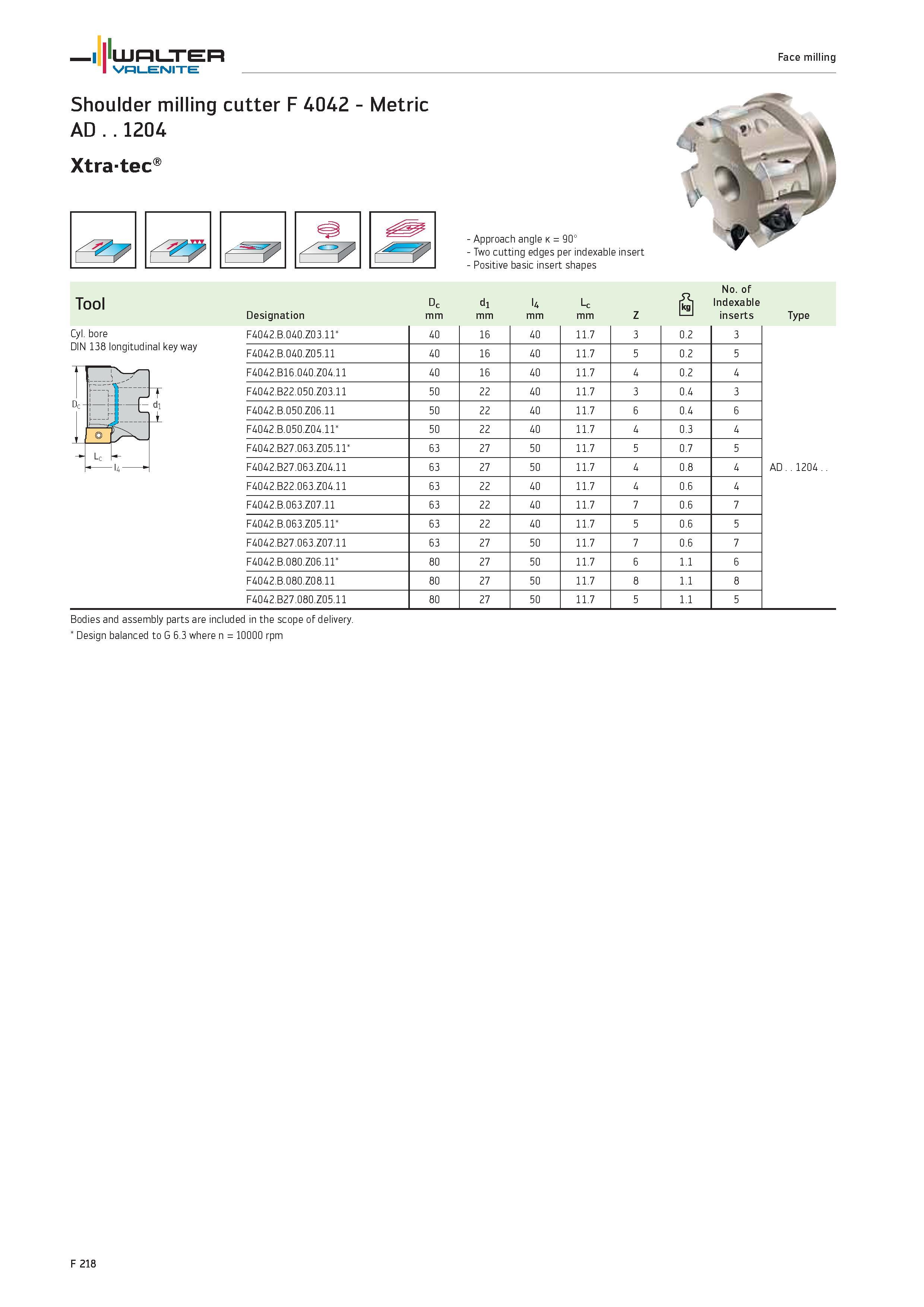

WALTER Valenite Face milling Shoulder milling cutter F 4042 Metric AD ..1204 Xtra-tec Tool Cyl. bore DIN 138 longitudinal key way "7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes No. of Dc d1 U Lc kg Indexable Designation mm Z inserts F4042.B.040.Z03.11 40 16 40 11.7 3 0.2 3 F4042.B.040.Z05.11 40 16 40 11.7 5 0.2 5 F4042.B16.040.Z04.11 40 16 40 11.7 4 0.2 4 F4042.B22.050.Z03.11 50 22 40 11.7 3 0.4 3 F4042.B.050.Z06.11 50 22 40 11.7 6 0.4 6 F4042.B.050.Z04.11 50 22 40 11.7 4 0.3 4 F4042.B27.063.Z05.11 63 27 50 11.7 5 0.7 5 F4042.B27.063.Z04.11 63 27 50 11.7 4 0.8 4 F4042.B22.063.Z04.11 63 22 40 11.7 4 0.6 4 F4042.B.063.Z07.11 63 22 40 11.7 7 0.6 7 F4042.B.063.Z05.11 63 22 40 11.7 5 0.6 5 F4042.B27.063.Z07.11 63 27 50 11.7 7 0.6 7 F4042.B.080.Z06.11 80 27 50 11.7 6 1.1 6 F4042.B.080.Z08.11 80 27 50 11.7 8 1.1 8 F4042.B27.080.Z05.11 80 27 50 11.7 5 1.1 5 Type AD .1204. Bodies and assembly parts are included in the scope of delivery. Design balanced to G 6.3 where n 10000 rpm F 218
