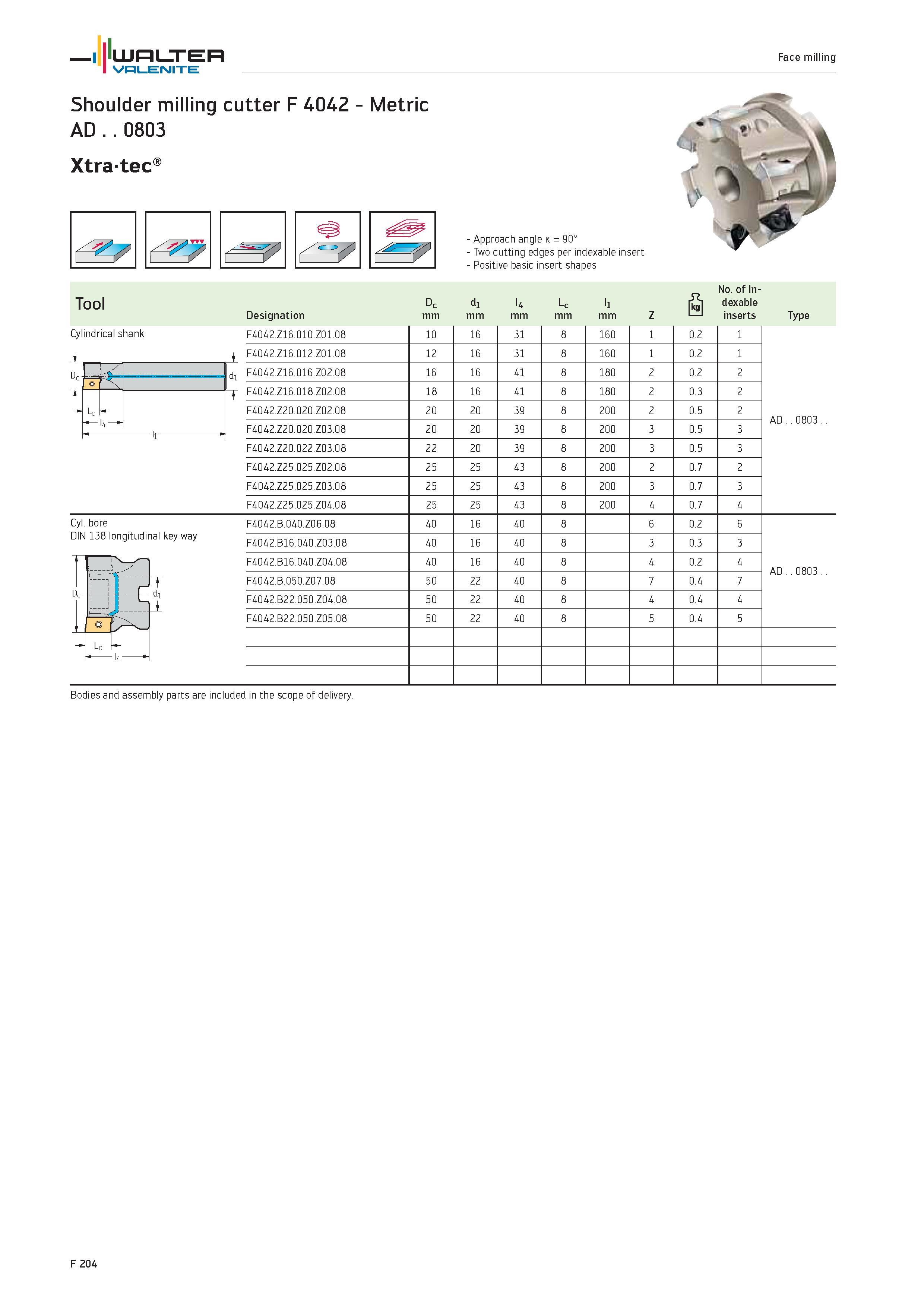

WALTER Valenite Face milling Shoulder milling cutter F 4042 Metric AD 0803 Xtra-tec "7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes No. of In- Tool Dc di l4 Lc li Ikgl dexable Designation mm Z 1 1 inserts Type Cylindrical shank Dc 1 % 1 Lc k- l4 li F4042.Z16.010.Z01.08 10 16 31 8 0 6 1 0.2 1 AD .0803.. F4042.Z16.012.Z01.08 12 16 31 8 0 6 1 0.2 1 F4042.Z16.016.Z02.08 16 16 41 8 180 2 0.2 2 F4042.Z16.018.Z02.08 18 16 41 8 180 2 0.3 2 F4042.Z20.020.Z02.08 20 20 39 8 200 2 0.5 2 F4042.Z20.020.Z03.08 20 20 39 8 200 3 0.5 3 F4042.Z20.022.Z03.08 22 20 39 8 200 3 0.5 3 F4042.Z25.025.Z02.08 25 25 43 8 200 2 0.7 2 F4042.Z25.025.Z03.08 25 25 43 8 200 3 0.7 3 F4042.Z25.025.Z04.08 25 25 43 8 200 4 0.7 4 F4042.B.040.Z06.08 40 16 40 8 6 0.2 6 AD .0803.. F4042.B16.040.Z03.08 40 16 40 8 3 0.3 3 F4042.B16.040.Z04.08 40 16 40 8 4 0.2 4 F4042.B.050.Z07.08 50 22 40 8 7 0.4 7 F4042.B22.050.Z04.08 50 22 40 8 4 0.4 4 F4042.B22.050.Z05.08 50 22 40 8 5 0.4 5 Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. F 204
