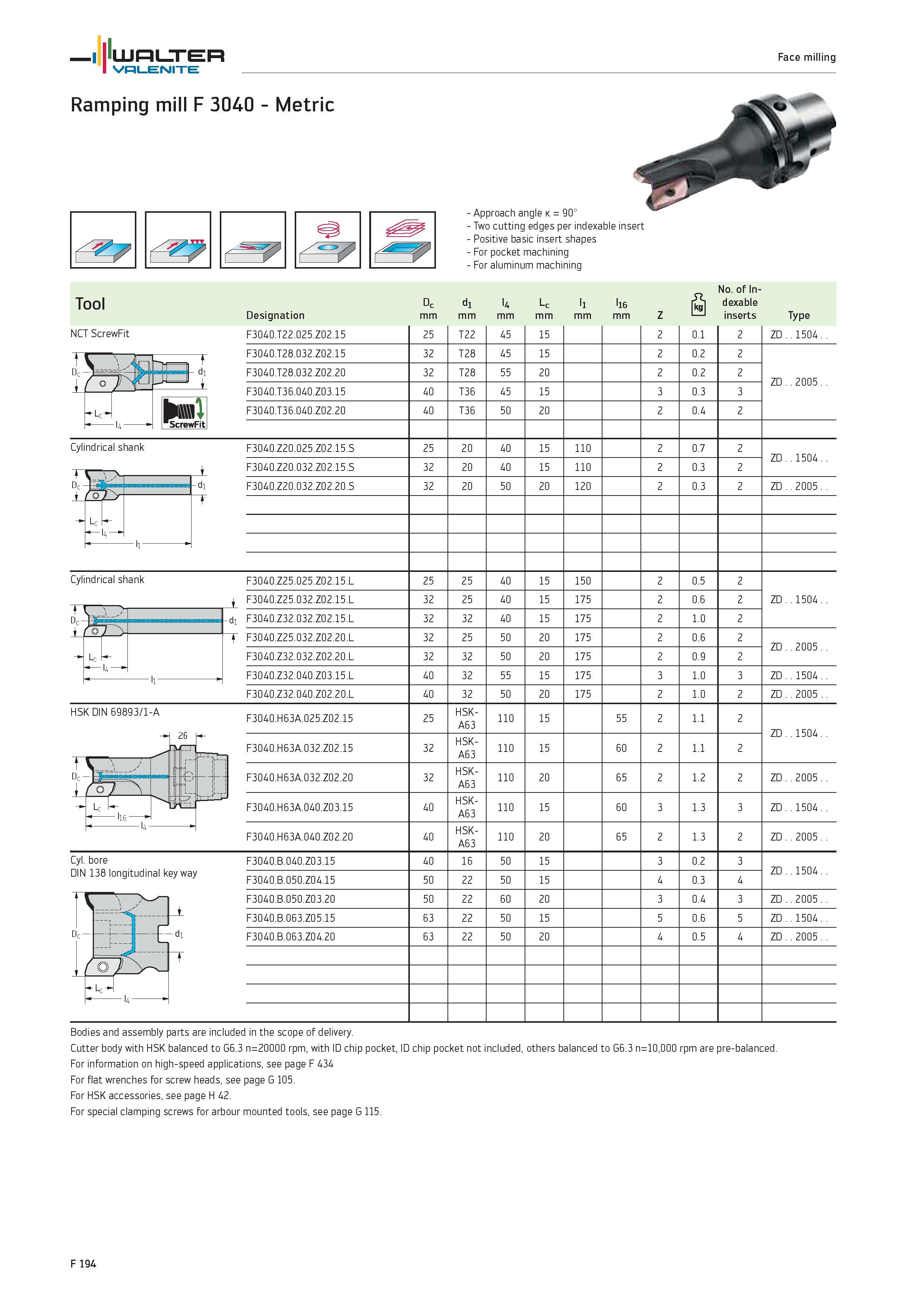

WALTER Valenite Face milling Ramping mill F 3040 Metric "7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes For pocket machining For aluminum machining No. of In- Tool US U 1 -a u D IkBl dexable Designation mm Z 1 1 inserts Type NCT ScrewFit F3040.T22.025.Z02.15 25 T22 45 15 2 0.1 2 ZD 1504 F3040.T28.032.Z02.15 32 T28 45 15 2 0.2 2 ZD 2005 F3040.T28.032.Z02.20 32 T28 55 20 2 0.2 2 F3040.T36.040.Z03.15 40 T36 45 15 3 0.3 3 F3040.T36.040.Z02.20 40 T36 50 20 2 0.4 2 F3040.Z20.025.Z02.15.S 25 20 40 15 110 2 0.7 2 ZD 1504 F3040.Z20.032.Z02.15.S 32 20 40 15 110 2 0.3 2 F3040.Z20.032.Z02.20.S 32 20 50 20 120 2 0.3 2 ZD 2005 F3040.Z25.025.Z02.15.L 25 25 40 15 150 2 0.5 2 ZD 1504 F3040.Z25.032.Z02.15.L 32 25 40 15 175 2 0.6 2 F3040.Z32.032.Z02.15.L 32 32 40 15 175 2 1.0 2 F3040.Z25.032.Z02.20.L 32 25 50 20 175 2 0.6 2 ZD 2005 F3040.Z32.032.Z02.20.L 32 32 50 20 175 2 0.9 2 F3040.Z32.040.Z03.15.L 40 32 55 15 175 3 1.0 3 ZD 1504 F3040.Z32.040.Z02.20.L 40 32 50 20 175 2 1.0 2 ZD 2005 F3040.H63A.025.Z02.15 25 HSK- A63 110 15 55 2 1.1 2 ZD 1504 F3040.H63A.032.Z02.15 32 HSK- A63 110 15 60 2 1.1 2 F3040.H63A.032.Z02.20 32 HSK- A63 110 20 65 2 1.2 2 ZD 2005 F3040.H63A.040.Z03.15 40 HSK- A63 110 15 60 3 1.3 3 ZD 1504 F3040.H63A.040.Z02.20 40 HSK- A63 110 20 65 2 1.3 2 ZD 2005 F3040.B.040.Z03.15 40 16 50 15 3 0.2 3 ZD 1504 F3040.B.050.Z04.15 50 22 50 15 4 0.3 4 F3040.B.050.Z03.20 50 22 60 20 3 0.4 3 ZD 2005 F3040.B.063.Z05.15 63 22 50 15 5 0.6 5 ZD 1504 F3040.B.063.Z04.20 63 22 50 20 4 0.5 4 ZD 2005 Cylindrical shank T Dc- JL -dl ) v- Lc k t -l4 ll Cylindrical shank Lc k- l4 ll HSK DIN 69893/1-A Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. Cutter body with HSK balanced to G6.3 n=20000 rpm, with ID chip pocket, ID chip pocket not included, others balanced to G6.3 n=10,000 rpm are pre-balanced. For information on high-speed applications, see page F 434 For flat wrenches for screw heads, see page G 105. For HSK accessories, see page H 42. For special clamping screws for arbour mounted tools, see page G 115. F 194
