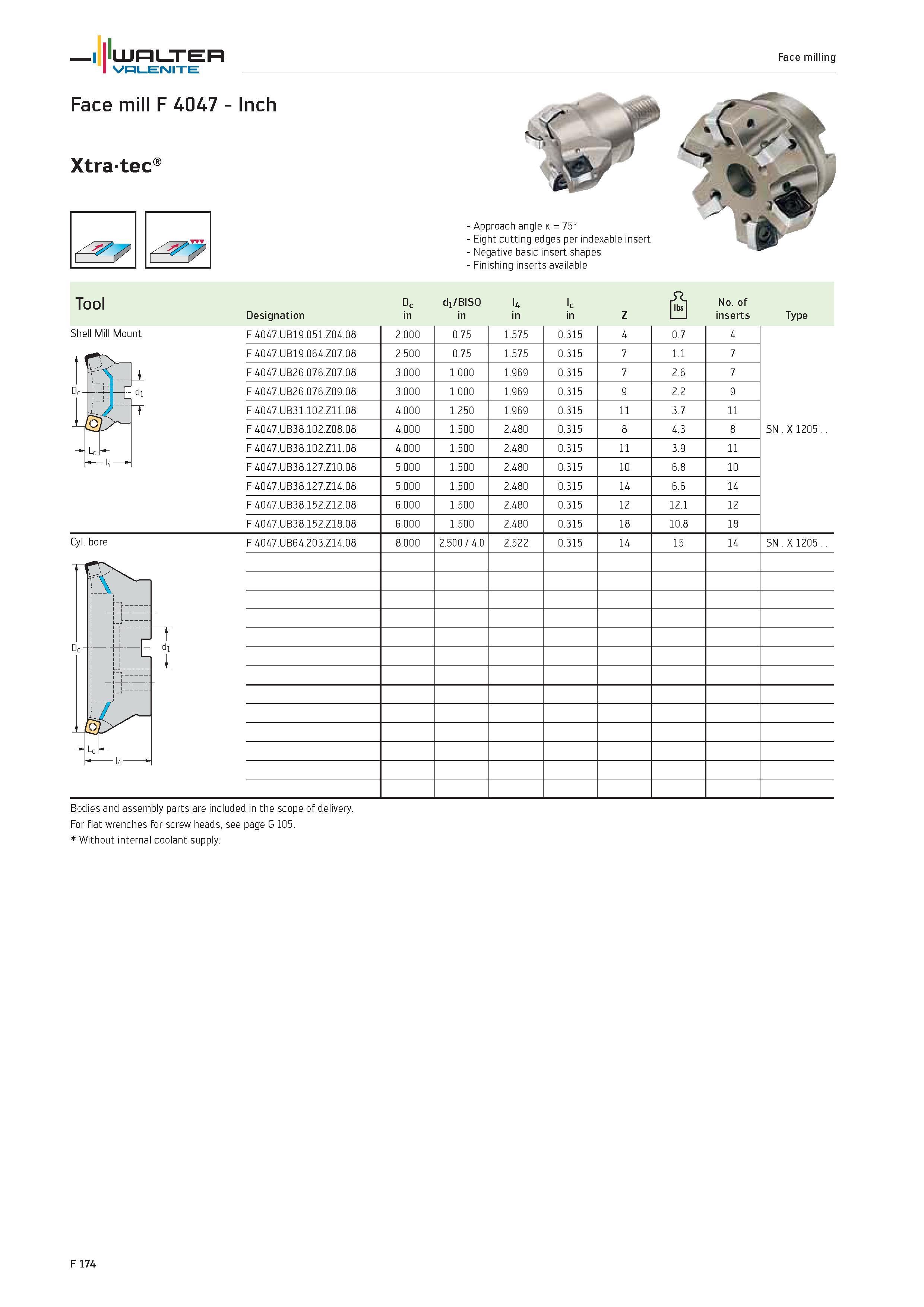

WALTER Valenite Face milling Face mill F 4047 Inch Xtra-tec Shell Mill Mount Approach angle k 75° Eight cutting edges per indexable insert Negative basic insert shapes Finishing inserts available Tool Dc d1/BISO l4 lc ft No- of Designation in Z l inserts Type F 4047.UB19.051.Z04.08 2.000 0.75 1.575 0.315 4 0.7 4 5 0 2 X N S F 4047.UB19.064.Z07.08 2.500 0.75 1.575 0.315 7 1.1 7 F 4047.UB26.076.Z07.08 3.000 1.000 1.969 0.315 7 2.6 7 F 4047.UB26.076.Z09.08 3.000 1.000 1.969 0.315 9 2.2 9 F 4047.UB31.102.Z11.08 4.000 1.250 1.969 0.315 11 3.7 11 F 4047.UB38.102.Z08.08 4.000 1.500 2.480 0.315 8 4.3 8 F 4047.UB38.102.Z11.08 4.000 1.500 2.480 0.315 11 3.9 11 F 4047.UB38.127.Z10.08 5.000 1.500 2.480 0.315 10 6.8 10 F 4047.UB38.127.Z14.08 5.000 1.500 2.480 0.315 14 6.6 14 F 4047.UB38.152.Z12.08 6.000 1.500 2.480 0.315 12 12.1 12 F 4047.UB38.152.Z18.08 6.000 1.500 2.480 0.315 18 10.8 18 F 4047.UB64.203.Z14.08 8.000 2.500 / 4.0 2.522 0.315 14 15 14 5 0 2 X N S Cyl. bore Bodies and assembly parts are included in the scope of delivery. For flat wrenches for screw heads, see page G 105. Without internal coolant supply. F 174
