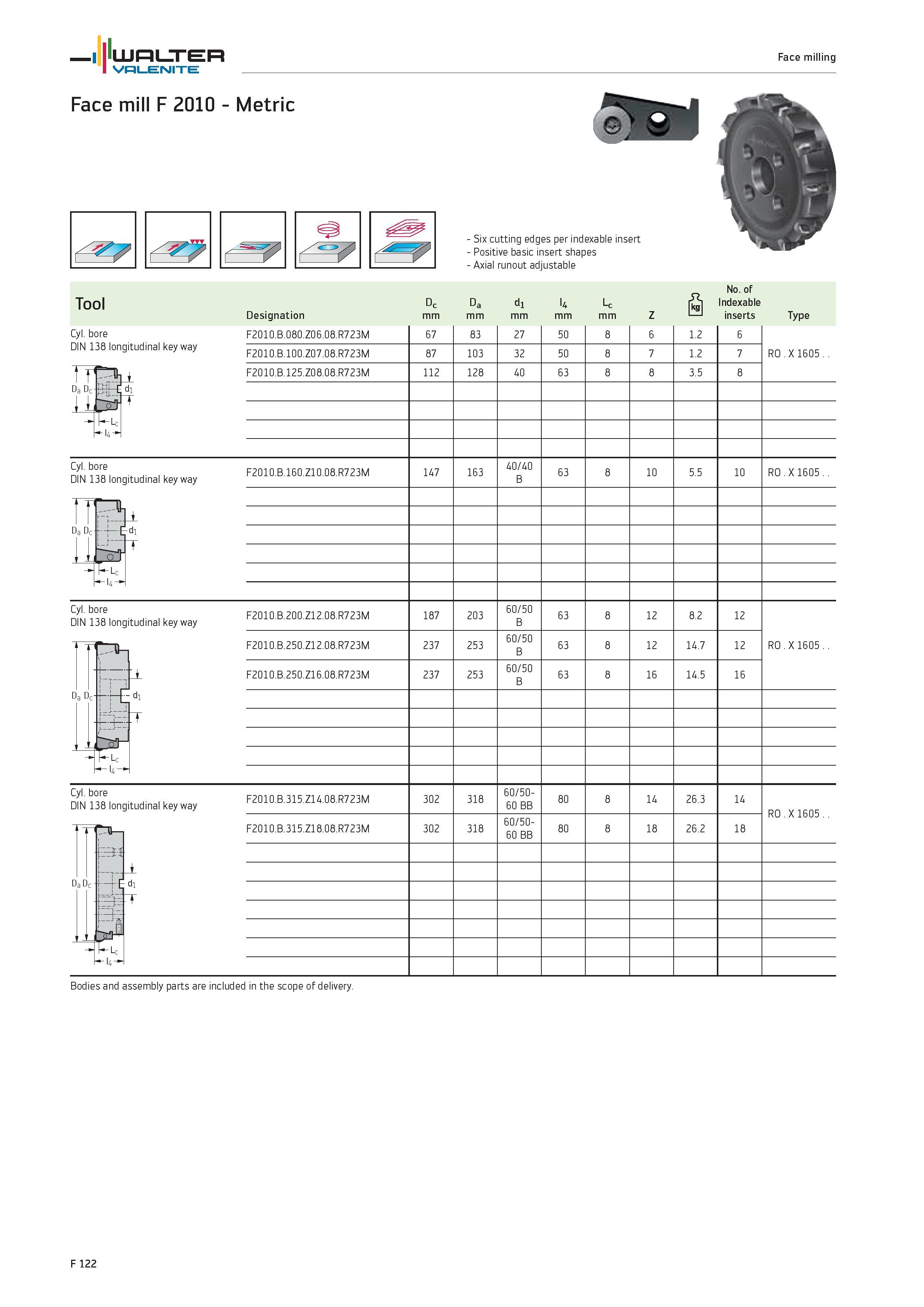

WALTER Valenite Face milling Face mill F 2010 Metric Cyl. bore DIN 138 longitudinal key way T Da Dc ii "7 Six cutting edges per indexable insert Positive basic insert shapes Axial runout adjustable No. of Tool Dc Da di u Lc kg Indexable Designation mm Z 1 1 inserts Type F2010.B.080.Z06.08.R723M 67 83 27 50 8 6 1.2 6 RO X 1605.. F2010.B.100.Z07.08.R723M 87 103 32 50 8 7 1.2 7 F2010.B.125.Z08.08.R723M 112 128 40 63 8 8 3.5 8 F2010.B.160.Z10.08.R723M 147 163 40/40 B 63 8 10 5.5 10 RO X 1605.. F2010.B.200.Z12.08.R723M 187 203 60/50 B 63 8 12 8.2 12 RO X 1605.. F2010.B.250.Z12.08.R723M 237 253 60/50 B 63 8 12 14.7 12 F2010.B.250.Z16.08.R723M 237 253 60/50 B 63 8 16 14.5 16 F2010.B.315.Z14.08.R723M 302 318 60/5060 BB 80 8 14 26.3 14 RO X 1605 F2010.B.315.Z18.08.R723M 302 318 60/5060 BB 80 8 18 26.2 18 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way :zm± -i F d1 Cyl. bore DIN 138 longitudinal key way Ed -:rj Bodies and assembly parts are included in the scope of delivery. L a -'c DaD a -'c L F 122
