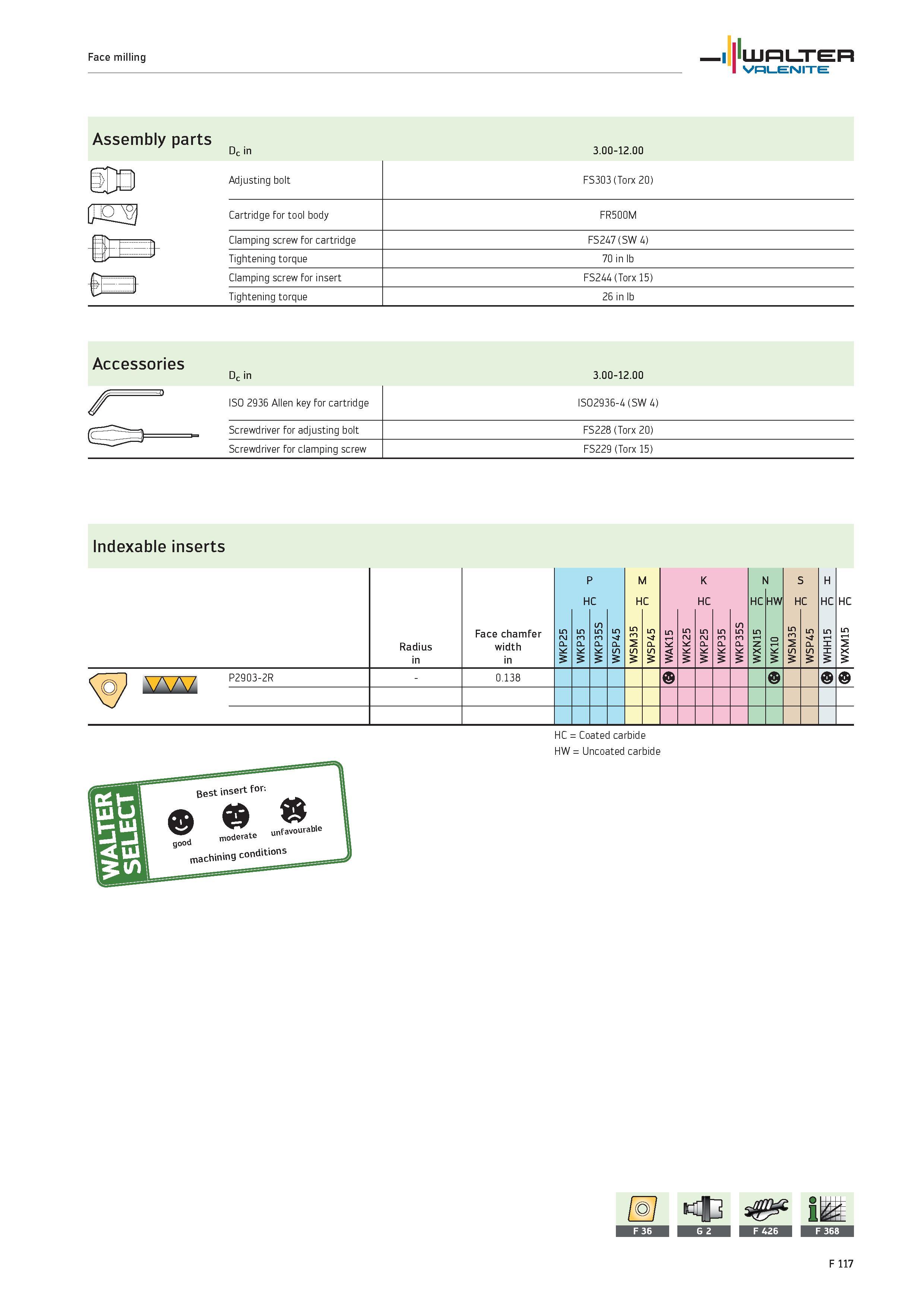

WALTER Valenite Face milling Assembly parts Dc in 3.00-12.00 Adjusting bolt FS303 (Torx 20) Cartridge for tool body FR500M fi Clamping screw for cartridge FS247 (SW 4) Tightening torque 70 in lb hi Clamping screw for insert FS244 (Torx 15) Tightening torque 26 in lb Accessories Dc in 3.00-12.00 ISO 2936 Allen key for cartridge ISO2936-4 (SW 4) Screwdriver for adjusting bolt FS228 (Torx 20) Screwdriver for clamping screw FS229 (Torx 15) Indexable inserts P HC M HC K HC N HC HW S HC H HC Radius in Face chamfer width in m CL 5 m m P Si S m m CL Si m P S Si m m 2 S ss m CL Si m l-H 1 m K ss m CL Si m m P K Si S m m P K si m l-H z X si o l-H m m 2 S 5 m CL WS m l-H 5 m l-H 2 X 5 Y7V7V7 P2903-2R 0.138 HC Coated carbide HW Uncoated carbide
