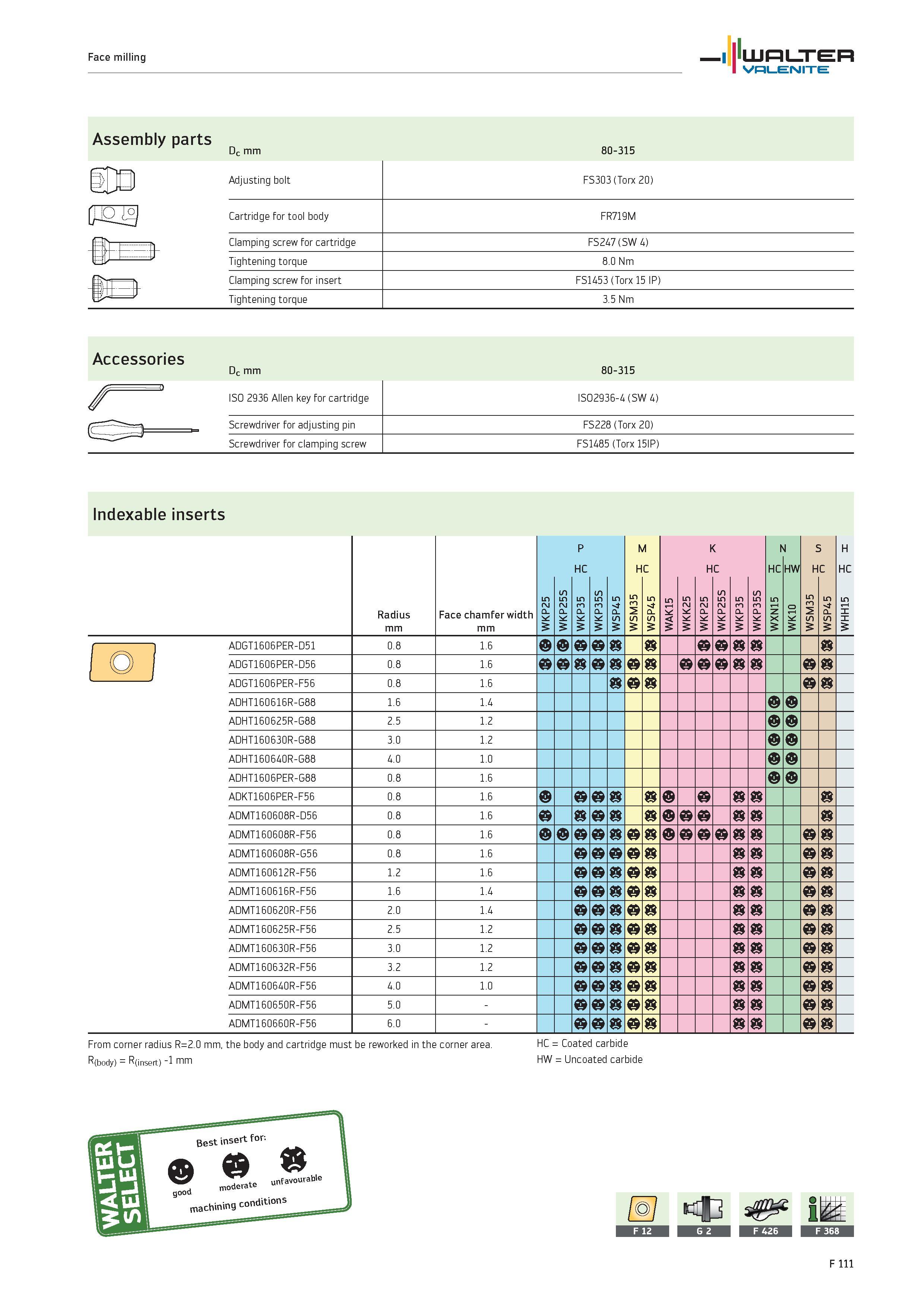

WALTER Valenite Face milling Accessories Dc mm 80-315 ISO 2936 Allen key for cartridge ISO2936-4 (SW 4) Screwdriver for adjusting pin FS228 (Torx 20) Screwdriver for clamping screw FS1485 (Torx 15IP) Indexable inserts Radius mm Face chamfer width mm 5 P K W to 5 P K W P HC 5 m P K W WKP35S 5 P S W M H 5 m 2 S W WSP45 n WAK15 WKK25 K H 5 P K WKP25S n WKP35 WKP35S HC 5 1-H z X W HW o 1 K 5 < H 5 m 2 S W WSP45 n H HC 5 1-H I H W 1 ADGT1606PER-D51 0.8 1.6 c J (< J) j ADGT1606PER-D56 0.8 1.6 c ADGT1606PER-F56 0.8 1.6 c ADHT160616R-G88 1.6 1.4 ADHT160625R-G88 2.5 1.2 ADHT160630R-G88 3.0 1.2 ADHT160640R-G88 4.0 1.0 ADHT1606PER-G88 0.8 1.6 ADKT1606PER-F56 0.8 1.6 a ADMT160608R-D56 0.8 1.6 c ADMT160608R-F56 0.8 1.6 ADMT160608R-G56 0.8 1.6 ADMT160612R-F56 1.2 1.6 c ADMT160616R-F56 1.6 1.4 c ADMT160620R-F56 2.0 1.4 c ADMT160625R-F56 2.5 1.2 c ADMT160630R-F56 3.0 1.2 c ADMT160632R-F56 3.2 1.2 c ADMT160640R-F56 4.0 1.0 c ADMT160650R-F56 5.0 c ADMT160660R-F56 6.0 c From corner radius R=2.0 mm, the body and cartridge must be reworked in the corner area. HC Coated carbide R(body) R(insert) -1 mm HW Uncoated carbide
