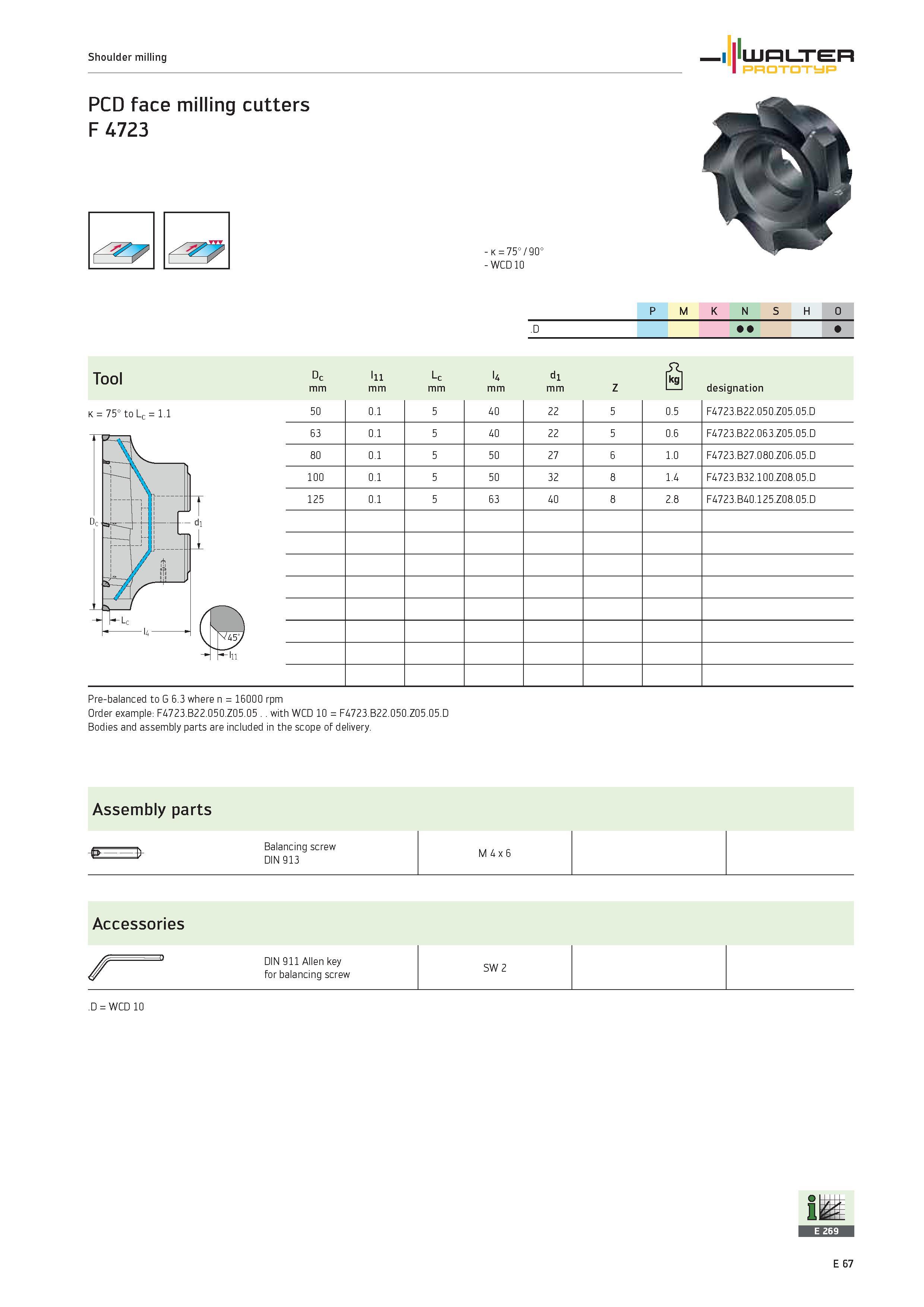

Shoulder milling PCD face milling cutters F 4723 -k=75°/90° WCD 10 WALTER Prototyp k 75° to Lc 1.1 P M K N S H O .D Tool Dc 111 Lc U dl Si mm Z L rJ designation 50 0.1 5 40 22 5 0.5 F4723.B22.050.Z05.05.D 63 0.1 5 40 22 5 0.6 F4723.B22.063.Z05.05.D 80 0.1 5 50 27 6 1.0 F4723.B27.080.Z06.05.D 100 0.1 5 50 32 8 1.4 F4723.B32.100.Z08.05.D 125 0.1 5 63 40 8 2.8 F4723.B40.125.Z08.05.D Pre-balanced to G 6.3 where n 16000 rpm Order example F4723.B22.050.Z05.05 with WCD 10 F4723.B22.050.Z05.05.D Bodies and assembly parts are included in the scope of delivery. Assembly parts fr Balancing screw DIN 913 M 4 x 6 Accessories Z5 DIN 911 Allen key for balancing screw .D WCD 10 E 67
