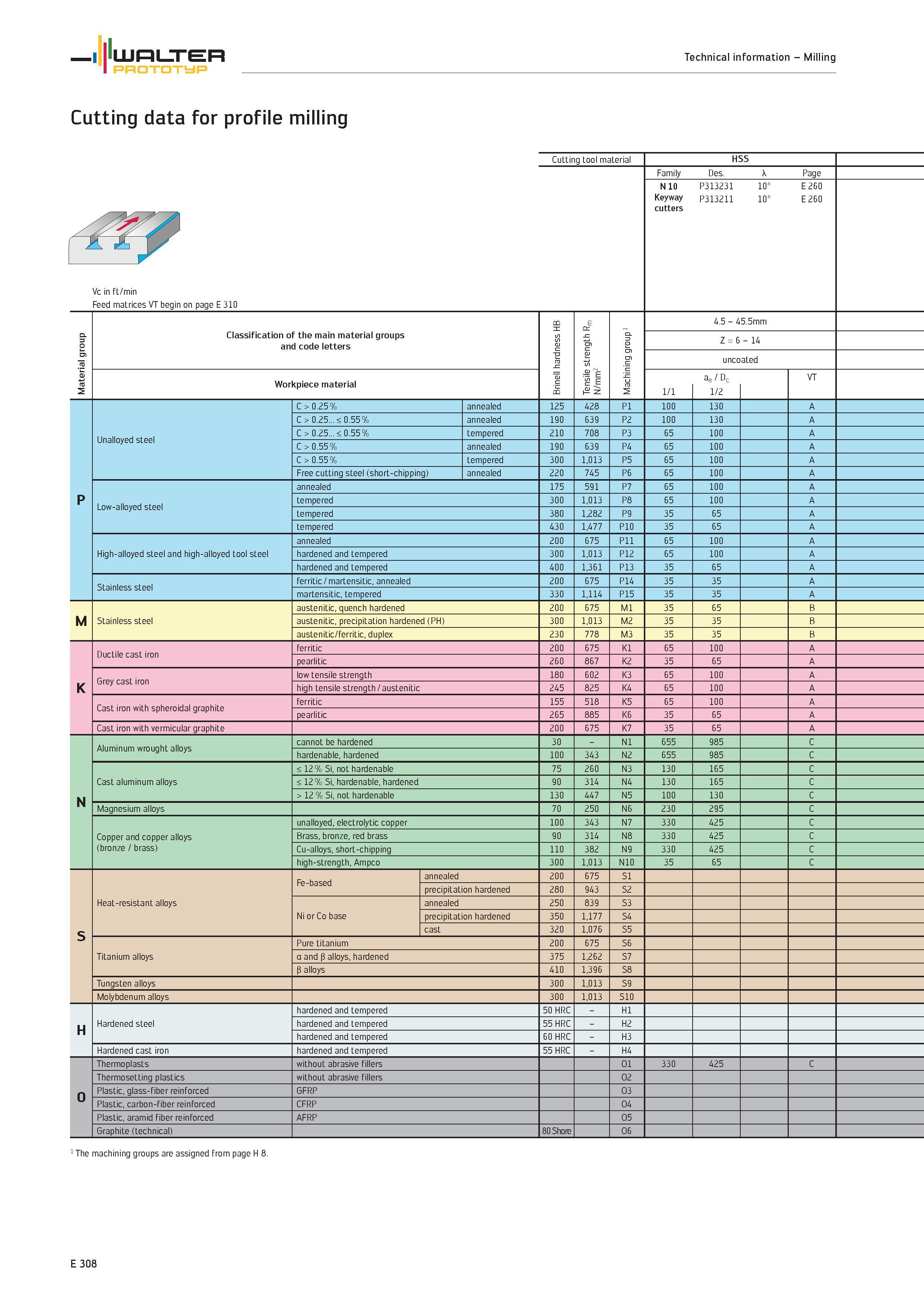

WALTER Technical information Milling Prototyp Cutting data for profile milling Cutting tool material HSS Family Des. Page N10 P313231 10° E260 Keyway P313211 10° E 260 cutters Vc in ft/min Feed matrices VT begin on page E 310 Material group Classification of the main material groups and code letters Brinell hardness HB Tensile strength Rm N/mm2 Machining group 1 4.5 45.5mm Z 6 14 uncoated Workpiece material 1/1 VT p Unalloyed steel C > 0.25 % annealed 125 428 P1 100 130 A C > 0.25 < 0.55 % annealed 190 639 P2 100 130 A C > 0.25 < 0.55 % tempered 210 708 P3 65 100 A C > 0.55 % annealed 190 639 P4 65 100 A C > 0.55 % tempered 300 1,013 P5 65 100 A Free cutting steel (short-chipping) annealed 220 745 P6 65 100 A Low-alloyed steel annealed 175 591 P7 65 100 A tempered 300 1,013 P8 65 100 A tempered 380 1,282 P9 35 65 A tempered 430 1,477 P10 35 65 A High-alloyed steel and high-alloyed tool steel annealed 200 675 P11 65 100 A hardened and tempered 300 1,013 P12 65 100 A hardened and tempered 400 1,361 P13 35 65 A Stainless steel ferritic / martensitic, annealed 200 675 P14 35 35 A martensitic, tempered 330 1,114 P15 35 35 A M Stainless steel austenitic, quench hardened 200 675 M1 35 65 B austenitic, precipitation hardened (PH) 300 1,013 M2 35 35 B austenitic/ferritic, duplex 230 778 M3 35 35 B K Ductile cast iron ferritic 200 675 K1 65 100 A pearlitic 260 867 K2 35 65 A Grey cast iron low tensile strength 180 602 K3 65 100 A high tensile strength / austenitic 245 825 K4 65 100 A Cast iron with spheroidal graphite ferritic 155 518 K5 65 100 A pearlitic 265 885 K6 35 65 A Cast iron with vermicular graphite 200 675 K7 35 65 A N Aluminum wrought alloys cannot be hardened 30 N1 655 985 C hardenable, hardened 100 343 N2 655 985 C Cast aluminum alloys < 12 % Si, not hardenable 75 260 N3 130 165 C < 12 % Si, hardenable, hardened 90 314 N4 130 165 C > 12 % Si, not hardenable 130 447 N5 100 130 C Magnesium alloys 70 250 N6 230 295 C Copper and copper alloys (bronze / brass) unalloyed, electrolytic copper 100 343 N7 330 425 C Brass, bronze, red brass 90 4 31 N8 330 425 C Cu-alloys, short-chipping 110 382 N9 330 425 C high-strength, Ampco 300 1,013 N10 35 65 C S Heat-resistant alloys Fe-based annealed 200 675 S1 precipitation hardened 280 943 S2 Ni or Co base annealed 250 839 S3 precipitation hardened 350 1,177 S4 cast 320 1,076 S5 Titanium alloys Pure titanium 200 675 S6 a and p alloys, hardened 375 1,262 S7 P alloys 410 1,396 S8 Tungsten alloys 300 1,013 S9 Molybdenum alloys 300 1,013 S10 H Hardened steel hardened and tempered 50 HRC H1 hardened and tempered 55 HRC H2 hardened and tempered 60 HRC H3 Hardened cast iron hardened and tempered 55 HRC H4 O Thermoplasts without abrasive fillers O1 330 425 C Thermosetting plastics without abrasive fillers O2 Plastic, glass-fiber reinforced GFRP O3 Plastic, carbon-fiber reinforced CFRP O4 Plastic, aramid fiber reinforced AFRP O5 Graphite (technical) 80 Shore O6 1 The machining groups are assigned from page H 8. E 308
