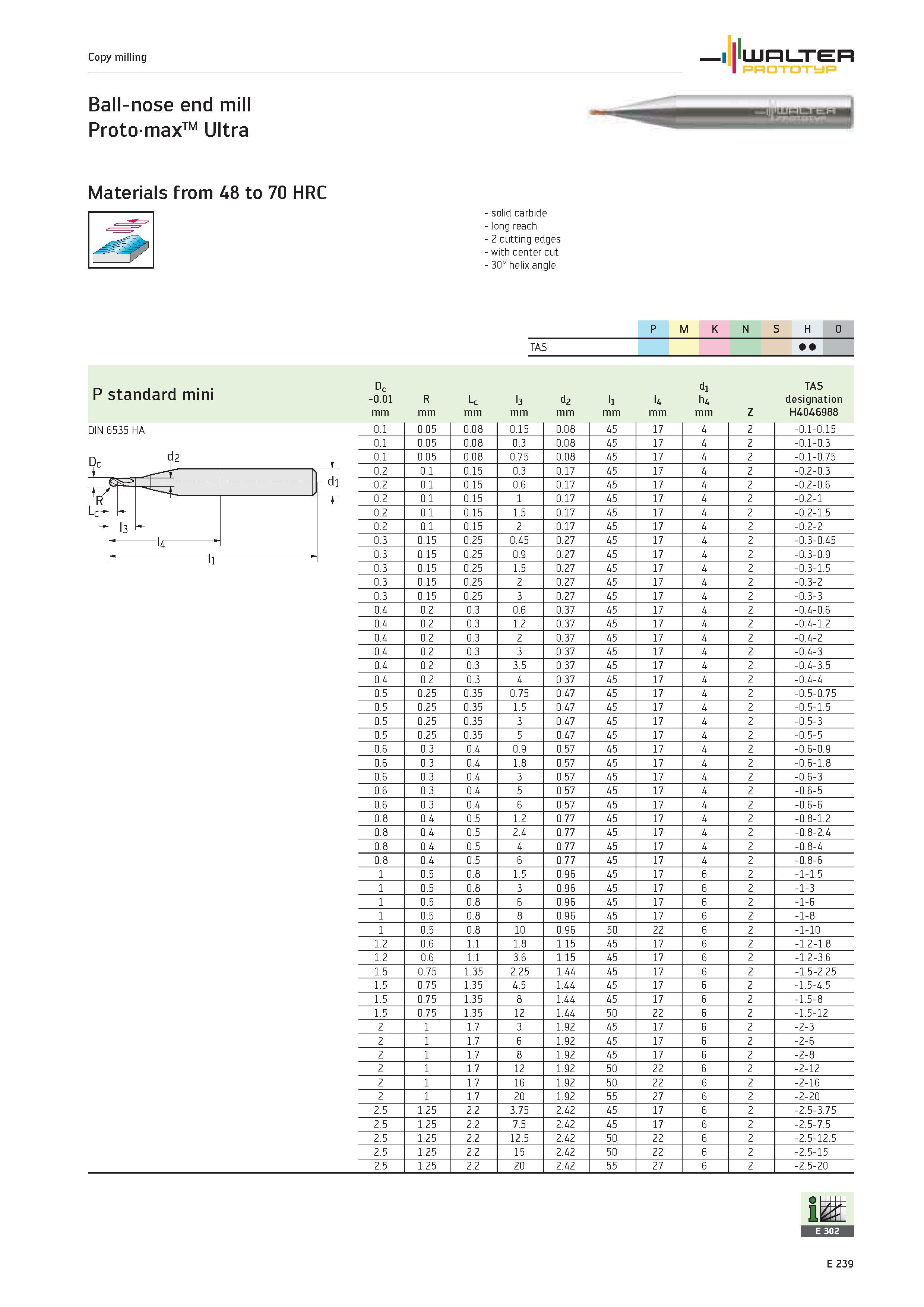

Copy milling Ball-nose end mill Protomax Ultra .1 iLum n ER PROTOTYP Materials from 48 to 70 HRC solid carbide long reach 2 cutting edges with center cut 30° helix angle 1 P M K N S H 0 TAS 1 P standard mini Dc -0.01 R Lc l3 d2 ll U dl h4 TAS designation mm Z H4046988 DIN 6535 HA Dc d2 di 0.1 0.05 0.08 0.15 0.08 45 17 4 2 -0.1-0.15 0.1 0.05 0.08 0.3 0.08 45 17 4 2 -0.1-0.3 0.1 0.05 0.08 0.75 0.08 45 17 4 2 -0.1-0.75 0.2 0.1 0.15 0.3 0.17 45 17 4 2 -0.2-0.3 0.2 0.1 0.15 0.6 0.17 45 17 4 2 -0.2-0.6 0.2 0.1 0.15 1 0.17 45 17 4 2 -0.2-1 0.2 0.1 0.15 1.5 0.17 45 17 4 2 -0.2-1.5 0.2 0.1 0.15 2 0.17 45 17 4 2 -0.2-2 0.3 0.15 0.25 0.45 0.27 45 17 4 2 -0.3-0.45 0.3 0.15 0.25 0.9 0.27 45 17 4 2 -0.3-0.9 0.3 0.15 0.25 1.5 0.27 45 17 4 2 -0.3-1.5 0.3 0.15 0.25 2 0.27 45 17 4 2 -0.3-2 0.3 0.15 0.25 3 0.27 45 17 4 2 -0.3-3 0.4 0.2 0.3 0.6 0.37 45 17 4 2 -0.4-0.6 0.4 0.2 0.3 1.2 0.37 45 17 4 2 -0.4-1.2 0.4 0.2 0.3 2 0.37 45 17 4 2 -0.4-2 0.4 0.2 0.3 3 0.37 45 17 4 2 -0.4-3 0.4 0.2 0.3 3.5 0.37 45 17 4 2 -0.4-3.5 0.4 0.2 0.3 4 0.37 45 17 4 2 -0.4-4 0.5 0.25 0.35 0.75 0.47 45 17 4 2 -0.5-0.75 0.5 0.25 0.35 1.5 0.47 45 17 4 2 -0.5-1.5 0.5 0.25 0.35 3 0.47 45 17 4 2 -0.5-3 0.5 0.25 0.35 5 0.47 45 17 4 2 -0.5-5 0.6 0.3 0.4 0.9 0.57 45 17 4 2 -0.6-0.9 0.6 0.3 0.4 1.8 0.57 45 17 4 2 -0.6-1.8 0.6 0.3 0.4 3 0.57 45 17 4 2 -0.6-3 0.6 0.3 0.4 5 0.57 45 17 4 2 -0.6-5 0.6 0.3 0.4 6 0.57 45 17 4 2 -0.6-6 0.8 0.4 0.5 1.2 0.77 45 17 4 2 -0.8-1.2 0.8 0.4 0.5 2.4 0.77 45 17 4 2 -0.8-2.4 0.8 0.4 0.5 4 0.77 45 17 4 2 -0.8-4 0.8 0.4 0.5 6 0.77 45 17 4 2 -0.8-6 1 0.5 0.8 1.5 0.96 45 17 6 2 -1-1.5 1 0.5 0.8 3 0.96 45 17 6 2 -1-3 1 0.5 0.8 6 0.96 45 17 6 2 -1-6 1 0.5 0.8 8 0.96 45 17 6 2 -1-8 1 0.5 0.8 10 0.96 50 6 2 -1-10 1.2 0.6 1.1 1.8 1.15 45 17 6 2 -1.2-1.8 1.2 0.6 1.1 3.6 1.15 45 17 6 2 -1.2-3.6 1.5 0.75 1.35 2.25 1.44 45 17 6 2 -1.5-2.25 1.5 0.75 1.35 4.5 1.44 45 17 6 2 -1.5-4.5 1.5 0.75 1.35 8 1.44 45 17 6 2 -1.5-8 1.5 0.75 1.35 12 1.44 50 6 2 -1.5-12 2 1 1.7 3 1.92 45 17 6 2 -2-3 2 1 1.7 6 1.92 45 17 6 2 -2-6 2 1 1.7 8 1.92 45 17 6 2 -2-8 2 1 1.7 12 1.92 50 22 6 2 -2-12 2 1 1.7 16 1.92 50 22 6 2 -2-16 2 1 1.7 20 1.92 55 27 6 2 -2-20 2.5 1.25 2.2 3.75 2.42 45 17 6 2 -2.5-3.75 2.5 1.25 2.2 7.5 2.42 45 17 6 2 -2.5-75 2.5 1.25 2.2 12.5 2.42 50 22 6 2 -2.5-12.5 2.5 1.25 2.2 15 2.42 50 22 6 2 -2.5-15 2.5 1.25 2.2 20 2.42 55 27 6 2 -2.5-20 c E 239
