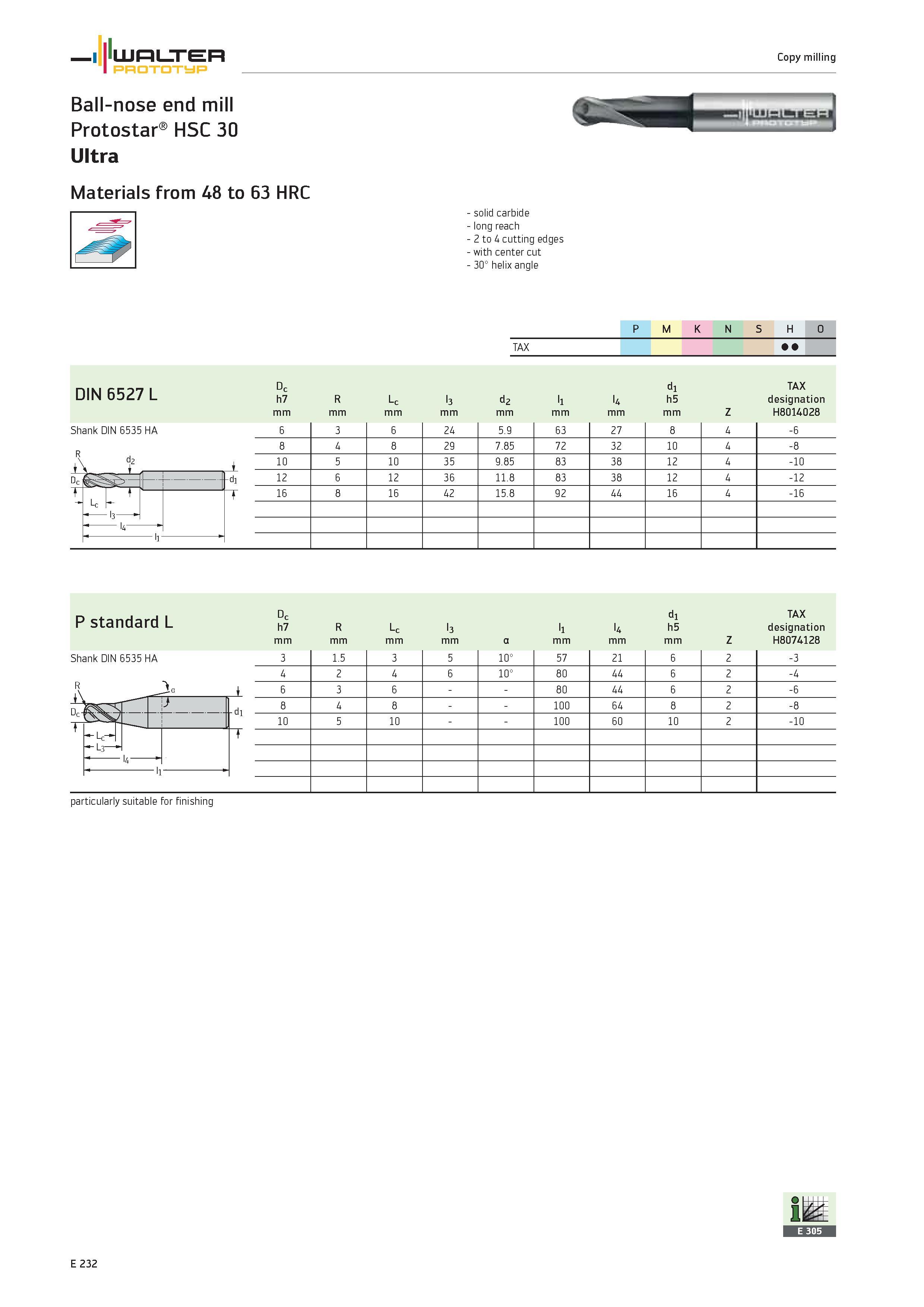

WALTER PROTOTYP Copy milling Ball-nose end mill Protostar HSC 30 Ultra Materials from 48 to 63 HRC solid carbide long reach 2 to 4 cutting edges with center cut 30° helix angle Shank DIN 6535 HA R A 1 P M K N S H 0 TAX 1 DIN 6527 L Q .C R Lc l3 d2 ll U dl h5 TAX designation mm Z H8014028 6 3 6 24 5.9 63 27 8 4 -6 8 4 8 29 7.85 72 32 10 4 -8 10 5 10 35 9.85 83 38 12 4 -10 12 6 12 36 11.8 83 38 12 4 -12 16 8 16 42 15.8 92 44 16 4 -16 P standard L Dc h7 R Lc l3 ll U dl h5 TAX designation mm a mm Z H8074128 Shank DIN 6535 HA ) -di -Lc- t l4 -ll 3 1.5 3 5 10° 57 21 6 2 -3 4 2 4 6 10° 80 44 6 2 -4 6 3 6 80 44 6 2 -6 8 4 8 100 64 8 2 -8 10 5 10 100 60 10 2 -10 particularly suitable for finishing R E 232
