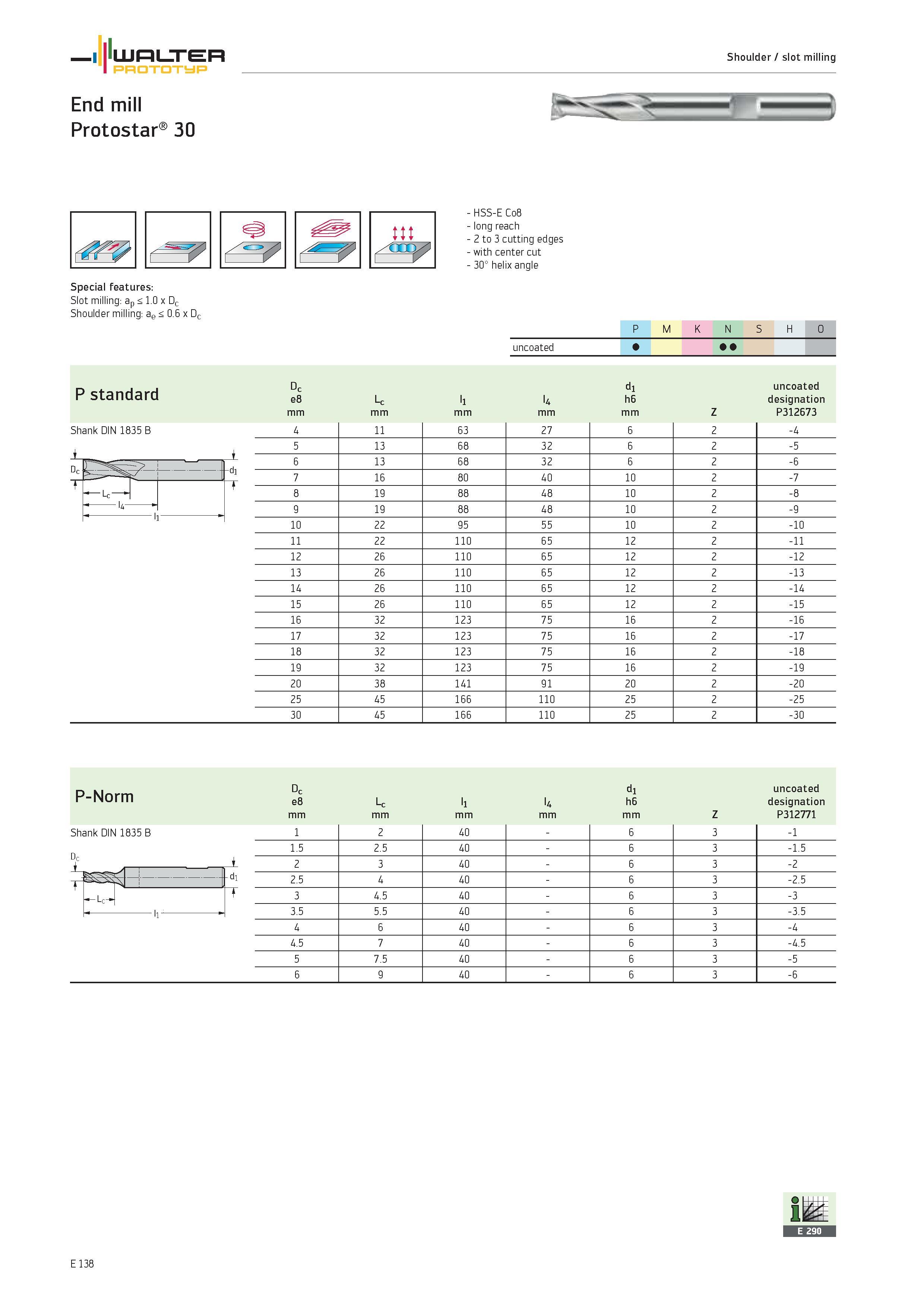

WALTER PROTOTYP Shoulder / slot milling End mill Protostar 30 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.6 x Dc Shank DIN 1835 B HSS-E Co8 long reach 2 to 3 cutting edges with center cut 30° helix angle 1 P M K N S H O uncoated P standard eD 03 O Lc ll U dl h6 uncoated designation mm Z P312673 4 11 63 27 6 2 -4 5 13 68 32 6 2 -5 6 13 68 32 6 2 -6 7 16 80 40 10 2 -7 8 19 88 48 10 2 -8 9 19 88 48 10 2 -9 10 22 95 55 10 2 -10 11 22 110 65 12 2 -11 12 26 110 65 12 2 -12 13 26 110 65 12 2 -13 14 26 110 65 12 2 -14 15 26 110 65 12 2 -15 16 32 123 75 16 2 -16 17 32 123 75 16 2 -17 18 32 123 75 16 2 -18 19 32 123 75 16 2 -19 20 38 141 91 20 2 -20 25 45 166 110 25 2 -25 30 45 166 110 25 2 -30 P-Norm Dc e8 Lc li U di h6 uncoated designation mm Z P312771 Shank DIN 1835 B Dc 1 2 40 6 3 -1 1.5 2.5 40 6 3 -1.5 2 3 40 6 3 -2 2.5 4 40 6 3 -2.5 3 4.5 40 6 3 -3 3.5 5.5 40 6 3 -3.5 4 6 40 6 3 -4 4.5 7 40 6 3 -4.5 5 7.5 40 6 3 -5 6 9 40 6 3 -6 O I fl E 138
