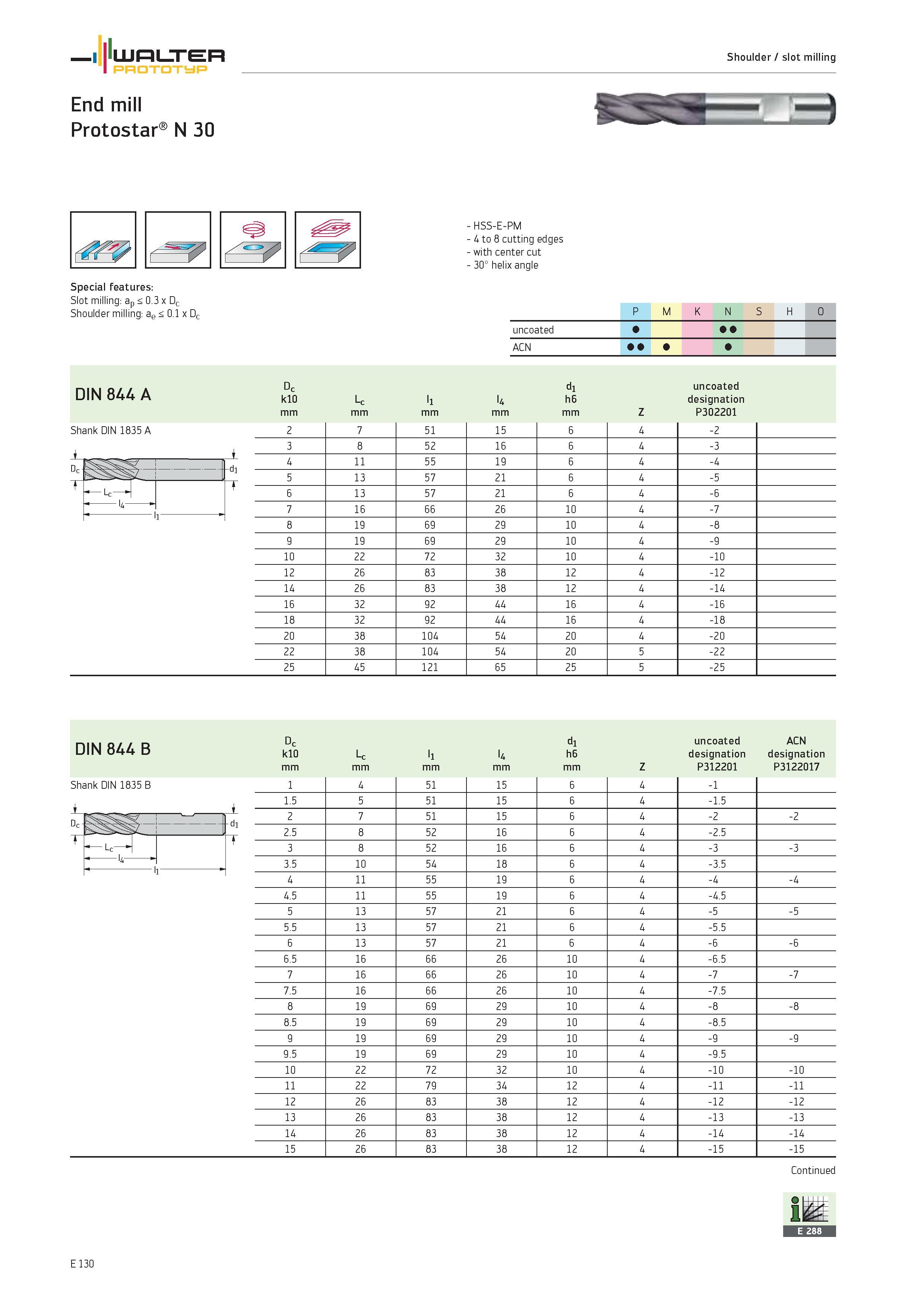

WALTER Prototyp End mill Protostar N 30 Shoulder / slot milling Special features Slot milling ap < 0.3 x Dc Shoulder milling ae < 0.1 x Dc HSS-E-PM 4 to 8 cutting edges with center cut 30° helix angle P M K N S H O uncoated ACN DIN 844 A k10 d1 h6 uncoated designation Shank DIN 1835 A 2 7 51 15 6 4 -2 J 3 8 52 16 6 4 -3 nr di 4 11 55 19 6 4 -4 Lc ) T 5 13 57 21 6 4 -5 1 6 13 57 21 6 4 -6 7 16 66 26 10 4 -7 8 19 69 29 10 4 -8 9 19 69 29 10 4 -9 10 22 72 32 10 4 -10 12 26 83 38 12 4 -12 14 26 83 38 12 4 -14 16 32 92 44 16 4 -16 18 32 92 44 16 4 -18 20 38 104 54 20 4 -20 22 38 104 54 20 5 -22 25 45 121 65 25 5 -25 D c L c DIN 844 B Dc k10 mm Lc mm l1 mm l4 mm d1 h6 mm Z uncoated designation P312201 ACN designation P3122017 Shank DIN 1835 B 1 4 51 15 6 4 -1 1.5 5 51 15 6 4 -1.5 I 2 7 51 15 6 4 nr di 2.5 8 52 16 6 4 -2.5 Lr 3 8 52 16 6 4 -3 -3 3.5 10 54 18 6 4 -3.5 4 11 55 19 6 4 -4 -4 4.5 11 55 19 6 4 -4.5 5 13 57 21 6 4 -5 -5 5.5 13 57 21 6 4 -5.5 6 13 57 21 6 4 -6 -6 6.5 16 66 26 10 4 -6.5 7 16 66 26 10 4 -7 -7 7.5 16 66 26 10 4 -7.5 8 19 69 29 10 4 -8 -8 8.5 19 69 29 10 4 -8.5 9 19 69 29 10 4 -9 -9 9.5 19 69 29 10 4 -9.5 10 22 72 32 10 4 -10 -10 11 22 79 34 12 4 -11 -11 12 26 83 38 12 4 -12 -12 13 26 83 38 12 4 -13 -13 14 26 83 38 12 4 -14 -14 15 26 83 38 12 4 -15 -15 E 130
