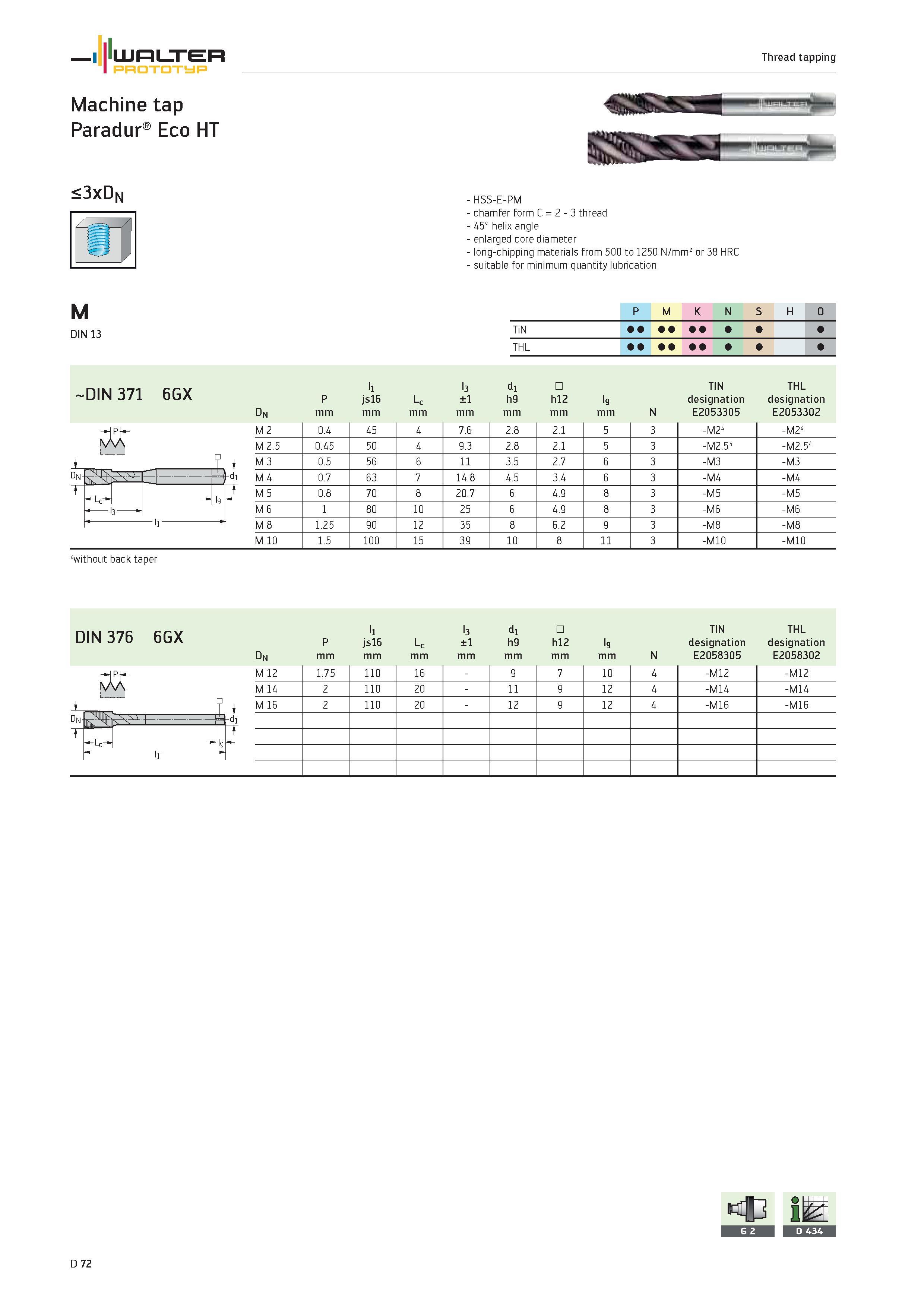

WALTER Prototyp Thread tapping Machine tap Paradur Eco HT <3xDN HSS-E-PM chamfer form C 2 3 thread 45° helix angle enlarged core diameter long-chipping materials from 500 to 1250 N/mm2 or 38 HRC suitable for minimum quantity lubrication M DIN 13 1 P M K N S H O TiN l THL l DIN 371 6GX dn P mm ll js16 mm Lc mm l3 ±1 mm d1 h9 mm h12 mm l9 mm N TIN designation E2053305 THL designation E2053302 A M 2 0.4 45 4 7.6 2.8 2.1 5 3 -M24 -M24 M 2.5 0.45 50 4 9.3 2.8 2.1 5 3 -M2.54 -M2.54 1 M 3 0.5 56 6 11 3.5 2.7 6 3 -M3 -M3 “n 1 i-di M 4 0.7 63 7 14.8 4.5 3.4 6 3 -M4 -M4 t l9 t M 5 0.8 70 8 20.7 6 4.9 8 3 -M5 -M5 3 M 6 1 80 10 25 6 4.9 8 3 -M6 -M6 ll M 8 1.25 90 12 35 8 6.2 9 3 -M8 -M8 M 10 1.5 100 15 39 10 8 11 3 -M10 -M10 4without back taper DIN 376 6GX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 TIN designation THL designation dn mm N E2058305 E2058302 “NE °4 di M 12 1.75 110 16 9 7 10 4 -M12 -M12 M 14 2 110 20 11 9 12 4 -M14 -M14 M 16 2 110 20 12 9 12 4 -M16 -M16 Lc D 72 iH
