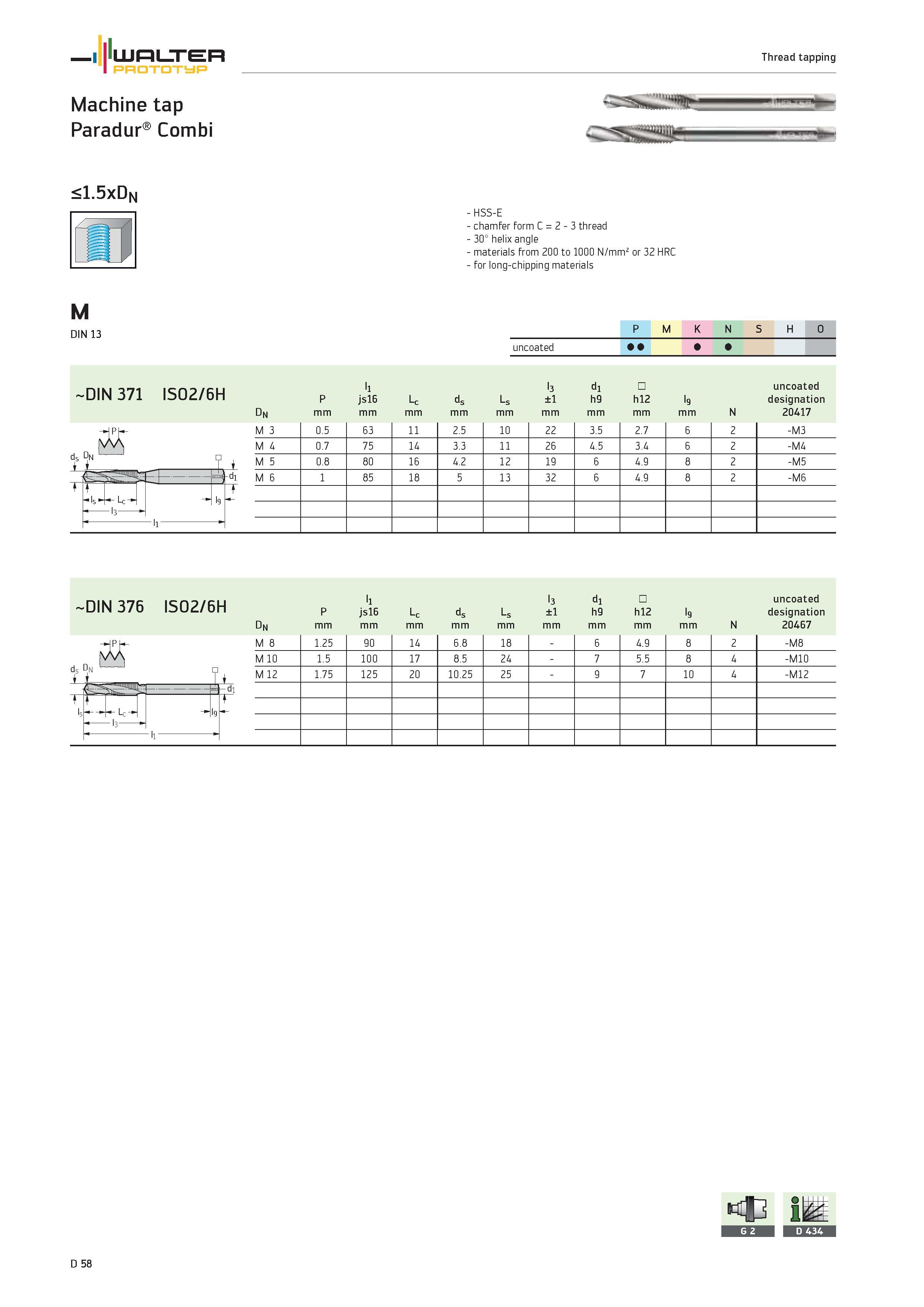

WALTER Prototyp Thread tapping Machine tap Paradur Combi <1.5xDn HSS-E chamfer form C 2 3 thread 30° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 P M K N S H O uncoated 1 DIN 371 ISO2/6H P l1 js16 Lc ds Ls l3 ±1 d1 h9 h12 l9 uncoated designation Dn mm N 20417 M 3 0.5 63 11 2.5 10 22 3.5 2.7 6 2 -M3 M 4 0.7 75 14 3.3 11 26 4.5 3.4 6 2 -M4 M 5 0.8 80 16 4.2 12 19 6 4.9 8 2 -M5 M 6 1 85 18 5 13 32 6 4.9 8 2 -M6 DIN 376 ISO2/6H Dn P mm l1 js16 mm Lc mm ds mm Ls mm 31 m -+'E 19 m dhm h12 mm l9 mm N uncoated designation 20467 ds L z i M 8 1.25 90 14 6.8 18 6 4.9 8 2 -M8 M 10 1.5 100 17 8.5 24 7 5.5 8 4 -M10 Un M 12 1.75 125 20 10.25 25 9 7 10 4 -M12 -di t l- 1 -1J lg T -ll D 58
