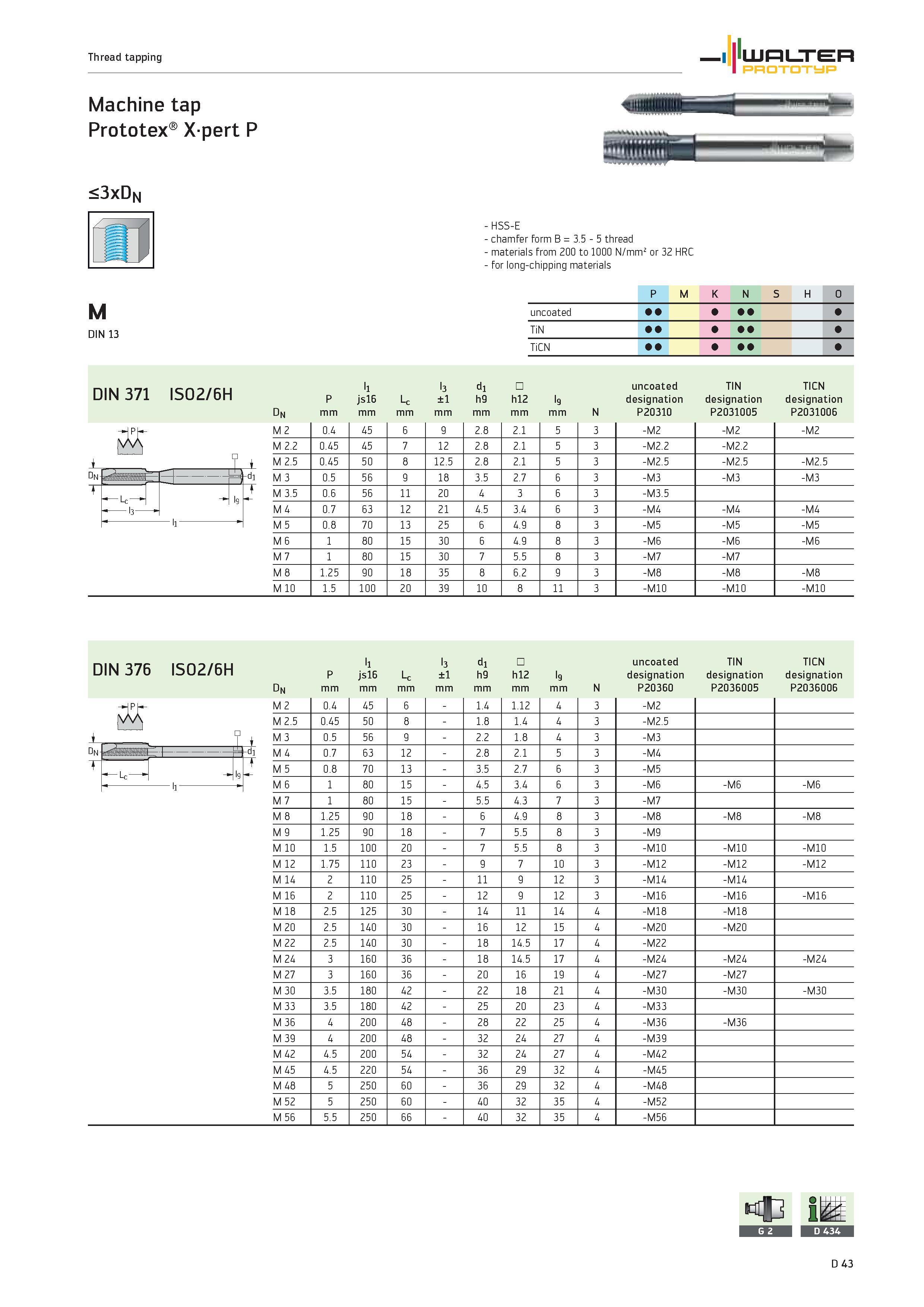

Thread tapping WALTER PROTOTYP Machine tap Prototex Xpert P <3xDN M DIN 13 DIN 371 ISO2/6H DIN 376 ISO2/6H HSS-E chamfer form B 3.5 5 thread materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials P M K N S H O uncoated TiN TiCN ll l3 d1 uncoated TIN TICN P js16 Lc ±1 h9 h12 l9 designation designation designation dn mm N P20310 P2031005 P2031006 M 2 0.4 45 6 9 2.8 2.1 5 3 -M2 -M2 -M2 M 2.2 0.45 45 7 12 2.8 2.1 5 3 -M2.2 -M2.2 M 2.5 0.45 50 8 12.5 2.8 2.1 5 3 -M2.5 -M2.5 -M2.5 M 3 0.5 56 9 18 3.5 2.7 6 3 -M3 -M3 -M3 M 3.5 0.6 56 11 20 4 3 6 3 -M3.5 M 4 0.7 63 12 21 4.5 3.4 6 3 -M4 -M4 -M4 M 5 0.8 70 13 25 6 4.9 8 3 -M5 -M5 -M5 M 6 1 80 15 30 6 4.9 8 3 -M6 -M6 -M6 M 7 1 80 15 30 7 5.5 8 3 -M7 -M7 M 8 1.25 90 18 35 8 6.2 9 3 -M8 -M8 -M8 M 10 1.5 100 20 39 10 8 11 3 -M10 -M10 -M10 l1 l3 d1 uncoated TIN TICN P js16 Lc ±1 h9 h12 l9 designation designation designation dn mm N P20360 P2036005 P2036006 M 2 0.4 45 6 1.4 1.12 4 3 -M2 M 2.5 0.45 50 8 1.8 1.4 4 3 -M2.5 M 3 0.5 56 9 2.2 1.8 4 3 -M3 M 4 0.7 63 12 2.8 2.1 5 3 -M4 M 5 0.8 70 13 3.5 2.7 6 3 -M5 M 6 1 80 15 4.5 3.4 6 3 -M6 -M6 -M6 M 7 1 80 15 5.5 4.3 7 3 -M7 M 8 1.25 90 18 6 4.9 8 3 -M8 -M8 -M8 M 9 1.25 90 18 7 5.5 8 3 -M9 M 10 1.5 100 20 7 5.5 8 3 -M10 -M10 -M10 M 12 1.75 110 23 9 7 10 3 -M12 -M12 -M12 M 14 2 110 25 11 9 12 3 -M14 -M14 M 16 2 110 25 12 9 12 3 -M16 -M16 -M16 M 18 2.5 125 30 14 11 14 4 -M18 -M18 M 20 2.5 140 30 16 12 15 4 -M20 -M20 M 22 2.5 140 30 18 14.5 17 4 -M22 M 24 3 160 36 18 14.5 17 4 -M24 -M24 -M24 M 27 3 160 36 20 16 19 4 -M27 -M27 M 30 3.5 180 42 22 18 21 4 -M30 -M30 -M30 M 33 3.5 180 42 25 20 23 4 -M33 M 36 4 200 48 28 22 25 4 -M36 -M36 M 39 4 200 48 32 24 27 4 -M39 M 42 4.5 200 54 32 24 27 4 -M42 M 45 4.5 220 54 36 29 32 4 -M45 M 48 5 250 60 36 29 32 4 -M48 M 52 5 250 60 40 32 35 4 -M52 M 56 5.5 250 66 40 32 35 4 -M56 D 43
