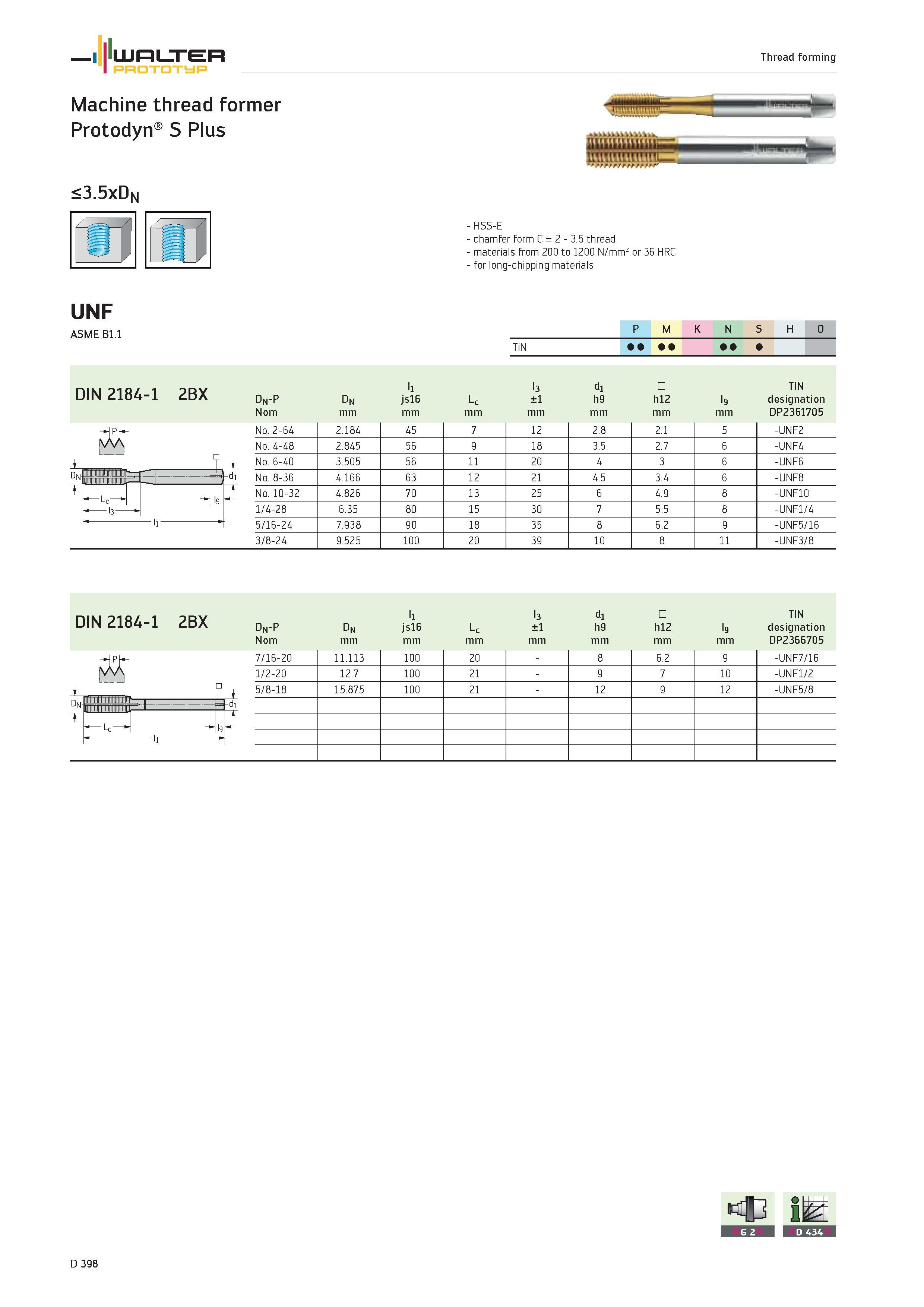

WALTER Prototyp Machine thread former Protodyn S Plus <3.5xDn Thread forming -HSS-E chamfer form C 2 3.5 thread materials from 200 to 1200 N/mm2 or 36 HRC for long-chipping materials UNF ASME Bl.l 1 P M K N S H O TiN 1 DIN 2l84-l 2BX Dn-p Nom Dn mm ll jsl6 mm Lc mm l3 ±l mm dl h9 mm hl2 mm l9 mm TIN designation DP236l705 z No. 2-64 2.184 45 7 12 2.8 2.1 5 -UNF2 No. 4-48 2.845 56 9 18 3.5 2.7 6 -UNF4 l No. 6-40 3.505 56 11 20 4 3 6 -UNF6 Un ililililililililililililililili p pi -di No. 8-36 4.166 63 12 21 4.5 3.4 6 -UNF8 1 Lc T No. 10-32 4.826 70 13 25 6 4.9 8 -UNF10 1/4-28 6.35 80 15 30 7 5.5 8 -UNF1/4 ll 5/16-24 7.938 90 18 35 8 6.2 9 -UNF5/16 3/8-24 9.525 100 20 39 10 8 11 -UNF3/8 DIN 2l84-l 2BX Dn-P Dn ll jsl6 Lc l3 ±l dl h9 hl2 l9 TIN designation Nom mm DP2366705 7/16-20 11.113 100 20 8 6.2 9 -UNF7/16 1/2-20 12.7 100 21 9 7 10 -UNF1/2 5/8-18 15.875 100 21 12 9 12 -UNF5/8 D 398
