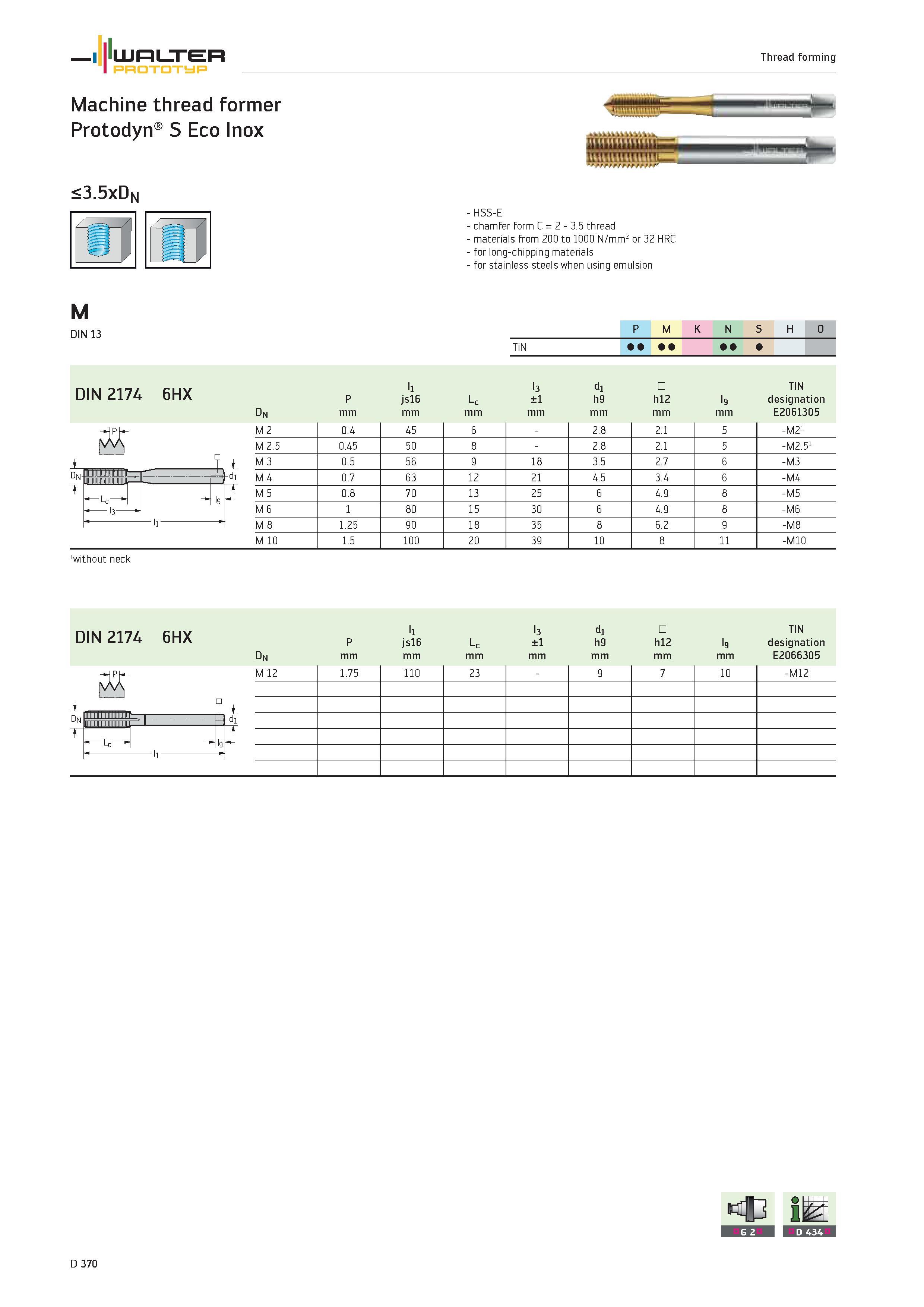

WALTER PROTOTYP Machine thread former Protodyn S Eco Inox <3.5xDn Thread forming -HSS-E chamfer form C 2 3.5 thread materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials for stainless steels when using emulsion M DIN 13 1 P M K N S H O TiN DIN 2174 6HX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 TIN designation Dn mm E2061305 M 2 0.4 45 6 2.8 2.1 5 -M21 M 2.5 0.45 50 8 2.8 2.1 5 -M2.51 M 3 0.5 56 9 18 3.5 2.7 6 -M3 M 4 0.7 63 12 21 4.5 3.4 6 -M4 M 5 0.8 70 13 25 6 4.9 8 -M5 M 6 1 80 15 30 6 4.9 8 -M6 M 8 1.25 90 18 35 8 6.2 9 -M8 M 10 1.5 100 20 39 10 8 11 -M10 1without neck l1 l3 d1 TIN P js16 Lc ±1 h9 h12 l9 designation mm E2066305 M 12 1.75 110 23 9 7 10 -M12 -U.U.U.U.U.U.U- 1 n- -dl t Lc l ll T DIN 2174 6HX d N D 370 iH
