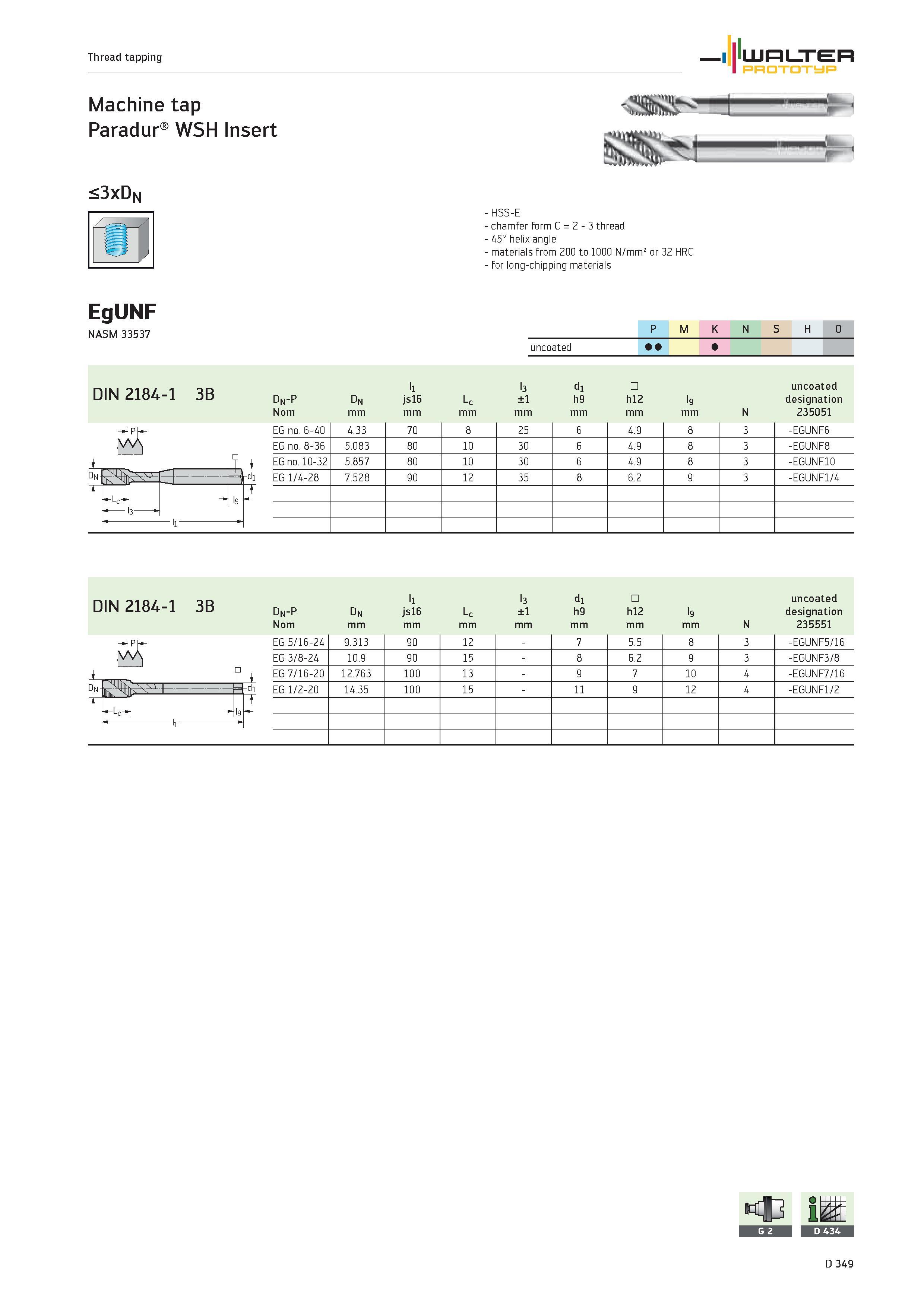

Thread tapping WALTER PROTOTYP Machine tap Paradur WSH Insert <3xDN HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials EgUNF NASM 33537 P M K N S H O uncoated I DIN 2184-1 3B DN-P dN l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Nom mm N 235051 EG no. 6-40 4.33 70 8 25 6 4.9 8 3 -EGUNF6 EG no. 8-36 5.083 80 10 30 6 4.9 8 3 -EGUNF8 EG no. 10-32 5.857 80 10 30 6 4.9 8 3 -EGUNF10 EG 1/4-28 7.528 90 12 35 8 6.2 9 3 -EGUNF1/4 DIN 2184-1 3B DN-P DN l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Nom mm N 235551 EG 5/16-24 9.313 90 12 7 5.5 8 3 -EGUNF5/16 EG 3/8-24 10.9 90 15 8 6.2 9 3 -EGUNF3/8 EG 7/16-20 12.763 100 13 9 7 10 4 -EGUNF7/16 EG 1/2-20 14.35 100 15 11 9 12 4 -EGUNF1/2 O b n D 349
