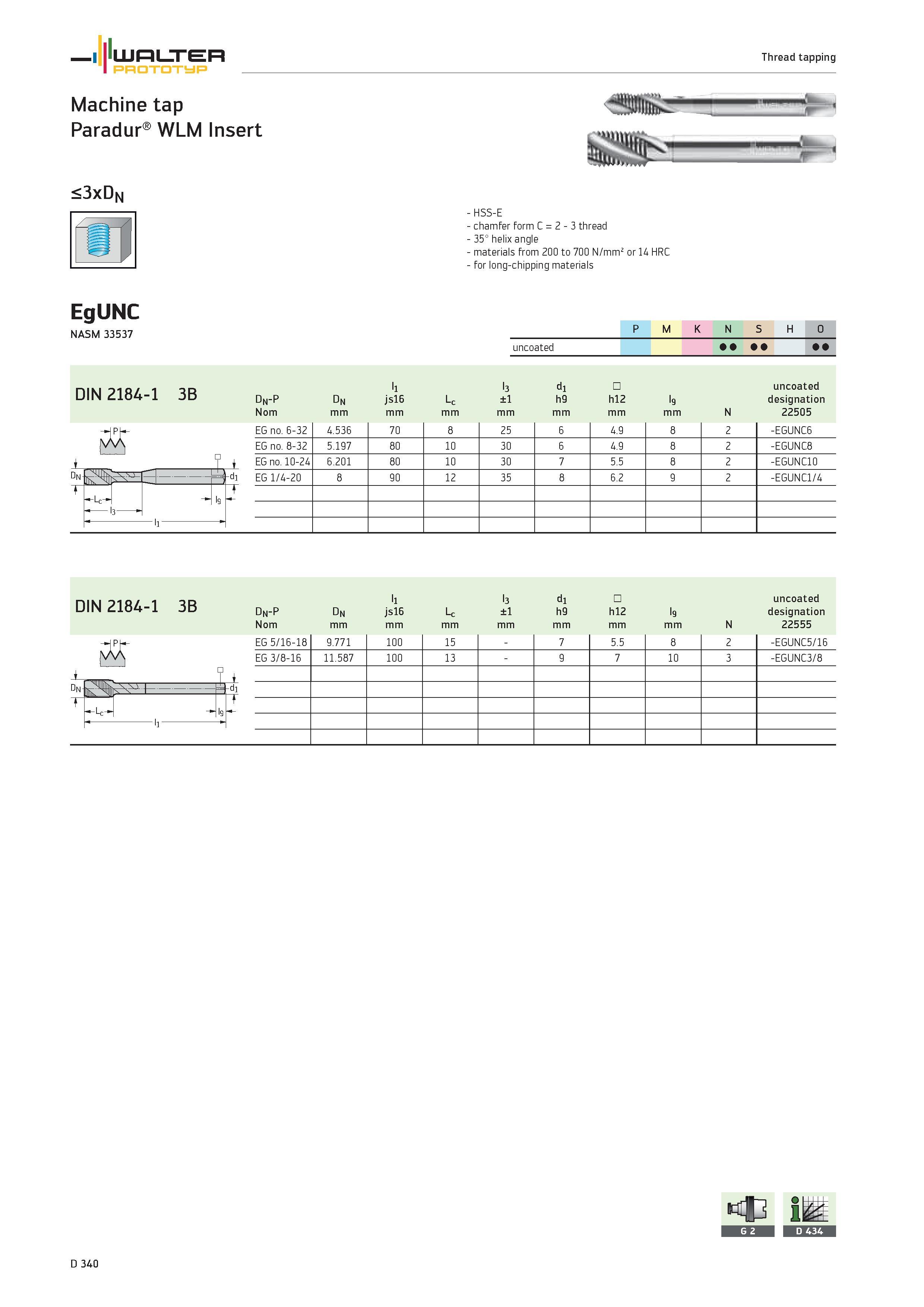

WALTER PROTOTYP Thread tapping Machine tap Paradur WLM Insert <3xDN -HSS-E chamfer form C 2 3 thread 35° helix angle materials from 200 to 700 N/mm2 or 14 HRC for long-chipping materials EgUNC NASM 33537 1 P M K N S H O uncoated DIN 2184 -1 3B ND o z 3 p dn mm l1 js16 mm Lc mm l3 ±1 mm d1 h9 mm h12 mm l9 mm N uncoated designation 22505 i EG no. 6-32 4.536 70 8 25 6 4.9 8 2 -EGUNC6 r a EG no. 8-32 5.197 80 10 30 6 4.9 8 2 -EGUNC8 jL EG no. 10-24 6.201 80 10 30 7 5.5 8 2 -EGUNC10 Dn hdi EG 1/4-20 8 90 12 35 8 6.2 9 2 -EGUNC1/4 1 -.-Lc Is + 3 li DIN 2184-1 3B Dn-P Dn l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Nom mm N 22555 Dn ;ik -m-di EG 5/16-18 9.771 100 15 7 5.5 8 2 -EGUNC5/16 EG 3/8-16 11.587 100 13 9 7 10 3 -EGUNC3/8 Lc D 340
