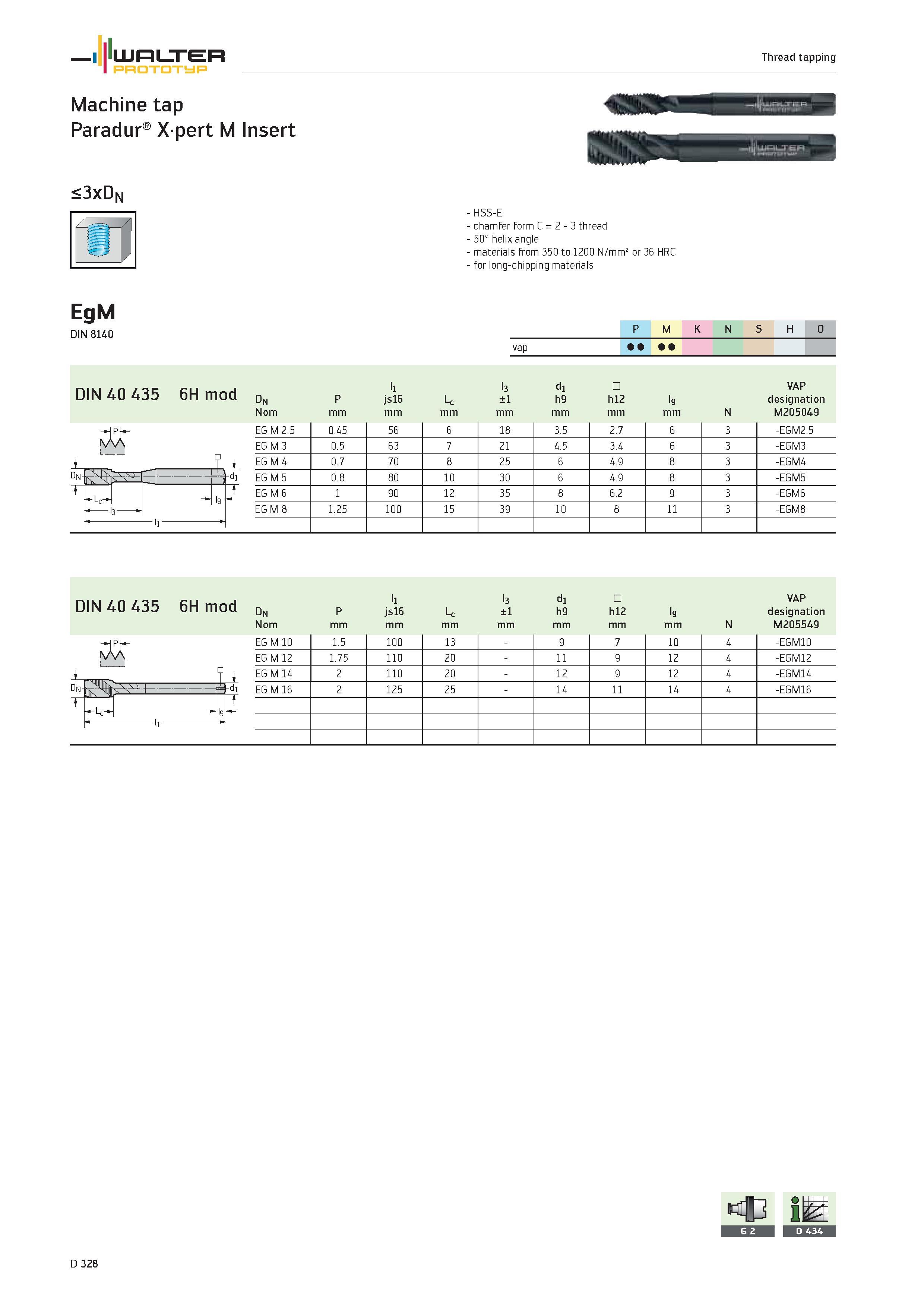

WALTER PROTOTYP Thread tapping Machine tap Paradur Xpert M Insert <3xDN HSS-E chamfer form C 2 3 thread 50° helix angle materials from 350 to 1200 N/mm2 or 36 HRC for long-chipping materials EgM DIN 8140 1 P M K N S H O vap 1 DIN 40 435 6H mod E z o DN P mm ll js16 mm Lc mm l3 ±1 mm di h9 mm h12 mm l9 mm N VAP designation M205049 i EG M 2.5 0.45 56 6 18 3.5 2.7 6 3 -EGM2.5 r A EG M 3 0.5 63 7 21 4.5 3.4 6 3 -EGM3 jL EG M 4 0.7 70 8 25 6 4.9 8 3 -EGM4 Dn hdi EG M 5 0.8 80 10 30 6 4.9 8 3 -EGM5 1 Is + EG M 6 1 90 12 35 8 6.2 9 3 -EGM6 3 EG M 8 1.25 100 15 39 10 8 11 3 -EGM8 li DIN 40 435 6H mod DN P ll js16 Lc l3 ±1 di h9 h12 l9 VAP designation Nom mm N M205549 Dn ;ik -m-di EG M 10 1.5 100 13 9 7 10 4 -EGM10 EG M 12 1.75 110 20 11 9 12 4 -EGM12 EG M 14 2 110 20 12 9 12 4 -EGM14 EG M 16 2 125 25 14 11 14 4 -EGM16 Lc D 328
