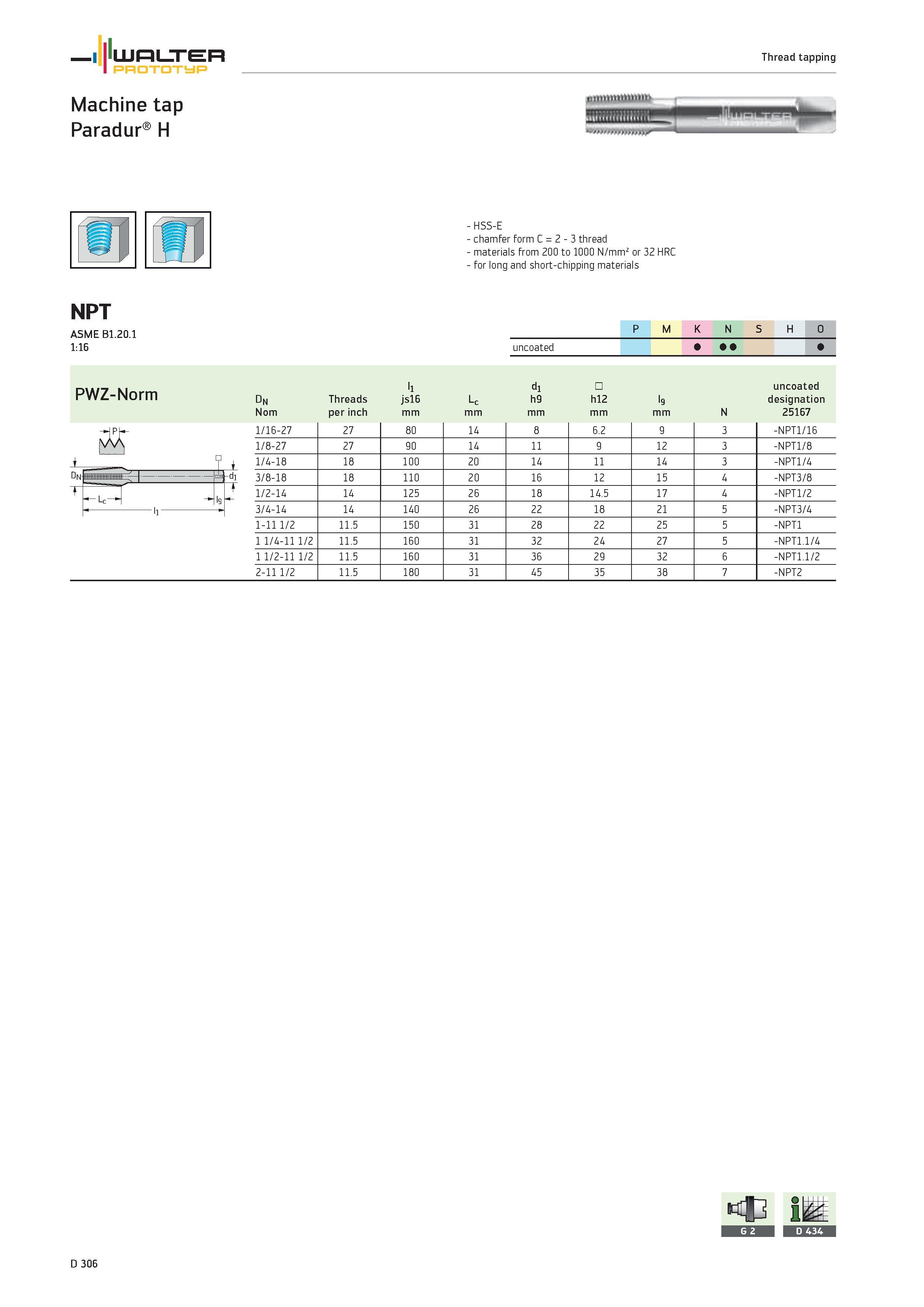

WALTER PROTOTYP Thread tapping Machine tap Paradur H HSS-E chamfer form C 2 3 thread materials from 200 to 1000 N/mm2 or 32 HRC for long and short-chipping materials NPT ASME B1.20.1 1:16 1P M K N S H O uncoated PWZ-Norm Dn Nom Threads per inch l1 js16 mm c mm d1 h9 h12 mm l9 mm uncoated designation 25167 1/16-27 27 80 14 8 6.2 9 3 -NPT1/16 1 1/8-27 27 90 14 11 9 12 3 -NPT1/8 Y 1/4-18 18 100 20 14 11 14 3 -NPT1/4 Dn 1.1.1.1.I1I.M.1.M.I1I1I1IM1I1UI 1 ititttiti ill ii iii iii iii im hi hi hi ii i rd 3/8-18 18 110 20 16 12 15 4 -NPT3/8 1 Lc lc ll 1/2-14 14 125 26 18 14.5 17 4 -NPT1/2 3/4-14 14 140 26 22 18 21 5 -NPT3/4 1-11 1/2 11.5 150 31 28 22 25 5 -NPT1 1 1/4-11 1/2 11.5 160 31 32 24 27 5 -NPT1.1/4 1 1/2-11 1/2 11.5 160 31 36 29 32 6 -NPT1.1/2 2-11 1/2 11.5 180 31 45 35 38 7 -NPT2 N mm D 306
