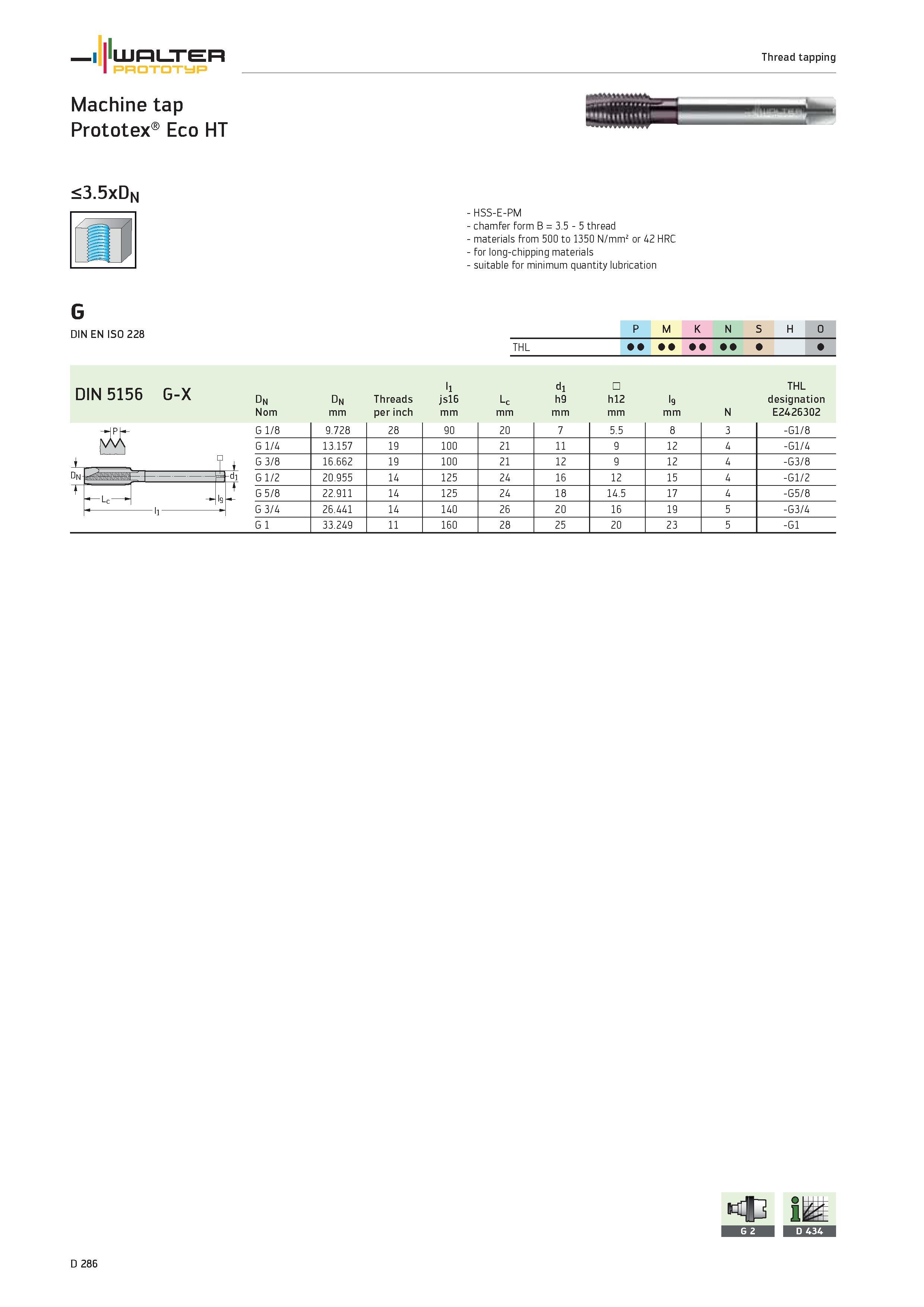

WALTER Prototyp Machine tap Prototex Eco HT Thread tapping <3.5xDn HSS-E-PM chamfer form B 3.5 5 thread materials from 500 to 1350 N/mm2 or 42 HRC for long-chipping materials suitable for minimum quantity lubrication G DIN EN ISO 228 DIN 5156 G-X S' 1 P M K N S H O THL Dn Nom Dn mm Threads per inch ll js16 mm Lc mm C1 h9 mm h12 mm l9 mm N THL designation E2426302 G 1/8 9.728 28 90 20 7 5.5 8 3 -G1/8 G 1/4 13.157 19 100 21 11 9 12 4 -G1/4 G 3/8 16.662 19 100 21 12 9 12 4 -G3/8 G 1/2 20.955 14 125 24 16 12 15 4 -G1/2 G 5/8 22.911 14 125 24 18 14.5 17 4 -G5/8 G 3/4 26.441 14 140 26 20 16 19 5 -G3/4 G 1 33.249 11 160 28 25 20 23 5 -G1 D 286
