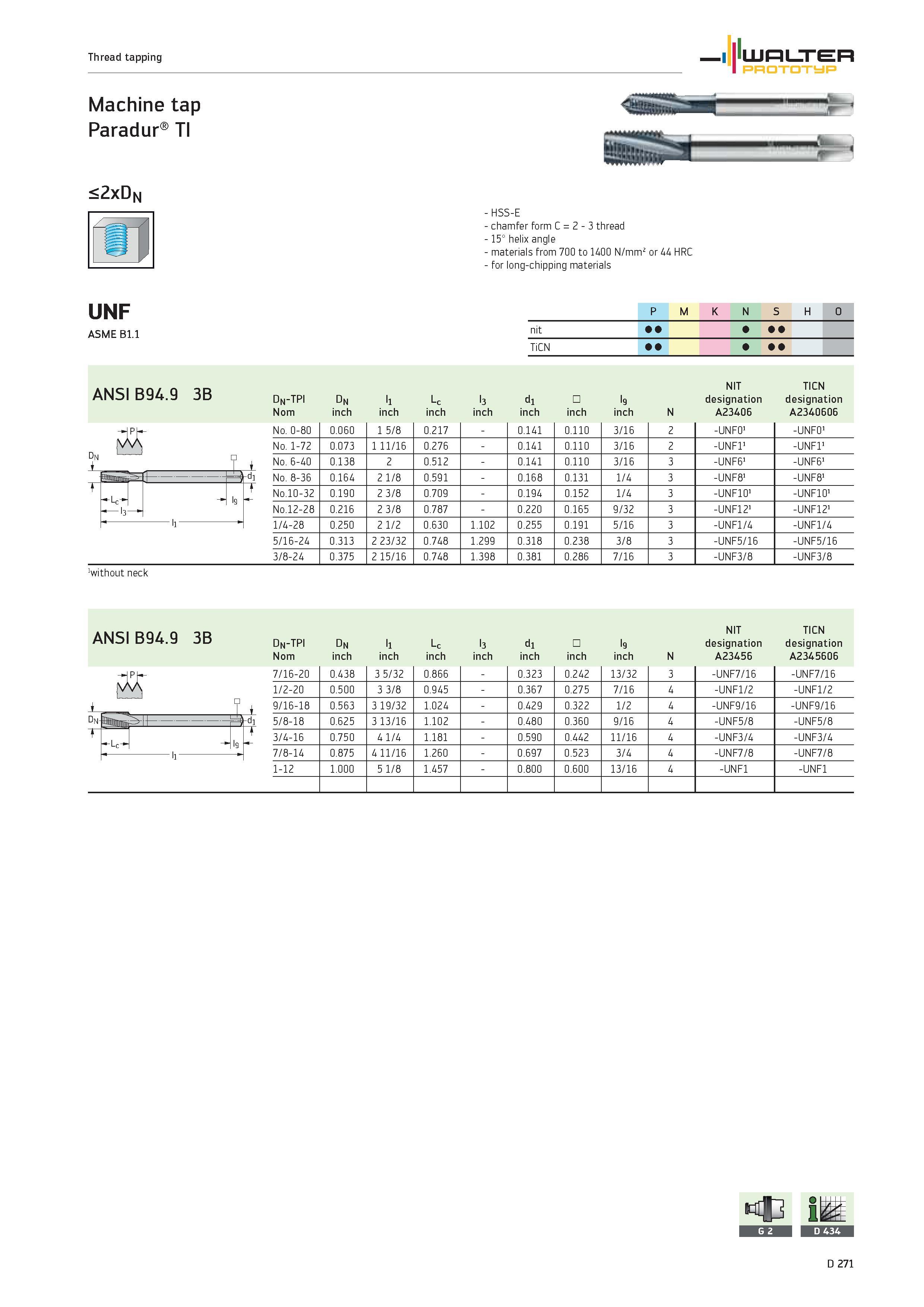

Thread tapping .1 iLum n ER PROTOTYP Machine tap Paradur TI <2xD N HSS-E chamfer form C 2 3 thread 15° helix angle materials from 700 to 1400 N/mm2 or 44 HRC for long-chipping materials UNF ASME B1.1 1 P M K N S H O nit 1 TiCN 1 ANSI B94.9 3B NIT TICN Dn-TPI dn ll Lc l3 di l9 designation designation Nom inch inch inch inch inch inch inch N A23406 A2340606 No. 0-80 0.060 1 5/8 0.217 0.141 0.110 3/16 2 -UNF01 -UNF01 No. 1-72 0.073 1 11/16 0.276 0.141 0.110 3/16 2 F1 N -U Ll N -U No. 6-40 0.138 2 0.512 0.141 0.110 3/16 3 -UNF61 -UNF61 No. 8-36 0.164 2 1/8 0.591 0.168 0.131 1/4 3 -UNF81 -UNF81 No.10-32 0.190 2 3/8 0.709 0.194 0.152 1/4 3 -UNF101 -UNF101 No.12-28 0.216 2 3/8 0.787 0.220 0.165 9/32 3 -UNF121 -UNF121 1/4-28 0.250 2 1/2 0.630 1.102 0.255 0.191 5/16 3 -UNF1/4 -UNF1/4 5/16-24 0.313 2 23/32 0.748 1.299 0.318 0.238 3/8 3 -UNF5/16 -UNF5/16 3/8-24 0.375 215/16 0.748 1.398 0.381 0.286 7/16 3 -UNF3/8 -UNF3/8 1without neck ANSI B94.9 3B NIT TICN Dn dn-tpi Dn ll Lc l3 di l9 designation designation Nom inch inch inch inch inch inch inch N A23456 A2345606 7/16-20 0.438 3 5/32 0.866 0.323 0.242 13/32 3 -UNF7/16 -UNF7/16 1/2-20 0.500 3 3/8 0.945 0.367 0.275 7/16 4 -UNF1/2 -UNF1/2 9/16-18 0.563 319/32 1.024 0.429 0.322 1/2 4 -UNF9/16 -UNF9/16 5/8-18 0.625 313/16 1.102 0.480 0.360 9/16 4 -UNF5/8 -UNF5/8 3/4-16 0.750 4 1/4 1.181 0.590 0.442 11/16 4 -UNF3/4 -UNF3/4 7/8-14 0.875 411/16 1.260 0.697 0.523 3/4 4 -UNF7/8 -UNF7/8 1-12 1.000 5 1/8 1.457 0.800 0.600 13/16 4 -UNF1 -UNF1 L D 271
