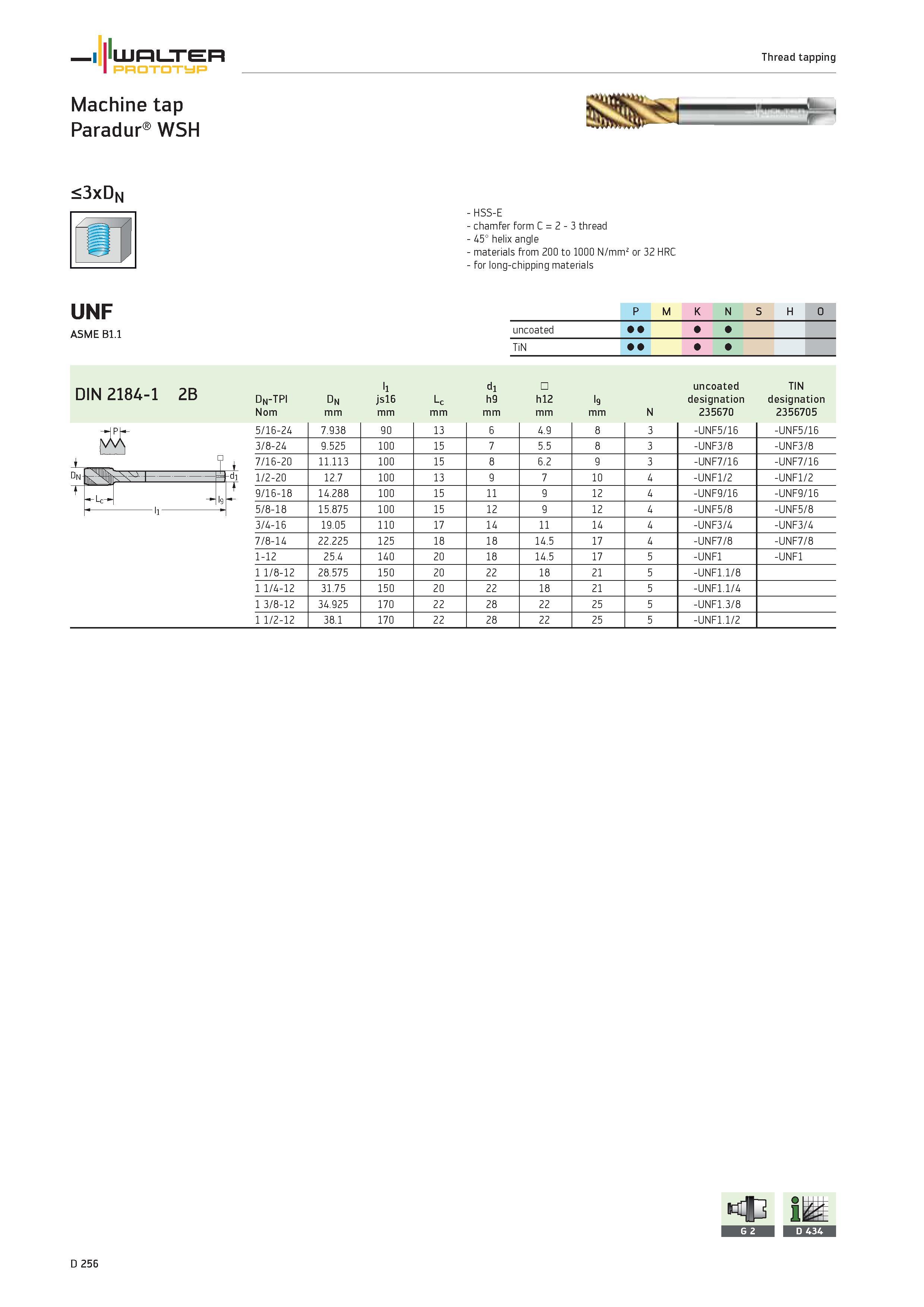

WALTER Prototyp Machine tap Paradur WSH <3xDn UNF ASME B1.1 DIN 2184-1 2B D 256 Thread tapping HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials P M K N S H O uncoated 1 TiN 1 dn-tpi Nom Dn mm l1 js16 mm Lc mm d1 h9 mm h12 mm l9 mm N uncoated designation 235670 TIN designation 2356705 5/16-24 7.938 90 13 6 4.9 8 3 -UNF5/16 -UNF5/16 3/8-24 9.525 100 15 7 5.5 8 3 -UNF3/8 -UNF3/8 7/16-20 11.113 100 15 8 6.2 9 3 -UNF7/16 -UNF7/16 1/2-20 12.7 100 13 9 7 10 4 -UNF1/2 -UNF1/2 9/16-18 14.288 100 15 11 9 12 4 -UNF9/16 -UNF9/16 5/8-18 15.875 100 15 12 9 12 4 -UNF5/8 -UNF5/8 3/4-16 19.05 110 17 14 11 14 4 -UNF3/4 -UNF3/4 7/8-14 22.225 125 18 18 14.5 17 4 -UNF7/8 -UNF7/8 1-12 25.4 140 20 18 14.5 17 5 -UNF1 -UNF1 1 1/8-12 28.575 150 20 22 18 21 5 -UNF1.1/8 1 1/4-12 31.75 150 20 22 18 21 5 -UNF1.1/4 1 3/8-12 34.925 170 22 28 22 25 5 -UNF1.3/8 1 1/2-12 38.1 170 22 28 22 25 5 -UNF1.1/2
