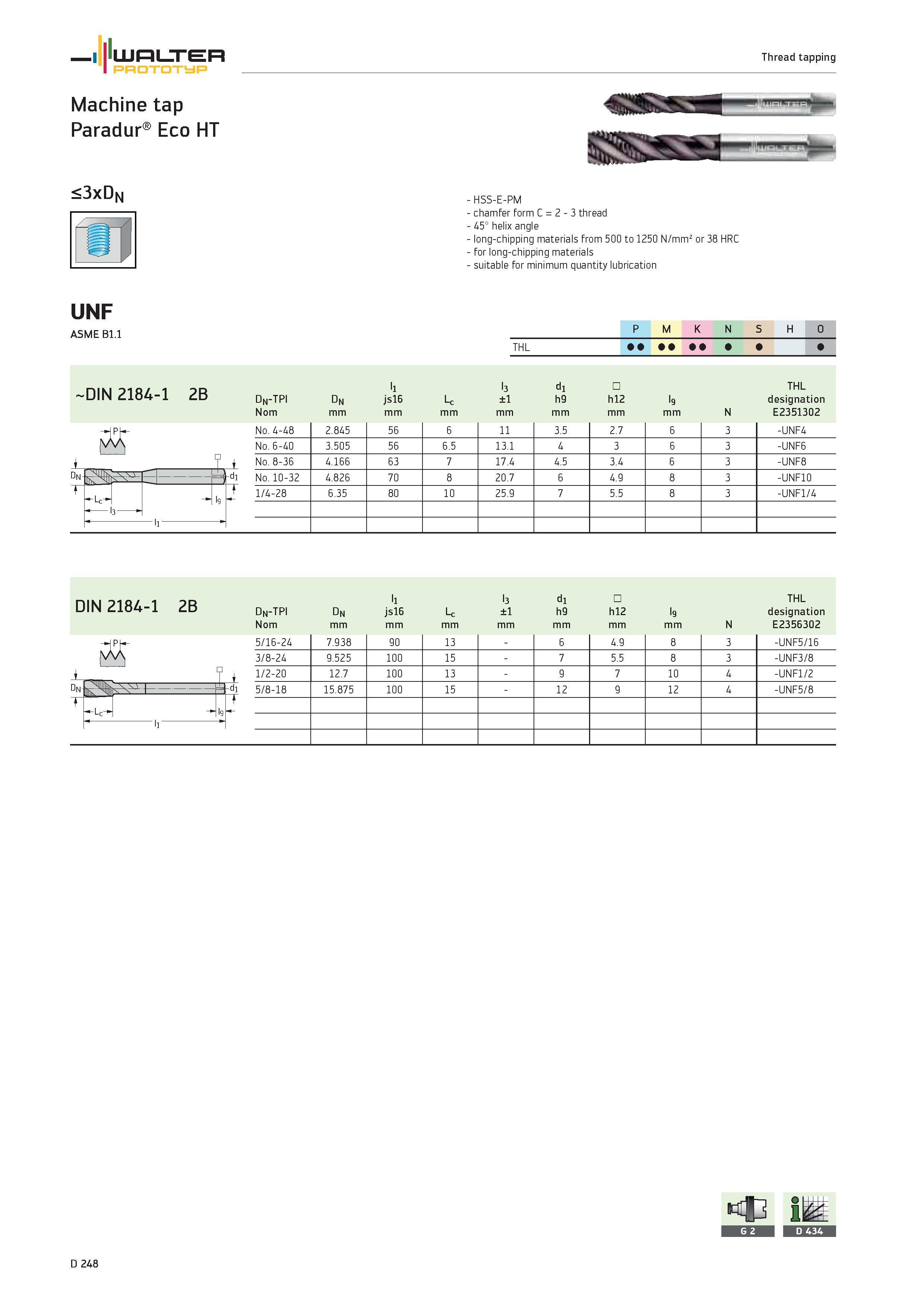

WALTER Prototyp Thread tapping Machine tap Paradur Eco HT <3xDN HSS-E-PM chamfer form C 2 3 thread 45° helix angle long-chipping materials from 500 to 1250 N/mm2 or 38 HRC for long-chipping materials suitable for minimum quantity lubrication UNF ASME Bl.l 1 P M K N S H O THL DIN 2l84-l 2B dn-tpi dn ll jsl6 Lc l3 ±l dl h9 hl2 l9 THL designation Nom mm N E235l302 Dn T No. 4-48 2.845 56 6 11 3.5 2.7 6 3 -UNF4 No. 6-40 3.505 56 6.5 13.1 4 3 6 3 -UNF6 No. 8-36 4.166 63 7 17.4 4.5 3.4 6 3 -UNF8 No. 10-32 4.826 70 8 20.7 6 4.9 8 3 -UNF10 1/4-28 6.35 80 10 25.9 7 5.5 8 3 -UNF1/4 Lc DIN 2l84-l 2B dn-tpi Dn ll jsl6 Lc l3 ±l dl h9 hl2 l9 THL designation Nom mm N E2356302 Dn "M-d 5/16-24 7.938 90 13 6 4.9 8 3 -UNF5/16 3/8-24 9.525 100 15 7 5.5 8 3 -UNF3/8 1/2-20 12.7 100 13 9 7 10 4 -UNF1/2 5/8-18 15.875 100 15 12 9 12 4 -UNF5/8 L D 248 iH
