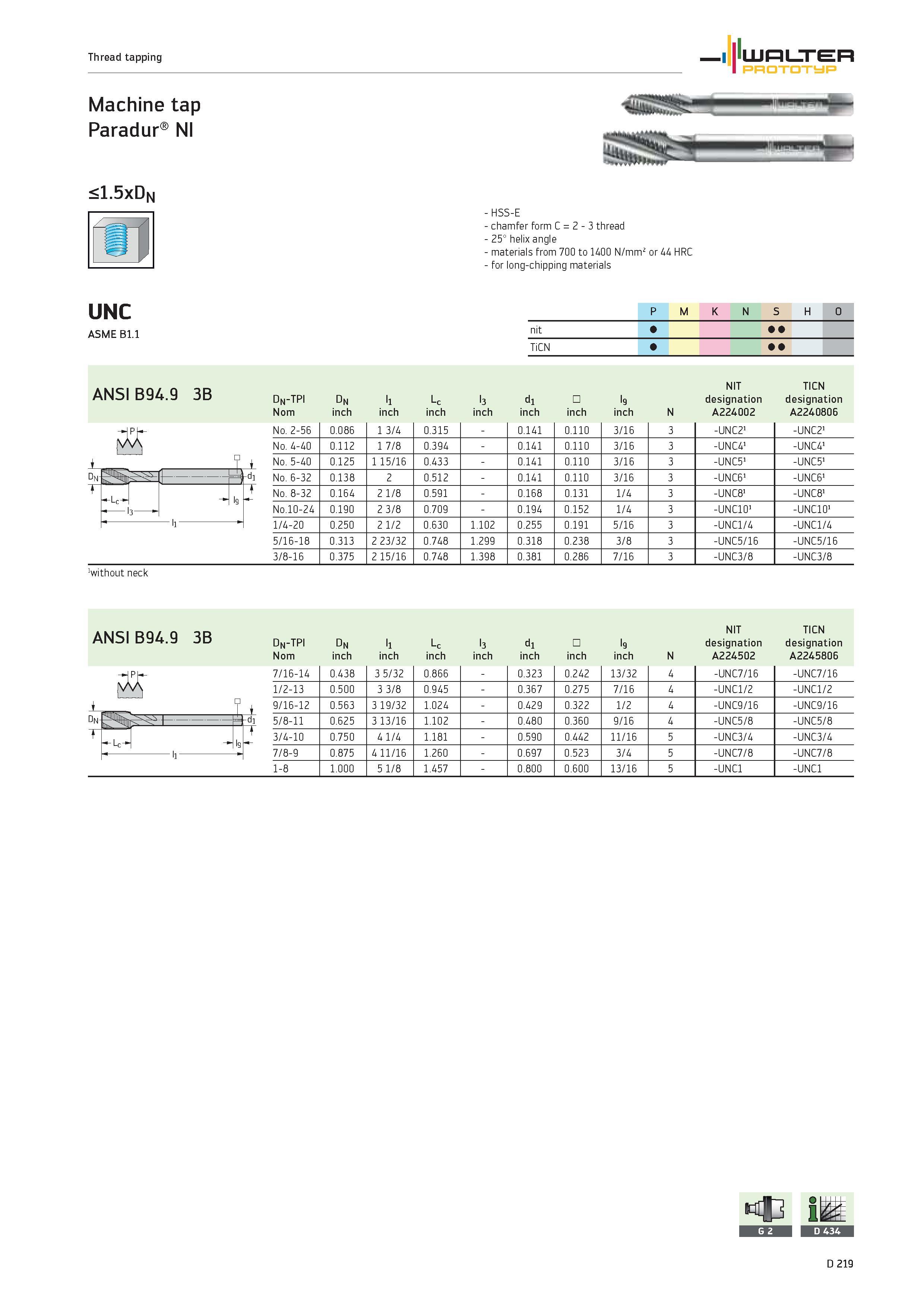

Thread tapping WALTER PROTOTYP Machine tap Paradur NI <1.5xDn HSS-E chamfer form C 2 3 thread 25° helix angle materials from 700 to 1400 N/mm2 or 44 HRC for long-chipping materials UNC ASME Bl.l P M K I S N O nit I TiCN I ANSI B94.9 3B NIT TICN dn-tpi Dn ll Lc l3 dl l9 designation designation Nom inch inch inch inch inch inch inch N A224002 A2240806 No. 2-56 0.086 1 3/4 0.315 0.141 0.110 3/16 3 -UNC2' -UNC21 No. 4-40 0.112 1 7/8 0.394 0.141 0.110 3/16 3 -UNC4' -UNC41 No. 5-40 0.125 1 15/16 0.433 0.141 0.110 3/16 3 -UNC51 -UNC51 No. 6-32 0.138 2 0.512 0.141 0.110 3/16 3 -UNC61 -UNC61 No. 8-32 0.164 2 1/8 0.591 0.168 0.131 1/4 3 -UNC81 -UNC81 No.10-24 0.190 2 3/8 0.709 0.194 0.152 1/4 3 -UNC101 -UNC101 1/4-20 0.250 2 1/2 0.630 1.102 0.255 0.191 5/16 3 -UNC1/4 -UNC1/4 5/16-18 0.313 2 23/32 0.748 1.299 0.318 0.238 3/8 3 -UNC5/16 -UNC5/16 3/8-16 0.375 215/16 0.748 1.398 0.381 0.286 7/16 3 -UNC3/8 -UNC3/8 1without neck ANSI B94.9 3B Dn-TPI Nom Dn inch ll inch Lc inch l3 inch dl inch inch l9 inch N NIT designation A224502 TICN designation A2245806 P' 5 z 7/16-14 0.438 3 5/32 0.866 0.323 0.242 13/32 4 -UNC7/16 -UNC7/16 1/2-13 0.500 3 3/8 0.945 0.367 0.275 7/16 4 -UNC1/2 -UNC1/2 2 6- 9/ 0.563 319/32 1.024 0.429 0.322 1/2 4 -UNC9/16 -UNC9/16 Dn pd. 5/8-11 0.625 313/16 1.102 0.480 0.360 9/16 4 -UNC5/8 -UNC5/8 t LC- 3/4-10 0.750 4 1/4 1.181 0.590 0.442 11/16 5 -UNC3/4 -UNC3/4 ii 7/8-9 0.875 411/16 1.260 0.697 0.523 3/4 5 -UNC7/8 -UNC7/8 1-8 1.000 5 1/8 1.457 0.800 0.600 13/16 5 -UNC1 -UNC1 D 219
