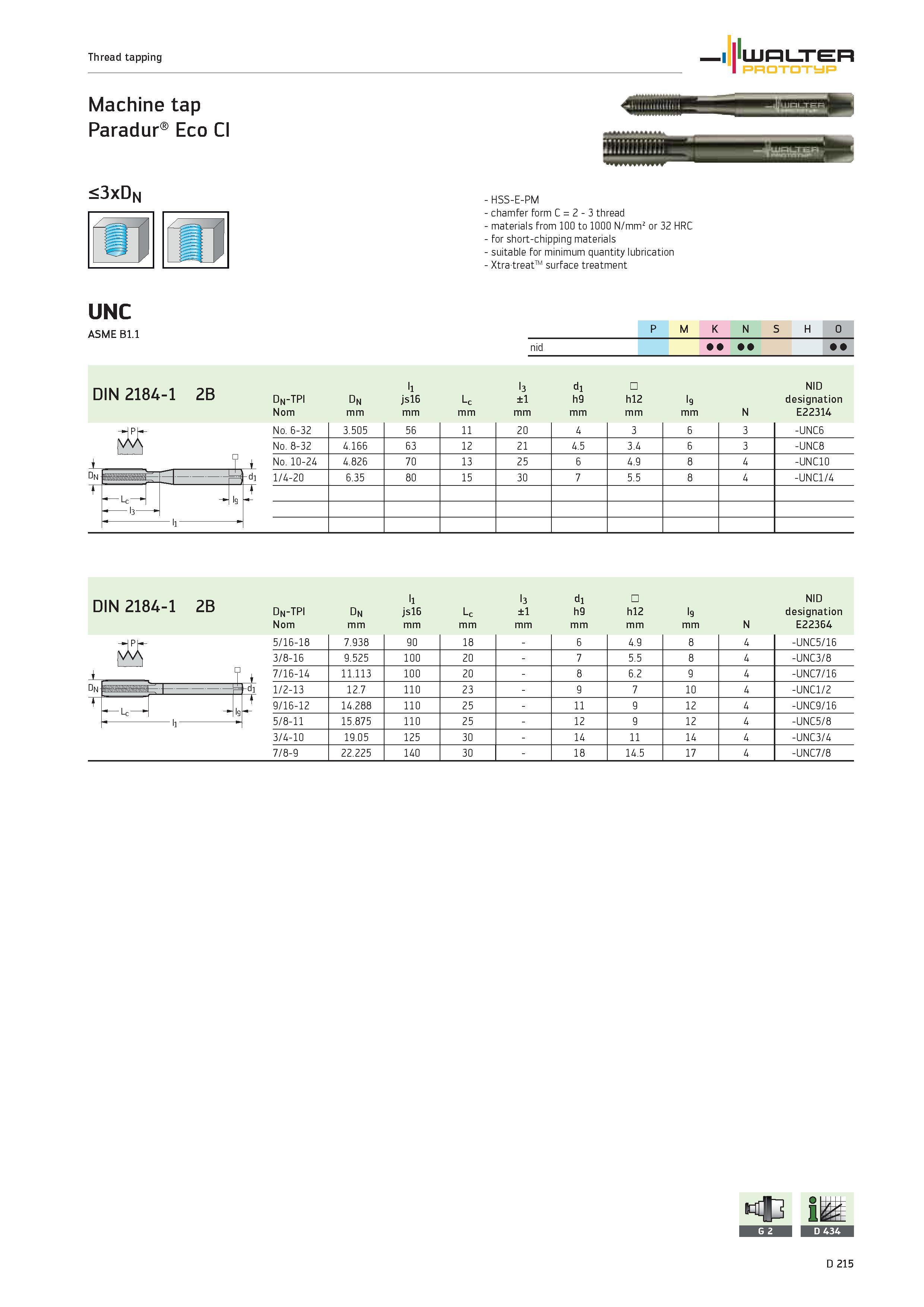

Thread tapping WALTER PROTOTYP Machine tap Paradur Eco CI <3xDN hss-e-pm chamfer form C 2 3 thread materials from 100 to 1000 N/mm2 or 32 HRC for short-chipping materials suitable for minimum quantity lubrication XtratreatTM surface treatment UNC ASME B1.1 1 P M K N S H O nid DIN 2184 -1 2B dn-tpi Nom Dn mm l1 js16 mm Lc mm l3 ±1 mm d1 h9 mm h12 mm -9 mm N nid designation E22314 No. 6-32 3.505 56 11 20 4 3 6 3 -UNC6 No. 8-32 4.166 63 12 21 4.5 3.4 6 3 -UNC8 1 No. 10-24 4.826 70 13 25 6 4.9 8 4 -UNC10 Dn MBBMfflgE -fH hdi 1/4-20 6.35 80 15 30 7 5.5 8 4 -UNC1/4 t 47 l3 ll DIN 2184-1 2B dn-tpi Nom Dn mm l1 js16 mm Lc mm l3 ±1 mm 19 m dhm h12 mm l9 mm N nid designation E22364 A 5/16-18 7.938 90 18 6 4.9 8 4 -UNC5/16 3/8-16 9.525 100 20 7 5.5 8 4 -UNC3/8 jL U 1 7/16-14 11.113 100 20 8 6.2 9 4 -UNC7/16 1 + 1/2-13 9/16-12 14.288 110 25 11 9 12 4 -UNC9/16 ll 5/8-11 15.875 110 25 12 9 12 4 -UNC5/8 3/4-10 19.05 125 30 14 11 14 4 -UNC3/4 7/8-9 22.225 140 30 18 14.5 17 4 -UNC7/8 D 215
