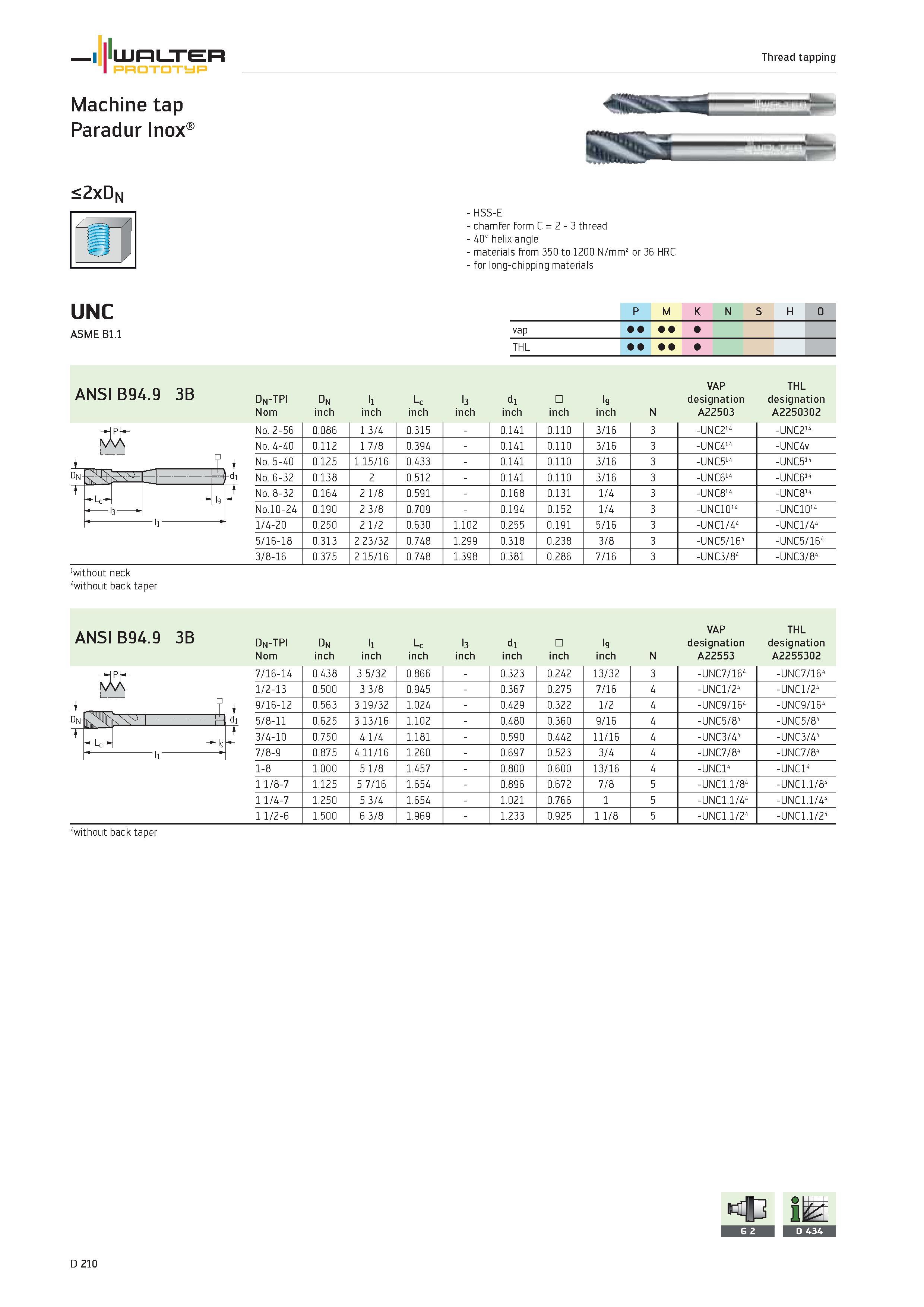

WALTER Prototyp Thread tapping Machine tap Paradur Inox <2xDn HSS-E chamfer form C 2 3 thread 40° helix angle materials from 350 to 1200 N/mm2 or 36 HRC for long-chipping materials UNC ASME Bl.l 1 P M K N S H O vap 1 THL 1 ANSI B94.9 3B A VAP THL Dn tii T dn-tpi Dn l1 Lc l3 d1 l9 designation designation Nom inch inch inch inch inch inch inch N A22503 A2250302 No. 2-56 0.086 1 3/4 0.315 0.141 0.110 3/16 3 -UNC214 -UNC214 No. 4-40 0.112 1 7/8 0.394 0.141 0.110 3/16 3 -UNC414 -UNC4v No. 5-40 0.125 115/16 0.433 0.141 0.110 3/16 3 -UNC514 -UNC514 No. 6-32 0.138 2 0.512 0.141 0.110 3/16 3 -UNC614 -UNC614 No. 8-32 0.164 2 1/8 0.591 0.168 0.131 1/4 3 -UNC814 -UNC814 No.10-24 0.190 2 3/8 0.709 0.194 0.152 1/4 3 -UNC1014 -UNC1014 1/4-20 0.250 2 1/2 0.630 1.102 0.255 0.191 5/16 3 -UNC1/44 -UNC1/44 5/16-18 0.313 2 23/32 0.748 1.299 0.318 0.238 3/8 3 -UNC5/164 -UNC5/164 3/8-16 0.375 215/16 0.748 1.398 0.381 0.286 7/16 3 -UNC3/84 -UNC3/84 without neck 4without back taper ANSI B94.9 3B A VAP THL Dn dn-tpi Dn l1 Lc l3 d1 l9 designation designation Nom inch inch inch inch inch inch inch N A22553 A2255302 7/16-14 0.438 3 5/32 0.866 0.323 0.242 13/32 3 -UNC7/164 -UNC7/164 1/2-13 0.500 3 3/8 0.945 0.367 0.275 7/16 4 -UNC1/24 -UNC1/24 9/16-12 0.563 319/32 1.024 0.429 0.322 1/2 4 -UNC9/164 -UNC9/164 5/8-11 0.625 313/16 1.102 0.480 0.360 9/16 4 -UNC5/84 -UNC5/84 3/4-10 0.750 4 1/4 1.181 0.590 0.442 11/16 4 -UNC3/44 -UNC3/44 7/8-9 0.875 411/16 1.260 0.697 0.523 3/4 4 -UNC7/84 -UNC7/84 1-8 1.000 5 1/8 1.457 0.800 0.600 13/16 4 -UNC14 -UNC14 1 1/8-7 1.125 5 7/16 1.654 0.896 0.672 7/8 5 -UNC1.1/84 -UNC1.1/84 1 1/4-7 1.250 5 3/4 1.654 1.021 0.766 1 5 -UNC1.1/44 -UNC1.1/44 1 1/2-6 1.500 6 3/8 1.969 1.233 0.925 1 1/8 5 -UNC1.1/24 -UNC1.1/24 4without back taper Lc- L D 210
