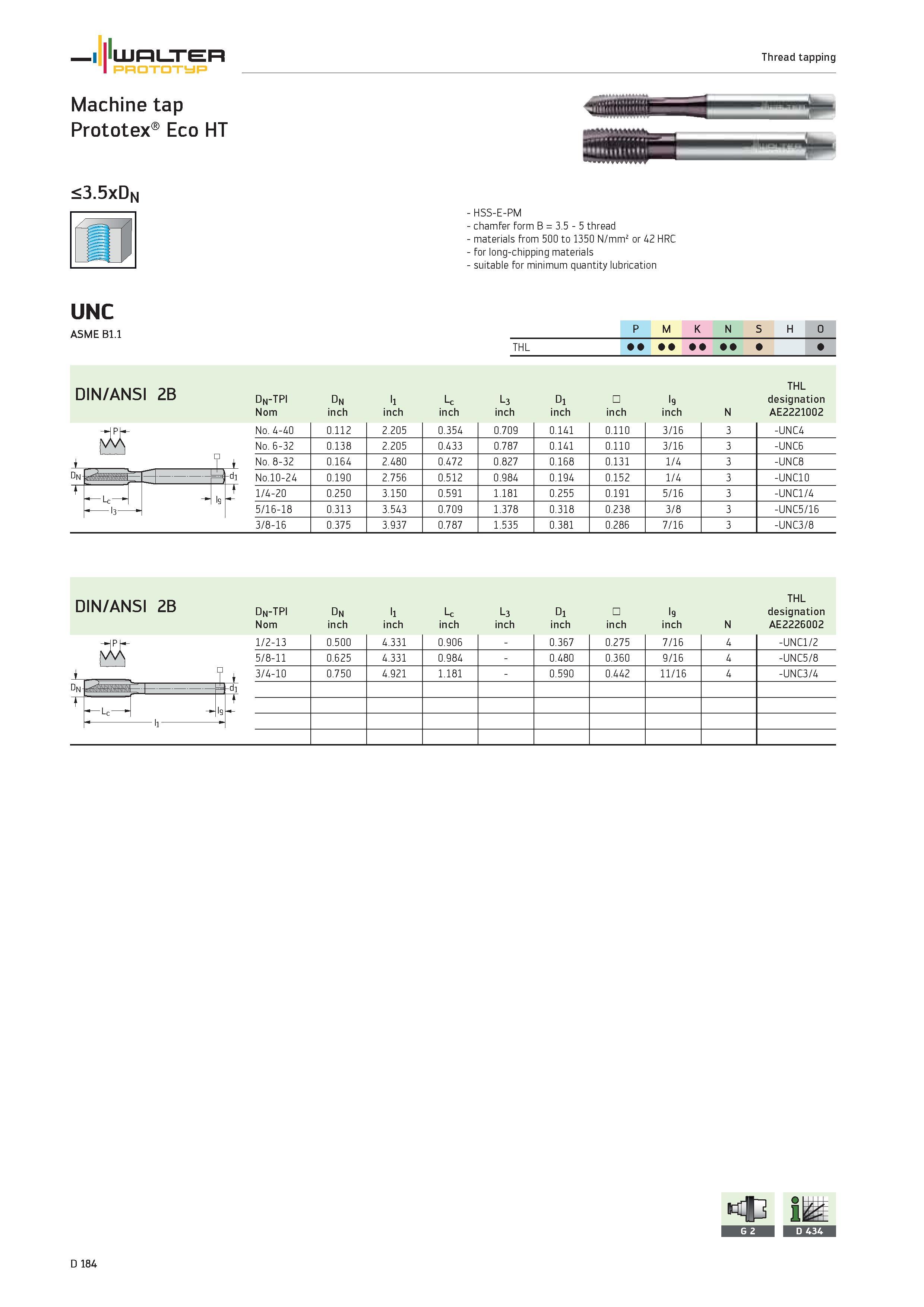

WALTER Prototyp Machine tap Prototex Eco HT Thread tapping <3.5xDn HSS-E-PM chamfer form B 3.5 5 thread materials from 500 to 1350 N/mm2 or 42 HRC for long-chipping materials suitable for minimum quantity lubrication UNC ASME B1.1 1 P M K N S H O THL DIN/ANSI 2B ND o z mT I dn inch l1 inch Lc inch L3 inch D1 inch inch I9 inch N THL designation AE2221002 iPJ No. 4-40 0.112 2.205 0.354 0.709 0.141 0.110 3/16 3 -UNC4 No. 6-32 0.138 2.205 0.433 0.787 0.141 0.110 3/16 3 -UNC6 No. 8-32 0.164 2.480 0.472 0.827 0.168 0.131 1/4 3 -UNC8 Dn =H hd No.10-24 0.190 2.756 0.512 0.984 0.194 0.152 1/4 3 -UNC10 t l 47 t 1/4-20 0.250 3.150 0.591 1.181 0.255 0.191 5/16 3 -UNC1/4 5/16-18 0.313 3.543 0.709 1.378 0.318 0.238 3/8 3 -UNC5/16 3/8-16 0.375 3.937 0.787 1.535 0.381 0.286 7/16 3 -UNC3/8 DIN/ANSI 2B dn-tpi Dn l1 Lc L3 D1 I9 THL designation Nom inch inch inch inch inch inch inch N AE2226002 4 -d + t Lc l9 1 1/2-13 0.500 4.331 0.906 0.367 0.275 7/16 4 -UNC1/2 5/8-11 0.625 4.331 0.984 0.480 0.360 9/16 4 -UNC5/8 3/4-10 0.750 4.921 1.181 0.590 0.442 11/16 4 -UNC3/4 D 184 iH GEH 1WM
