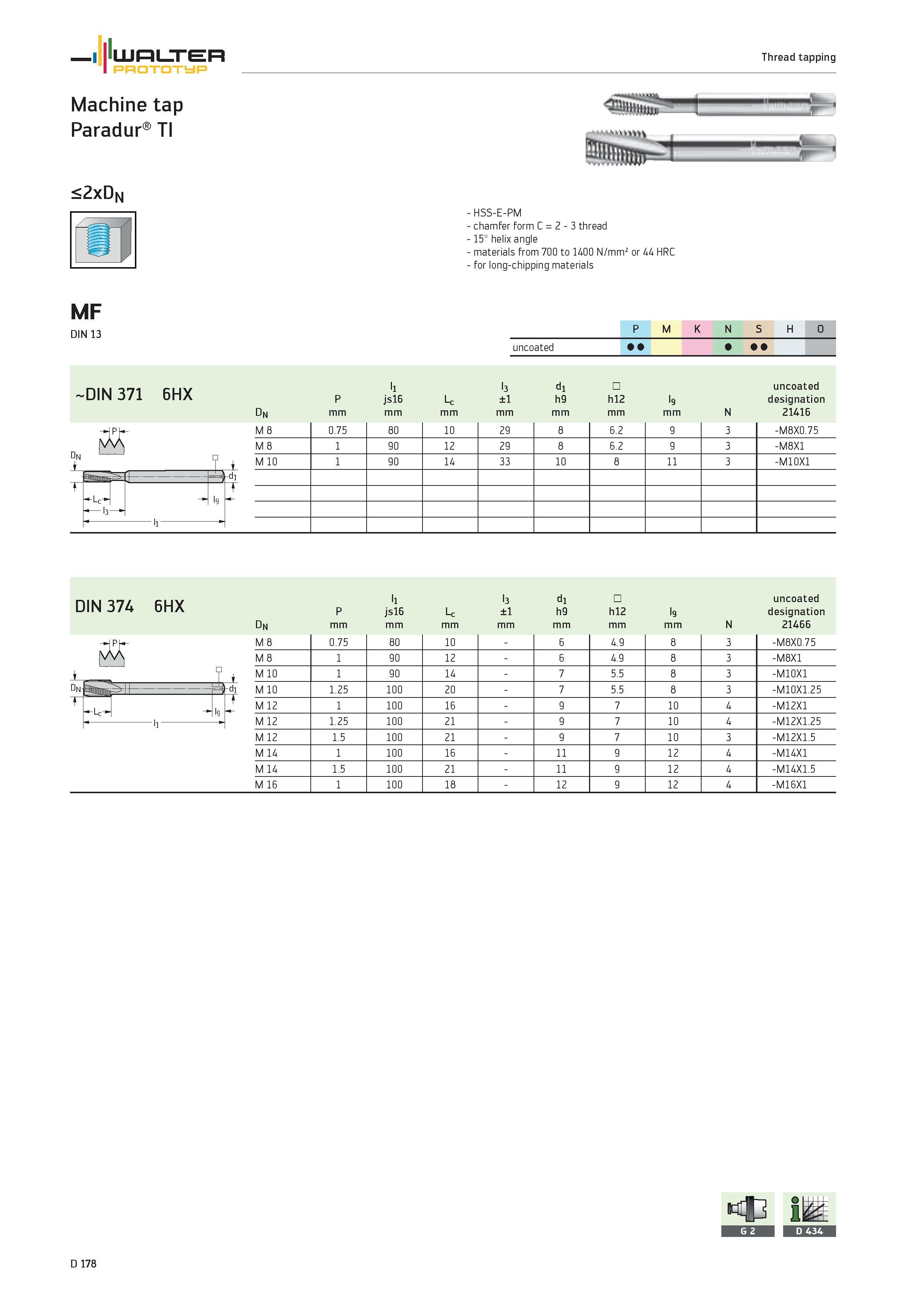

WALTER Prototyp Thread tapping Machine tap Paradur TI <2xDN HSS-E-PM chamfer form C 2 3 thread 15° helix angle materials from 700 to 1400 N/mm2 or 44 HRC for long-chipping materials MF DIN 13 P M K N S H O uncoated 1 DIN 371 6HX P ll js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation dn mm N 21416 M 8 0.75 80 10 29 8 6.2 9 3 -M8X0.75 M 8 1 90 12 29 8 6.2 9 3 -M8X1 M 10 1 90 14 33 10 8 11 3 -M10X1 DIN 374 6HX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Dn mm N 21466 M 8 0.75 80 10 6 4.9 8 3 -M8X0.75 M 8 1 90 12 6 4.9 8 3 -M8X1 M 10 1 90 14 7 5.5 8 3 -M10X1 M 10 1.25 100 20 7 5.5 8 3 -M10X1.25 M 12 1 100 16 9 7 10 4 -M12X1 M 12 1.25 100 21 9 7 10 4 -M12X1.25 M 12 1.5 100 21 9 7 10 3 -M12X1.5 M 14 1 100 16 11 9 12 4 -M14X1 M 14 1.5 100 21 11 9 12 4 -M14X1.5 M 16 1 100 18 12 9 12 4 -M16X1 L D 178 iH
