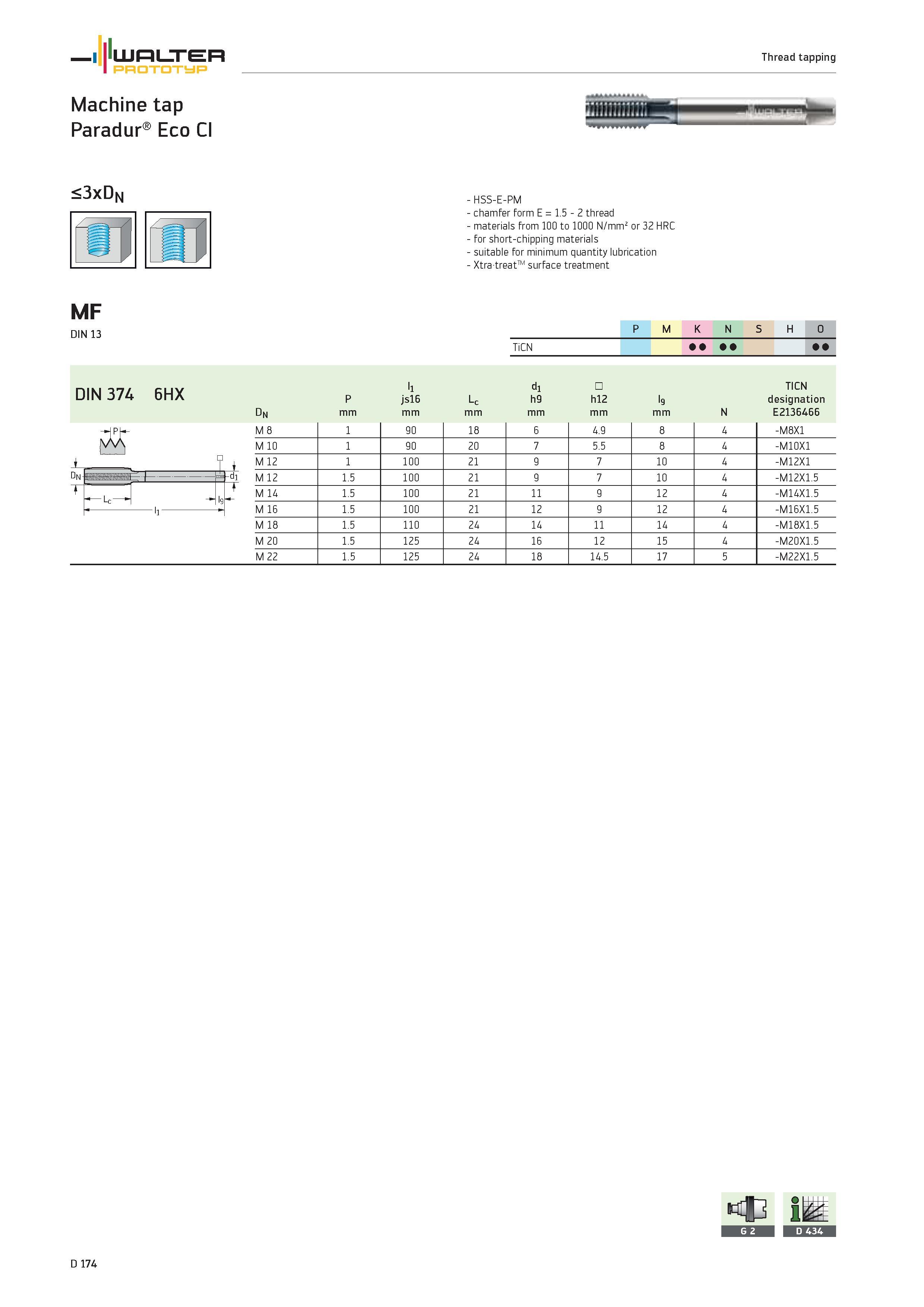

WALTER Prototyp Thread tapping Machine tap Paradur Eco CI <3xDN HSS-E-PM chamfer form E 1.5 2 thread materials from 100 to 1000 N/mm2 or 32 HRC for short-chipping materials suitable for minimum quantity lubrication XtratreatTM surface treatment MF DIN 13 P M K N S H O TiCN DIN 374 6HX P ll js16 Lc di h9 h12 l9 TICN designation dn mm N E2136466 M 8 1 90 18 6 4.9 8 4 -M8X1 M 10 1 90 20 7 5.5 8 4 -M10X1 M 12 1 100 21 9 7 10 4 -M12X1 M 12 1.5 100 21 9 7 10 4 -M12X1.5 M 14 1.5 100 21 11 9 12 4 -M14X1.5 M 16 1.5 100 21 12 9 12 4 -M16X1.5 M 18 1.5 110 24 14 11 14 4 -M18X1.5 M 20 1.5 125 24 16 12 15 4 -M20X1.5 M 22 1.5 125 24 18 14.5 17 5 -M22X1.5 O \-fl D 174 L
