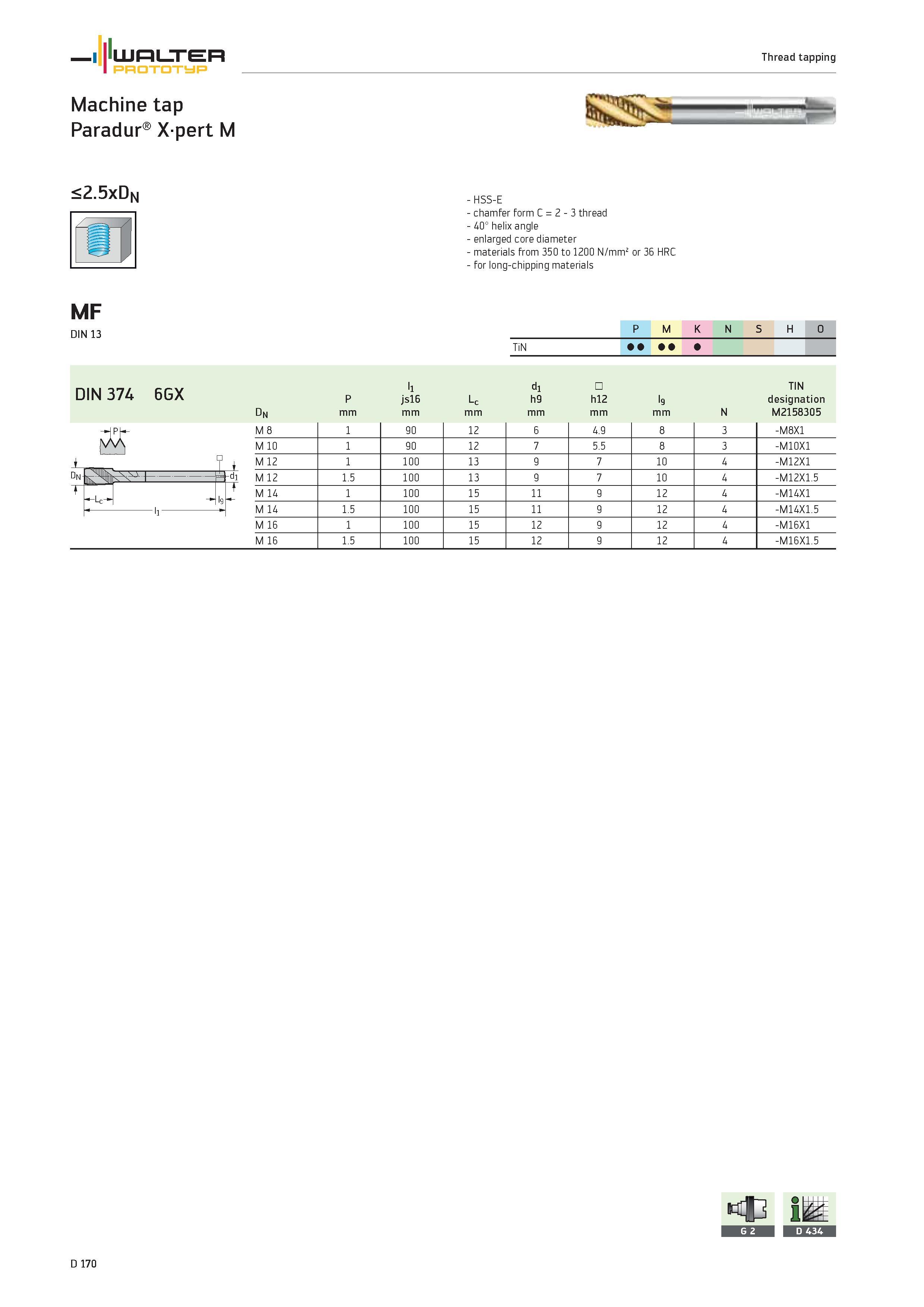

WALTER Prototyp Thread tapping Machine tap Paradur Xpert M <2.5xDn HSS-E chamfer form C 2 3 thread 40° helix angle enlarged core diameter materials from 350 to 1200 N/mm2 or 36 HRC for long-chipping materials MF DIN 13 1 P M K N S H O TiN 1 DIN 374 6GX P ll js16 Lc dl h9 h12 l9 TIN designation Dn mm N M2158305 Dn SEEE I Td T l9 M 8 1 90 12 6 4.9 8 3 -M8X1 M 10 1 90 12 7 5.5 8 3 -M10X1 M 12 1 100 13 9 7 10 4 -M12X1 M 12 1.5 100 13 9 7 10 4 -M12X1.5 M 14 1 100 15 11 9 12 4 -M14X1 M 14 1.5 100 15 11 9 12 4 -M14X1.5 M 16 1 100 15 12 9 12 4 -M16X1 M 16 1.5 100 15 12 9 12 4 -M16X1.5 n D 170 L
