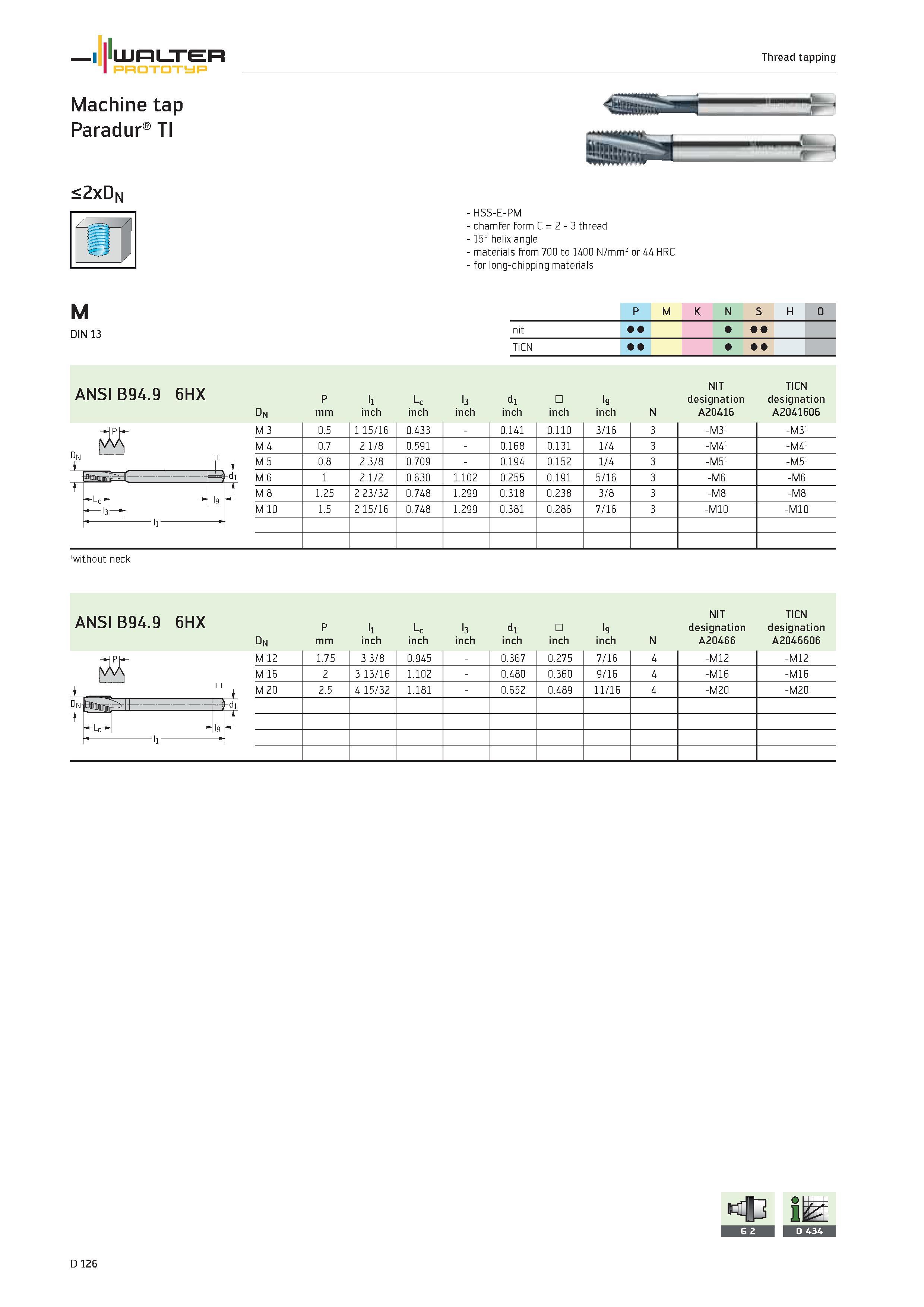

WALTER PROTOTYP Thread tapping Machine tap Paradur TI <2xDN HSS-E-PM chamfer form C 2 3 thread 15° helix angle materials from 700 to 1400 N/mm2 or 44 HRC for long-chipping materials M DIN 13 1 P M K N S H O nit TiCN ANSI B94.9 6HX dn P mm l1 inch Lc inch l3 inch d1 inch inch l9 inch N NIT designation A20416 TICN designation A2041606 M 3 0.5 115/16 0.433 0.141 0.110 3/16 3 -M31 -M31 Dn t M 4 0.7 2 1/8 0.591 0.168 0.131 1/4 3 -M41 -M41 rrr. “ M 5 0.8 2 3/8 0.709 0.194 0.152 1/4 3 -M51 -M51 T tt l9 M 8 1.25 2 23/32 0.748 1.299 0.318 0.238 3/8 3 -M8 -M8 M 10 1.5 215/16 0.748 1.299 0.381 0.286 7/16 3 -M10 -M10 li 1without neck ANSI B94.9 6HX P l1 Lc l3 d1 l9 NIT designation TICN designation dn mm inch inch inch inch inch inch N A20466 A2046606 Dn M 12 1.75 3 3/8 0.945 0.367 0.275 7/16 4 -M12 -M12 M 16 2 3 13/16 1.102 0.480 0.360 9/16 4 -M16 -M16 M 20 2.5 415/32 1.181 0.652 0.489 11/16 4 -M20 -M20 Lc D 126
