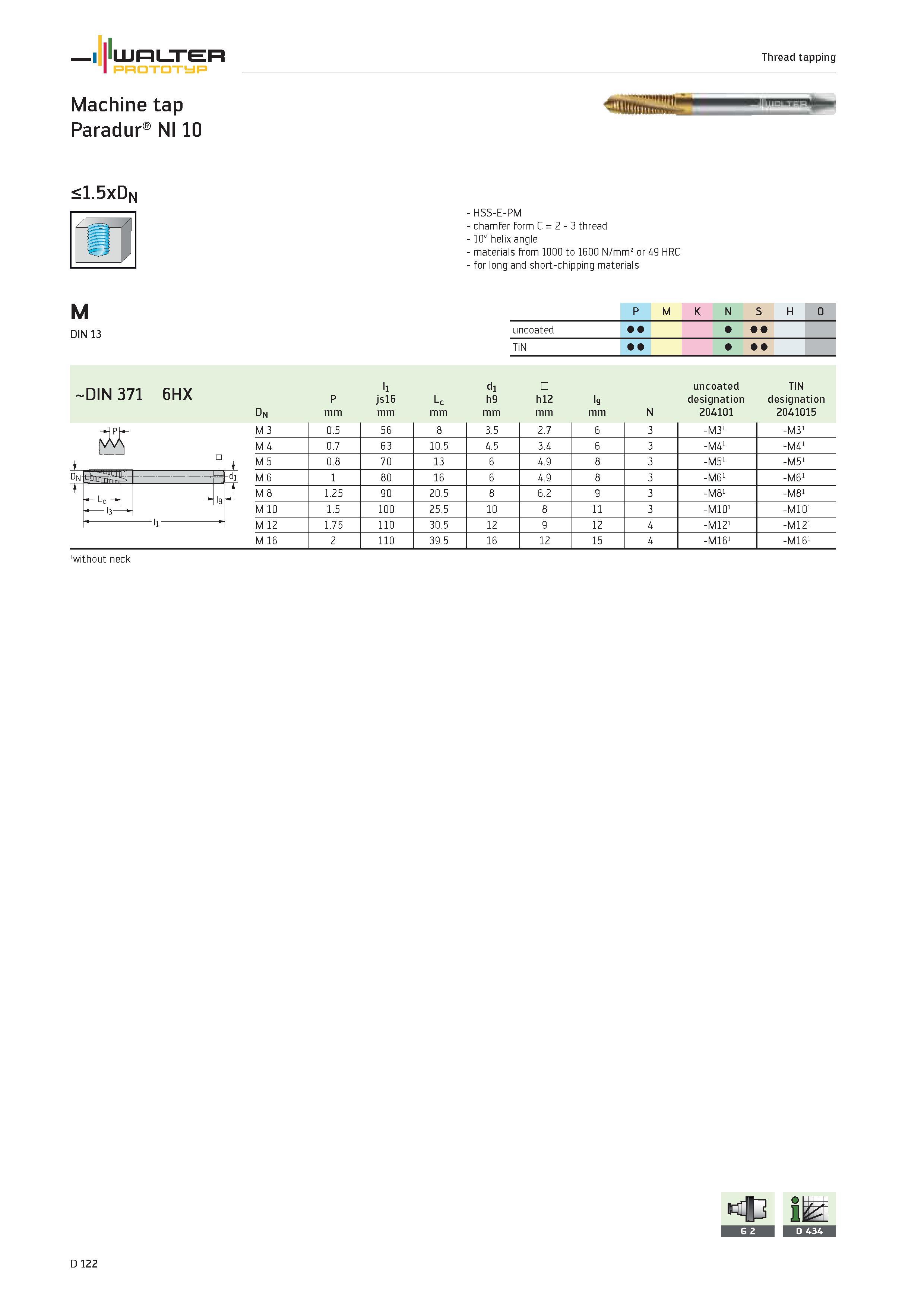

WALTER PROTOTYP Thread tapping Machine tap Paradur NI 10 <1.5xDn HSS-E-PM chamfer form C 2 3 thread 10° helix angle materials from 1000 to 1600 N/mm2 or 49 HRC for long and short-chipping materials M DIN 13 P M K N S H O uncoated 1 TiN DIN 37l 6HX Dn P mm ll jsl6 mm Lc mm -n 01 dhm hl2 mm l9 mm N uncoated designation 204101 TIN designation 2041015 iPJ M 3 0.5 56 8 3.5 2.7 6 3 -M31 -M31 M 4 0.7 63 10.5 4.5 3.4 6 3 -M41 -M41 M 5 0.8 70 13 6 4.9 8 3 -M51 -M51 Dn M 6 1 80 16 6 4.9 8 3 -M61 -M61 n inTTrmrJp> + L -J ls f M 8 1.25 90 20.5 8 6.2 9 3 -M81 -M81 l3 M 10 1.5 100 25.5 10 8 11 3 -M101 -M101 ll M 12 1.75 110 30.5 12 9 12 4 -M121 -M121 M 16 2 110 39.5 16 12 15 4 -M161 -M161 1without neck D 122
