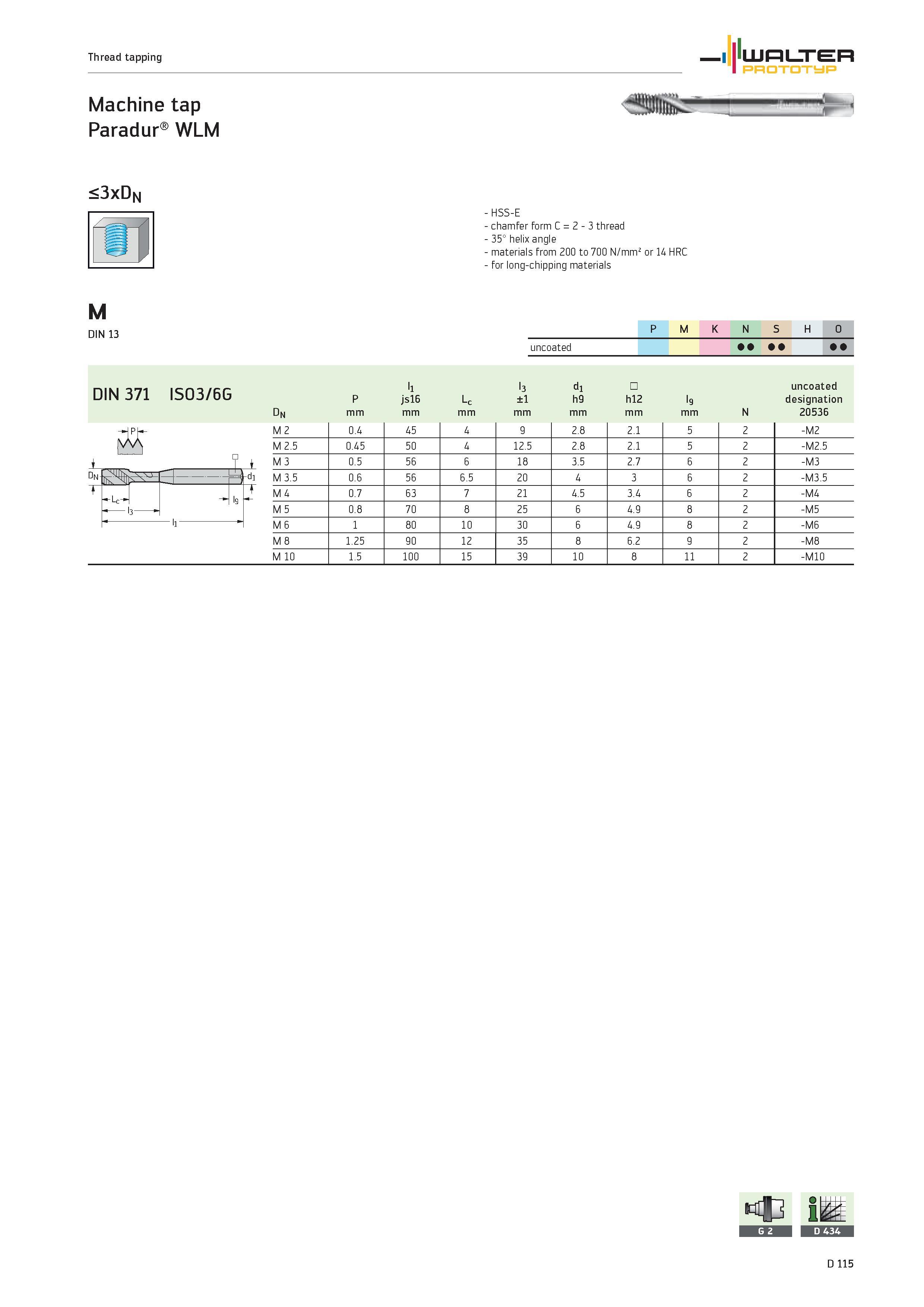

Thread tapping WALTER PROTOTYP Machine tap Paradur WLM <3xDN HSS-E chamfer form C 2 3 thread 35° helix angle materials from 200 to 700 N/mm2 or 14 HRC for long-chipping materials M DIN 13 1 P M K N S H O uncoated DIN 371 ISO3/6G DN P II l1 js16 II Lc II l3 ±1 II d1 h9 II h12 II -9 II N uncoated designation 20536 i M 2 0.4 45 4 9 2.8 2.1 5 2 -M2 'A M 2.5 0.45 50 4 12.5 2.8 2.1 5 2 -M2.5 t M 3 0.5 56 6 18 3.5 2.7 6 2 -M3 Dn rdi M 3.5 0.6 56 6.5 20 4 3 6 2 -M3.5 1 Lc- l9 t M 4 0.7 63 7 21 4.5 3.4 6 2 -M4 3 M 5 0.8 70 8 25 6 4.9 8 2 -M5 ii M 6 1 80 10 30 6 4.9 8 2 -M6 M 8 1.25 90 12 35 8 6.2 9 2 -M8 M 10 1.5 100 15 39 10 8 11 2 -M10 D 115
