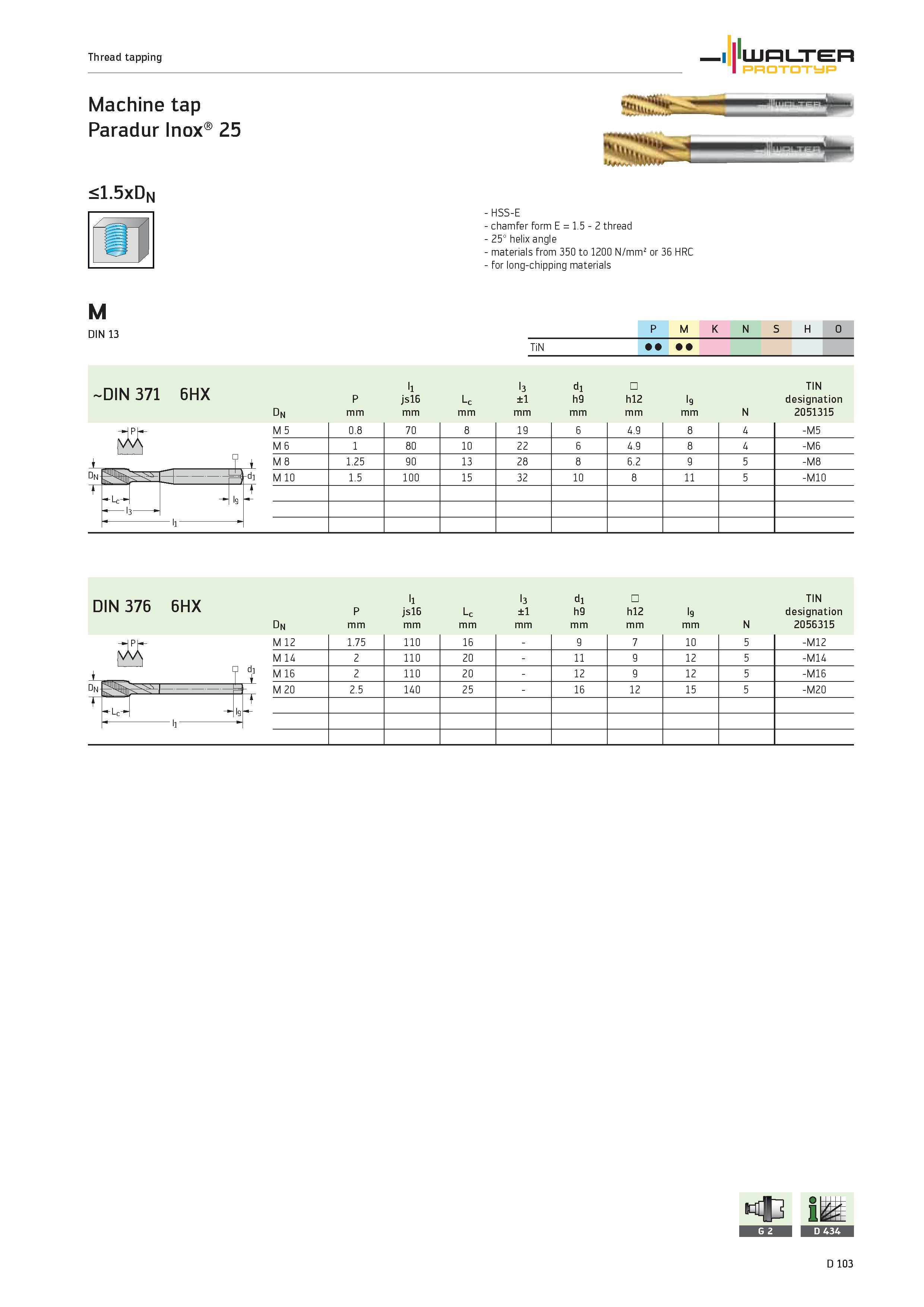

Thread tapping WALTER PROTOTYP Machine tap Paradur Inox 25 <1.5xDn -HSS-E chamfer form E 1.5 2 thread 25° helix angle materials from 350 to 1200 N/mm2 or 36 HRC for long-chipping materials M DIN 13 1 P M K N S H O TiN I DIN 371 6HX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 TIN designation Dn mm N 2051315 M 5 0.8 70 8 19 6 4.9 8 4 -M5 M 6 1 80 10 22 6 4.9 8 4 -M6 M 8 1.25 90 13 28 8 6.2 9 5 -M8 M 10 1.5 100 15 32 10 8 11 5 -M10 DIN 376 6HX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 TIN designation Dn mm N 2056315 sue M 12 1.75 110 16 9 7 10 5 -M12 M 14 2 110 20 11 9 12 5 -M14 M 16 2 110 20 12 9 12 5 -M16 M 20 2.5 140 25 16 12 15 5 -M20 O b n D 103 L
