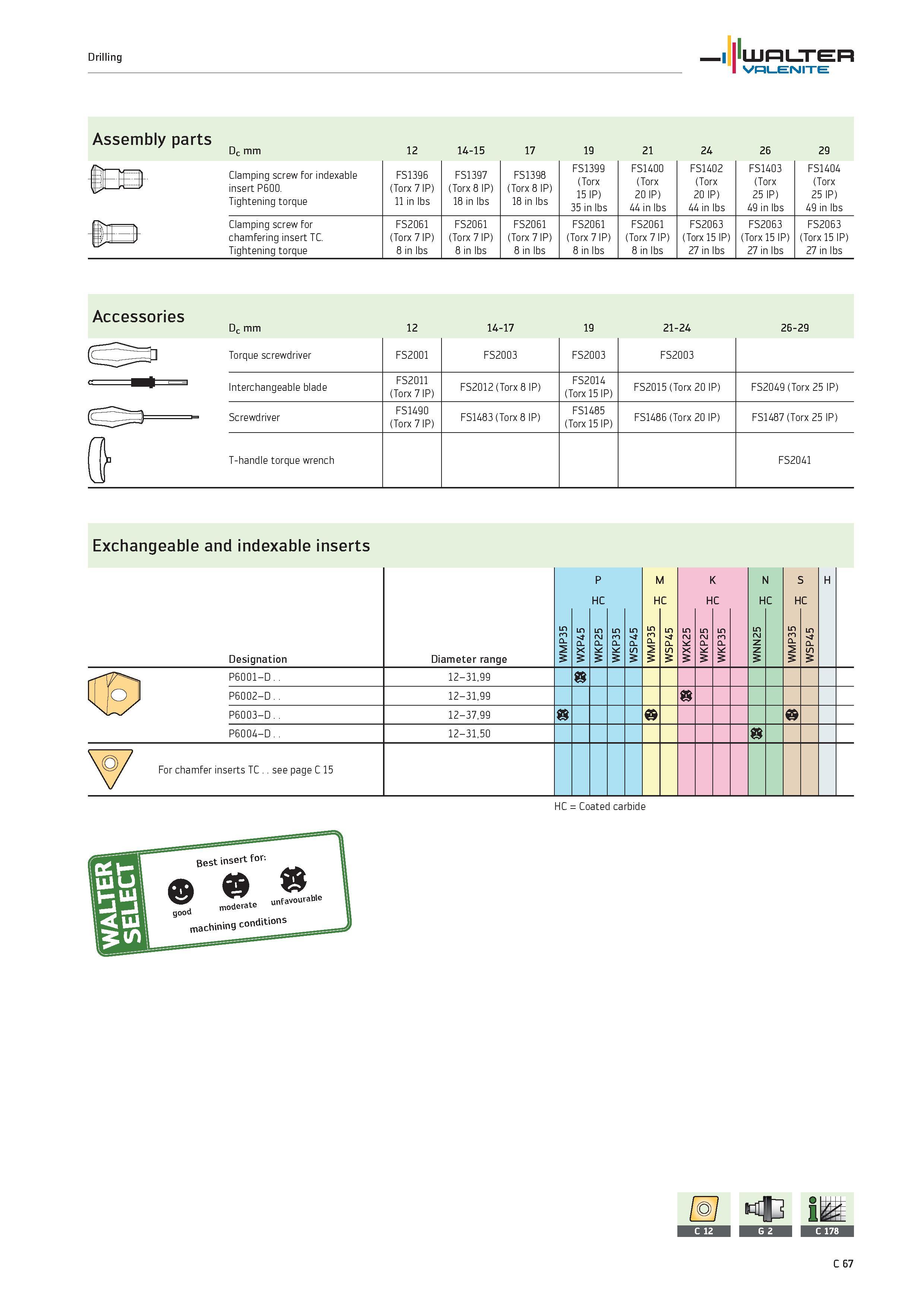

WALTER Valenite Drilling Assembly parts Dc mm 12 14-15 17 19 21 24 26 29 IB Clamping screw for indexable insert P600. Tightening torque FS1396 (Torx 7 IP) 11 in lbs FS1397 (Torx 8 IP) 18 in lbs FS1398 (Torx 8 IP) 18 in lbs FS1399 (Torx 15 IP) 35 in lbs FS1400 (Torx 20 IP) 44 in lbs FS1402 (Torx 20 IP) 44 in lbs FS1403 (Torx 25 IP) 49 in lbs FS1404 (Torx 25 IP) 49 in lbs Clamping screw for chamfering insert TC. FS2061 (Torx 7 IP) 8 in lbs FS2061 (Torx 7 IP) 8 in lbs FS2061 (Torx 7 IP) 8 in lbs FS2061 (Torx 7 IP) 8 in lbs FS2061 (Torx 7 IP) 8 in lbs FS2063 (Torx 15 IP) 27 in lbs FS2063 (Torx 15 IP) 27 in lbs FS2063 (Torx 15 IP) 27 in lbs Tightening torque Accessories Dc mm 12 14-17 19 21-24 26-29 Torque screwdriver FS2001 FS2003 FS2003 FS2003 Interchangeable blade FS2011 (Torx 7 IP) FS2012 (Torx 8 IP) FS2014 (Torx 15 IP) FS2015 (Torx 20 IP) FS2049 (Torx 25 IP) (CZZZZ Screwdriver FS1490 (Torx 7 IP) FS1483 (Torx 8 IP) FS1485 (Torx 15 IP) FS1486 (Torx 20 IP) FS1487 (Torx 25 IP) fl p T-handle torque wrench FS2041 Exchangeable and indexable inserts Designation Diameter range WMP35 5 P X 5 P HC 5 P K WK WKP35 WSP45 H 5 m CL M W C 5 i P S 5 WXK25 K H 5 rsi P K 5 WKP35 n H 5 z z W C H 5 m CL M WSP45 n H P6001-D 12-31,99 c IfO J P6002-D 12-31,99 c P6003-D 12-37,99 P6004-D.. 12-31,50 c For chamfer inserts TC see page C 15 HC Coated carbide
