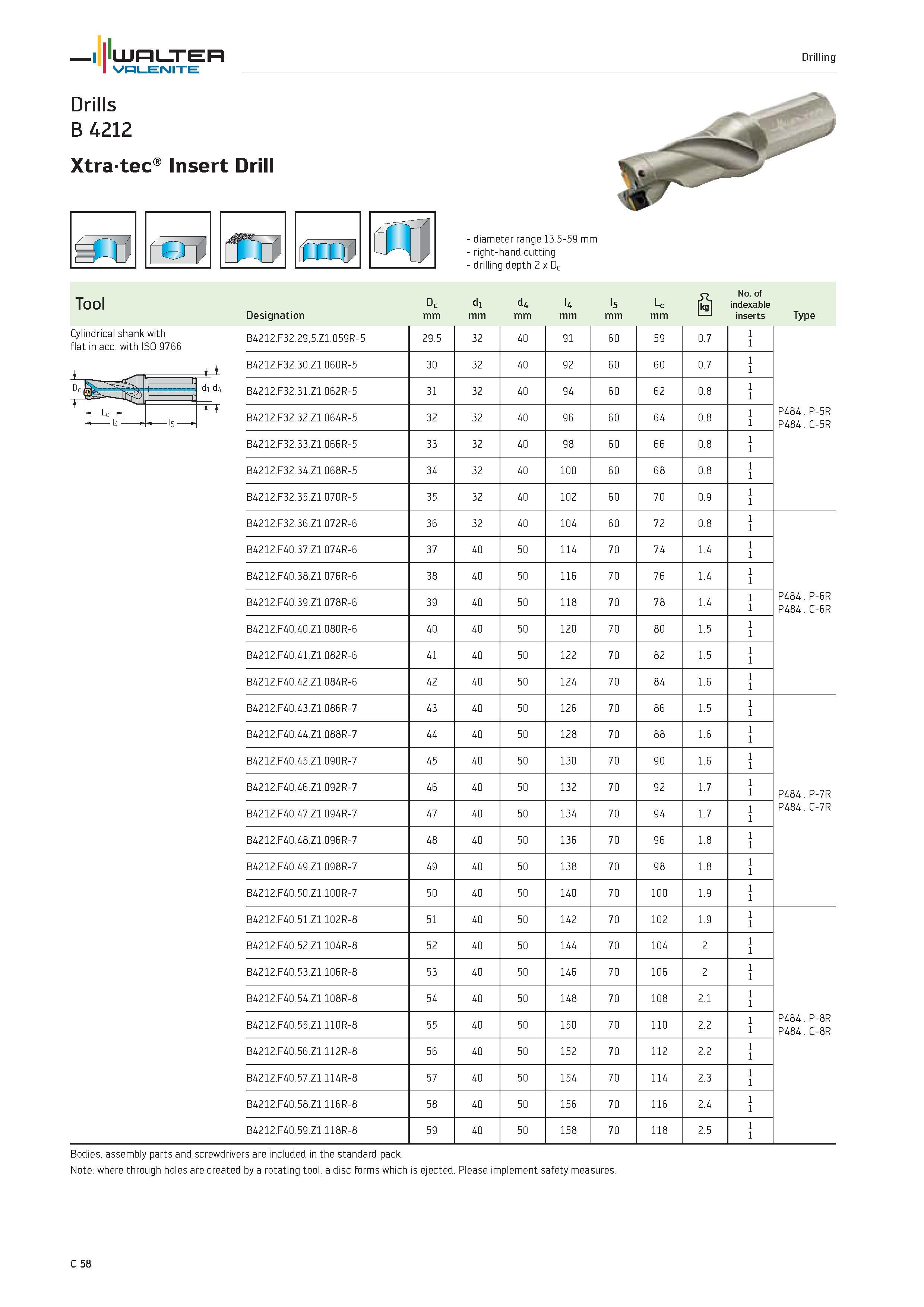

WALTER Valenite Drilling Drills B 4212 Xtra-tec1' Insert Drill re Tool Cylindrical shank with flat in acc. with ISO 9766 J “ -di d4 1 -r Lc l l4- 15 t t oxjp an diameter range 13.5-59 mm right-hand cutting drilling depth 2 x Dc Designation Dc mm dl mm d4 mm U mm l5 mm Lc mm S No. of indexable inserts Type B4212.F32.29,5.Z1.059R-5 29.5 32 40 91 60 59 0.7 B4212.F32.30.Z1.060R-5 30 32 40 92 60 60 0.7 B4212.F32.31.Z1.062R-5 31 32 40 94 60 62 0.8 B4212.F32.32.Z1.064R-5 32 32 40 96 60 64 0.8 P484. P-5R P484. C-5R B4212.F32.33.Z1.066R-5 33 32 40 98 60 66 0.8 B4212.F32.34.Z1.068R-5 34 32 40 100 60 68 0.8 B4212.F32.35.Z1.070R-5 35 32 40 102 60 70 0.9 B4212.F32.36.Z1.072R-6 36 32 40 104 60 72 0.8 B4212.F40.37.Z1.074R-6 37 40 50 114 70 74 1.4 B4212.F40.38.Z1.076R-6 38 40 50 116 70 76 1.4 B4212.F40.39.Z1.078R-6 39 40 50 118 70 78 1.4 P484. P-6R P484. C-6R B4212.F40.40.Z1.080R-6 40 40 50 120 70 80 1.5 B4212.F40.41.Z1.082R-6 41 40 50 122 70 82 1.5 B4212.F40.42.Z1.084R-6 42 40 50 124 70 84 1.6 B4212.F40.43.Z1.086R-7 43 40 50 126 70 86 1.5 B4212.F40.44.Z1.088R-7 44 40 50 128 70 88 1.6 B4212.F40.45.Z1.090R-7 45 40 50 130 70 90 1.6 B4212.F40.46.Z1.092R-7 46 40 50 132 70 92 1.7 P484. P-7R B4212.F40.47.Z1.094R-7 47 40 50 134 70 94 1.7 P484. C-7R B4212.F40.48.Z1.096R-7 48 40 50 136 70 96 1.8 B4212.F40.49.Z1.098R-7 49 40 50 138 70 98 1.8 B4212.F40.50.Z1.100R-7 50 40 50 140 70 100 1.9 B4212.F40.51.Z1.102R-8 51 40 50 142 70 102 1.9 B4212.F40.52.Z1.104R-8 52 40 50 144 70 104 2 B4212.F40.53.Z1.106R-8 53 40 50 146 70 106 2 B4212.F40.54.Z1.108R-8 54 40 50 148 70 108 2.1 B4212.F40.55.Z1.110R-8 55 40 50 150 70 110 2.2 P484. P-8R P484. C-8R B4212.F40.56.Z1.112R-8 56 40 50 152 70 112 2.2 B4212.F40.57.Z1.114R-8 57 40 50 154 70 114 2.3 B4212.F40.58.Z1.116R-8 58 40 50 156 70 116 2.4 B4212.F40.59.Z1.118R-8 59 40 50 158 70 118 2.5 Bodies, assembly parts and screwdrivers are included in the standard pack. Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. C 58
