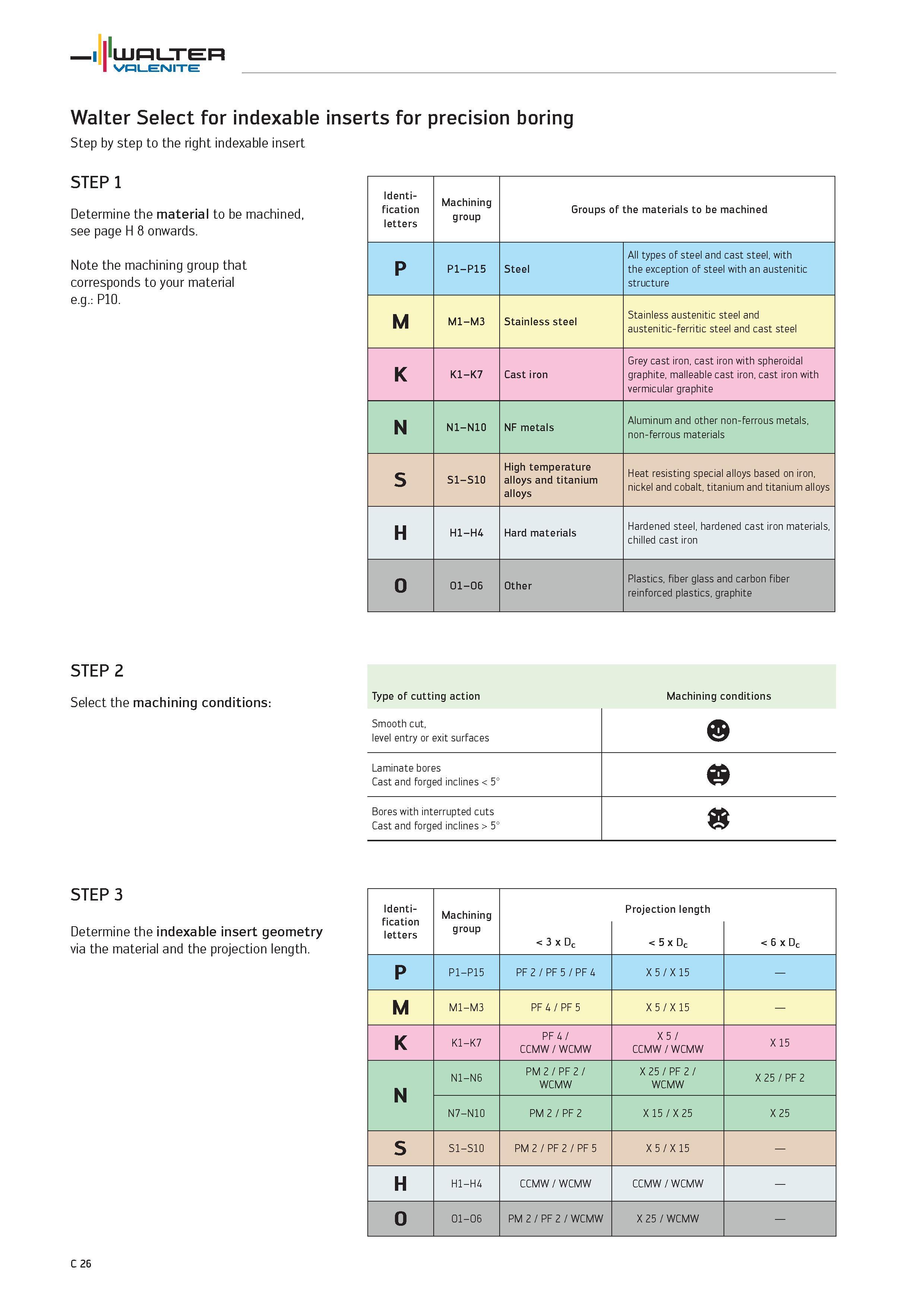

11'iunLTEn Valenite Walter Select for indexable inserts for precision boring Step by step to the right indexable insert STEP 1 Determine the material to be machined, see page H 8 onwards. Note the machining group that corresponds to your material e.g. P10. Identi- fication letters Machining group Groups of the materials to be machined P P1-P15 Steel All types of steel and cast steel, with the exception of steel with an austenitic structure M M1-M3 Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel K K1-K7 Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite N N1-N10 NF metals Aluminum and other non-ferrous metals, non-ferrous materials S S1-S10 High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys H H1-H4 Hard materials Hardened steel, hardened cast iron materials, chilled cast iron O O1-O6 Other Plastics, fiber glass and carbon fiber reinforced plastics, graphite STEP 2 Select the machining conditions Type of cutting action Machining conditions Smooth cut, level entry or exit surfaces a Laminate bores Cast and forged inclines < 5° Bores with interrupted cuts Cast and forged inclines > 5° c STEP 3 Determine the indexable insert geometry via the material and the projection length. Identi- fication letters Machining group < 3 x Dc Projection length < 5 x Dc < 6 x Dc P P1-P15 PF 2 / PF 5 / PF 4 X 5 / X 15 M M1-M3 PF 4 / PF 5 X 5 / X 15 K K1-K7 PF 4 / CCMW / WCMW X 5 / CCMW / WCMW X 15 N N1-N6 PM 2 / PF 2 / WCMW X 25 / PF 2 / WCMW X25 / PF2 N7-N10 PM 2 / PF 2 X 15 / X 25 X 25 S S1-S10 PM 2 / PF 2 / PF 5 X 5 / X 15 H H1-H4 CCMW / WCMW CCMW / WCMW O O1-O6 PM 2 / PF 2 / WCMW X 25 / WCMW C 26
