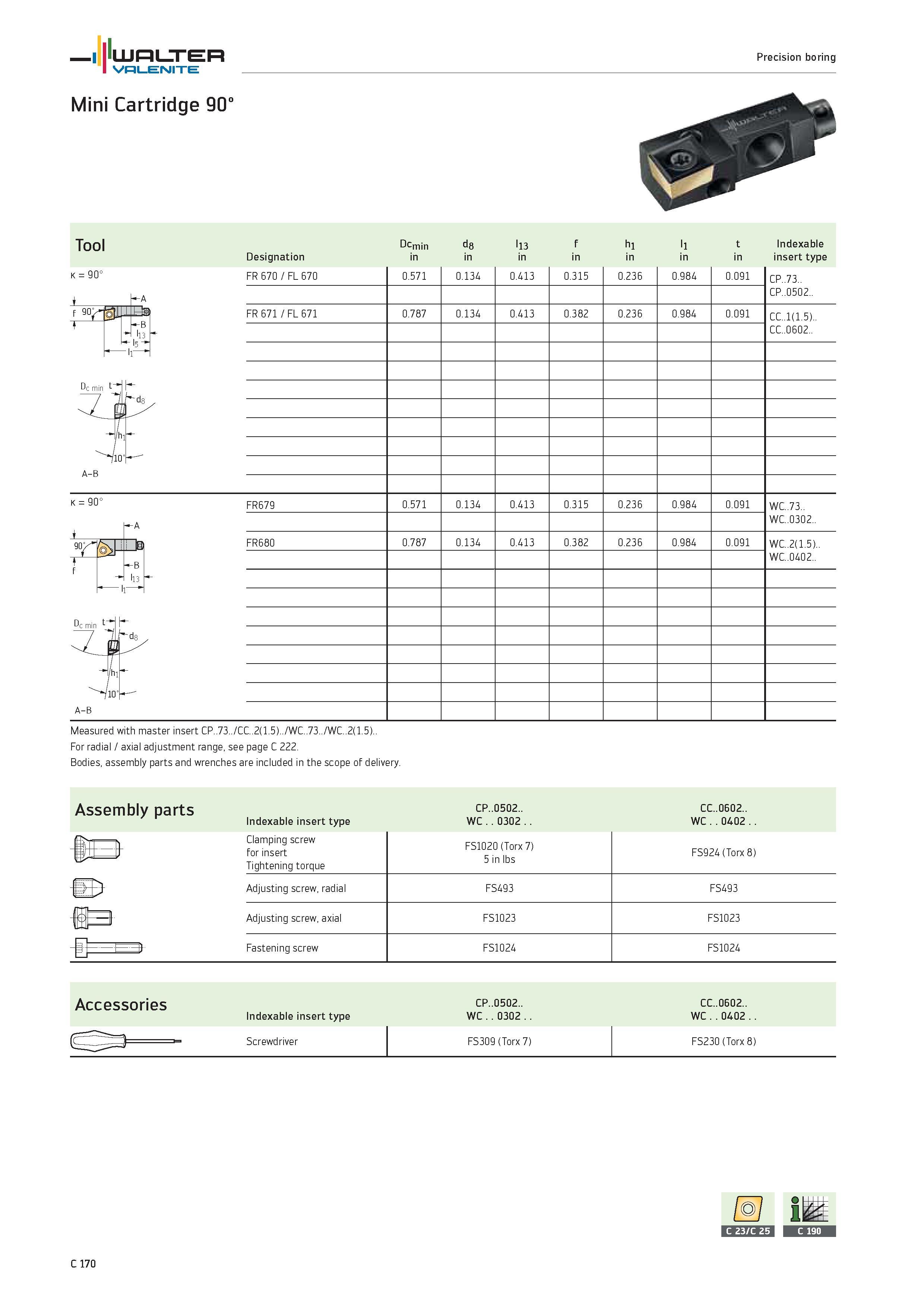

WALTER Valenite Precision boring Mini Cartridge 90° Tool Dcmin d8 113 f hi l1 t Indexable Designation in insert type 0° 9 k FR 670 / FL 670 0.571 0.134 0.413 0.315 0.236 0.984 0.091 CP..73.. CP..0502.. h-A f 90 SP 1.U B li3 l5 “ “ll FR 671 / FL 671 0.787 0.134 0.413 0.382 0.236 0.984 0.091 CC..1(1.5).. CC..0602.. t Dc min t V'de 1 "l1 hi K 90° FR679 0.571 0.134 0.413 0.315 0.236 0.984 0.091 WC..73.. WC..0302.. h-A T 90/" ’ N II fa FR680 0.787 0.134 0.413 0.382 0.236 0.984 0.091 WC..2(1.5).. WC..0402.. TJ f "-B n ll3 ii Dc min t -i/hi /io "de A-B Measured with master insert CP..73../CC..2(1.5)../WC..73../WC..2(1.5).. For radial / axial adjustment range, see page C 222. Bodies, assembly parts and wrenches are included in the scope of delivery. Assembly parts Indexable insert type CP..0502.. WC 0302 CC..0602.. WC 0402 Accessories CP..0502.. CC..0602.. Indexable insert type WC 0302 WC 0402 Screwdriver FS309 (Torx 7) FS230 (Torx 8) Ok n K3E2QB3 C 170
