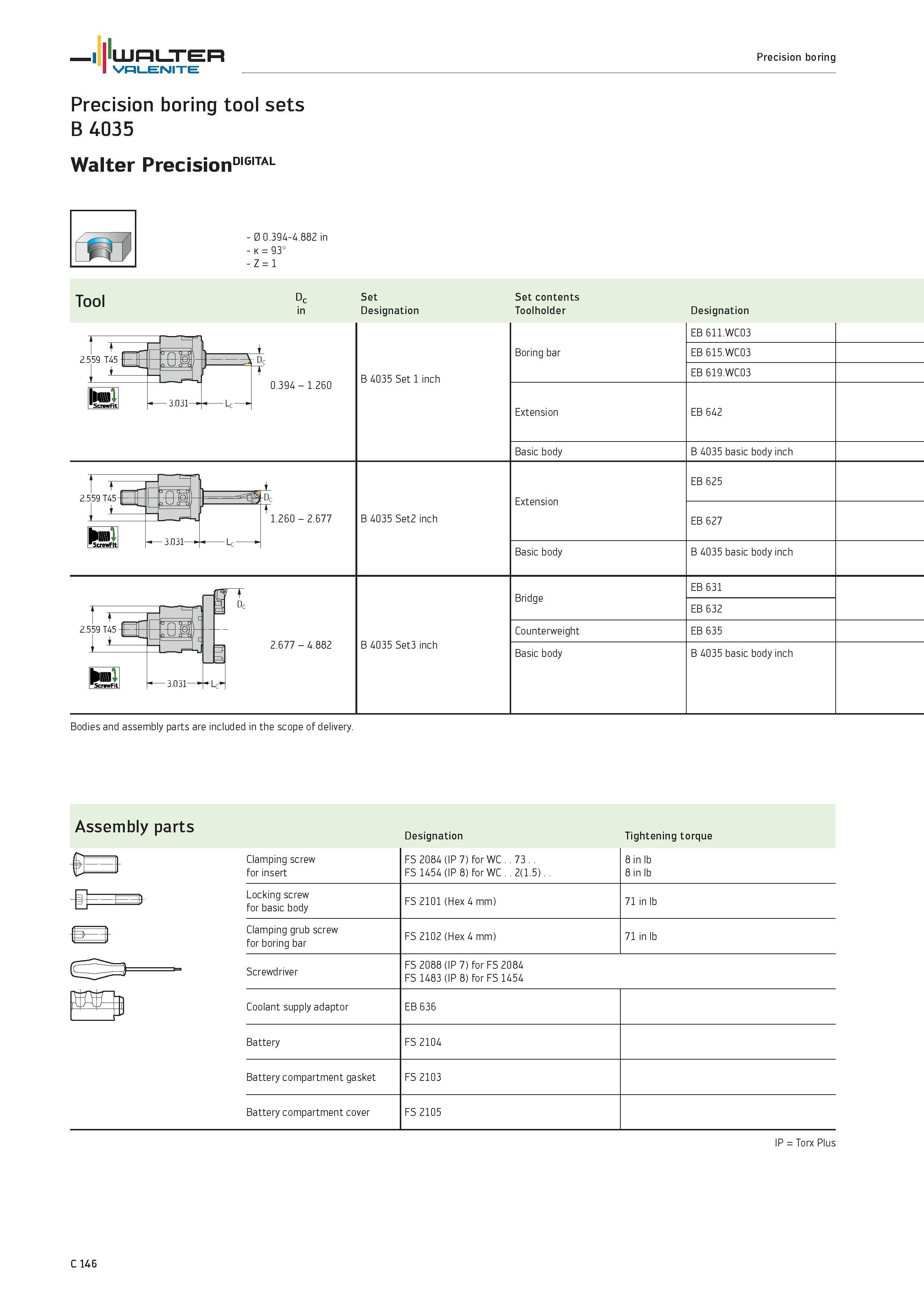

WALTER Valenite Precision boring Precision boring tool sets B 4035 Walter PrecisionDIGITAL 0 0.394-4.882 in k 93° Z 1 Tool rr 1 f-L. l m Screw Fi 3.031 Lc Dc 0.394 1.260 Set Designation B 4035 Set 1 inch Set contents Toolholder Boring bar Extension Basic body Designation EB 611.WC03 EB 615.WC03 EB 619.WC03 EB 642 B 4035 basic body inch T 559 T45 tat ,ttM Nl "ScrewFit 3 031 „ Lc Extension 1.260 2.677 B 4035 Set2 inch Basic body EB 625 EB 627 B 4035 basic body inch Bridge Counterweight 2.677 4.882 B 4035 Set3 inch Basic body EB 631 EB 632 EB 635 B 4035 basic body inch D c 2.559 T45 U Bodies and assembly parts are included in the scope of delivery. Assembly parts IB S3 Clamping screw for insert Locking screw for basic body Clamping grub screw for boring bar Screwdriver Coolant supply adaptor Battery Designation FS 2084 (IP 7) for WC 73 FS 1454 (IP 8) for WC 2(1.5) Battery compartment gasket Battery compartment cover FS 2101 (Hex 4 mm) FS 2102 (Hex 4 mm) FS 2088 (IP 7) for FS 2084 FS 1483 (IP 8) for FS 1454 EB 636 FS 2104 FS 2103 FS 2105 Tightening torque 8 in lb 8 in lb 71 in lb 71 in lb IP Torx Plus C 146
