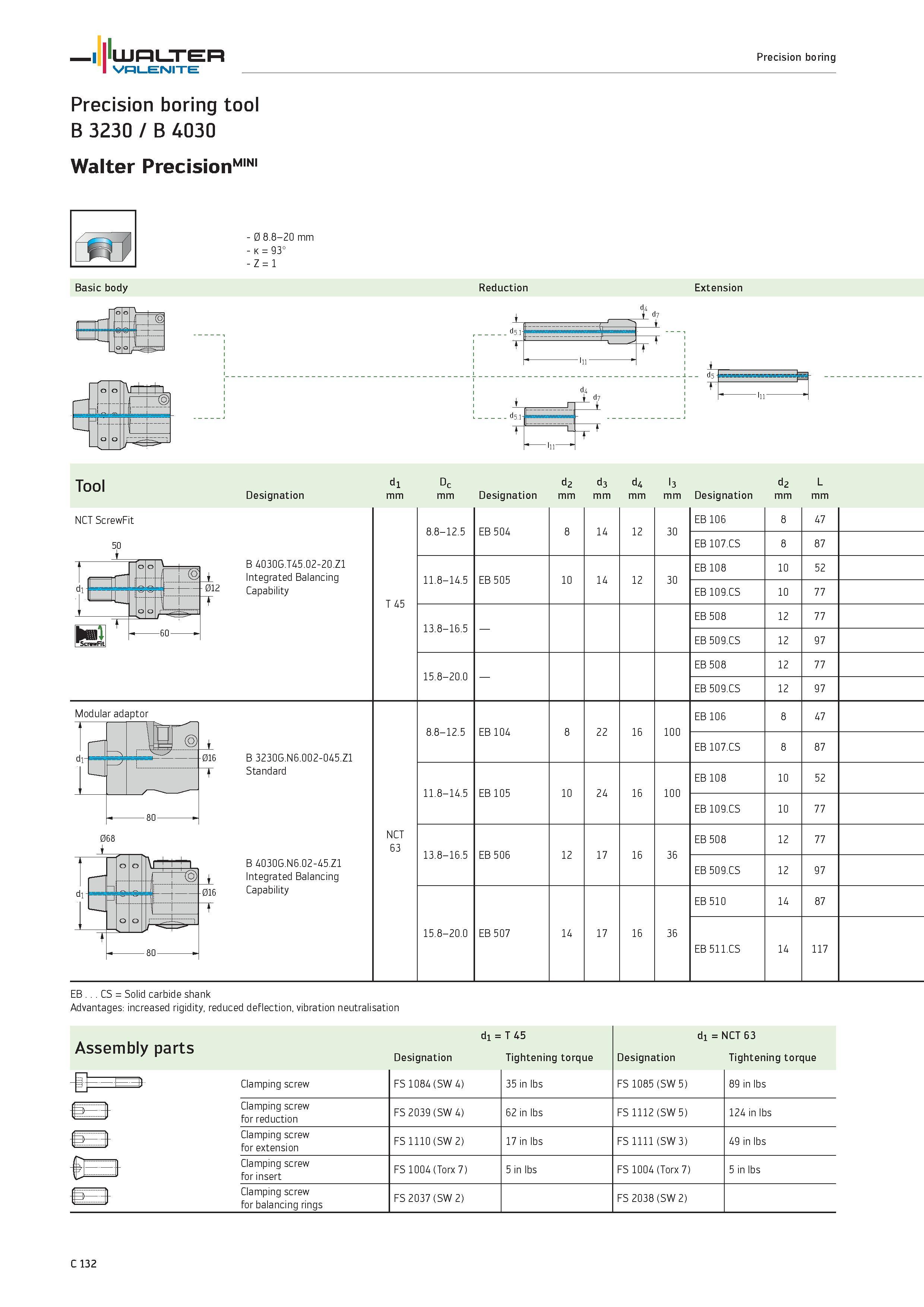

WALTER Valenite Precision boring Precision boring tool B 3230 / B 4030 Walter Precision MINI tit Basic body 1 I <2 o Q i t±l 0 8.8-20 mm k 93° Z 1 Reduction jL d5 r l n p1- 1 d5.11 -rf Extension Tool NCT ScrewFit Designation B 4030G.T45.02-20.Z1 Integrated Balancing Capability dl mm T 45 Designation d2 mm d3 mm d4 mm l3 mm Designation d2 L mm 8.8-12.5 EB 504 8 14 12 30 EB 106 8 47 EB 107.CS 8 87 11.8-14.5 EB 505 10 14 12 30 EB 108 10 52 EB 109.CS 10 77 13.8-16.5 EB 508 12 77 EB 509.CS 12 97 15.8-20.0 EB 508 12 77 EB 509.CS 12 97 8.8-12.5 EB 104 8 22 16 100 EB 106 8 47 EB 107.CS 8 87 11.8-14.5 EB 105 10 24 16 100 EB 108 10 52 EB 109.CS 10 77 13.8-16.5 EB 506 12 17 16 36 EB 508 12 77 EB 509.CS 12 97 15.8-20.0 EB 507 14 17 16 36 EB 510 14 87 EB 511.CS 14 117 Modular adaptor B 3230G.N6.002-045.Z1 Standard NCT 63 A 016 T B 4030G.N6.02-45.Z1 Integrated Balancing Capability EB CS Solid carbide shank Advantages increased rigidity, reduced deflection, vibration neutralisation Assembly parts H3 d1 T 45 d1 NCT 63 Designation Tightening torque Designation Tightening torque Clamping screw FS 1084 (SW 4) 35 in lbs FS 1085 (SW 5) 89 in lbs Clamping screw for reduction FS 2039 (SW 4) 62 in lbs FS 1112 (SW 5) 124 in lbs Clamping screw for extension FS 1110 (SW 2) 17 in lbs FS 1111 (SW 3) 49 in lbs Clamping screw for insert FS 1004 (Torx 7) 5 in lbs FS 1004 (Torx 7) 5 in lbs Clamping screw for balancing rings FS 2037 (SW 2) FS 2038 (SW 2) D c mm 80 C 132
