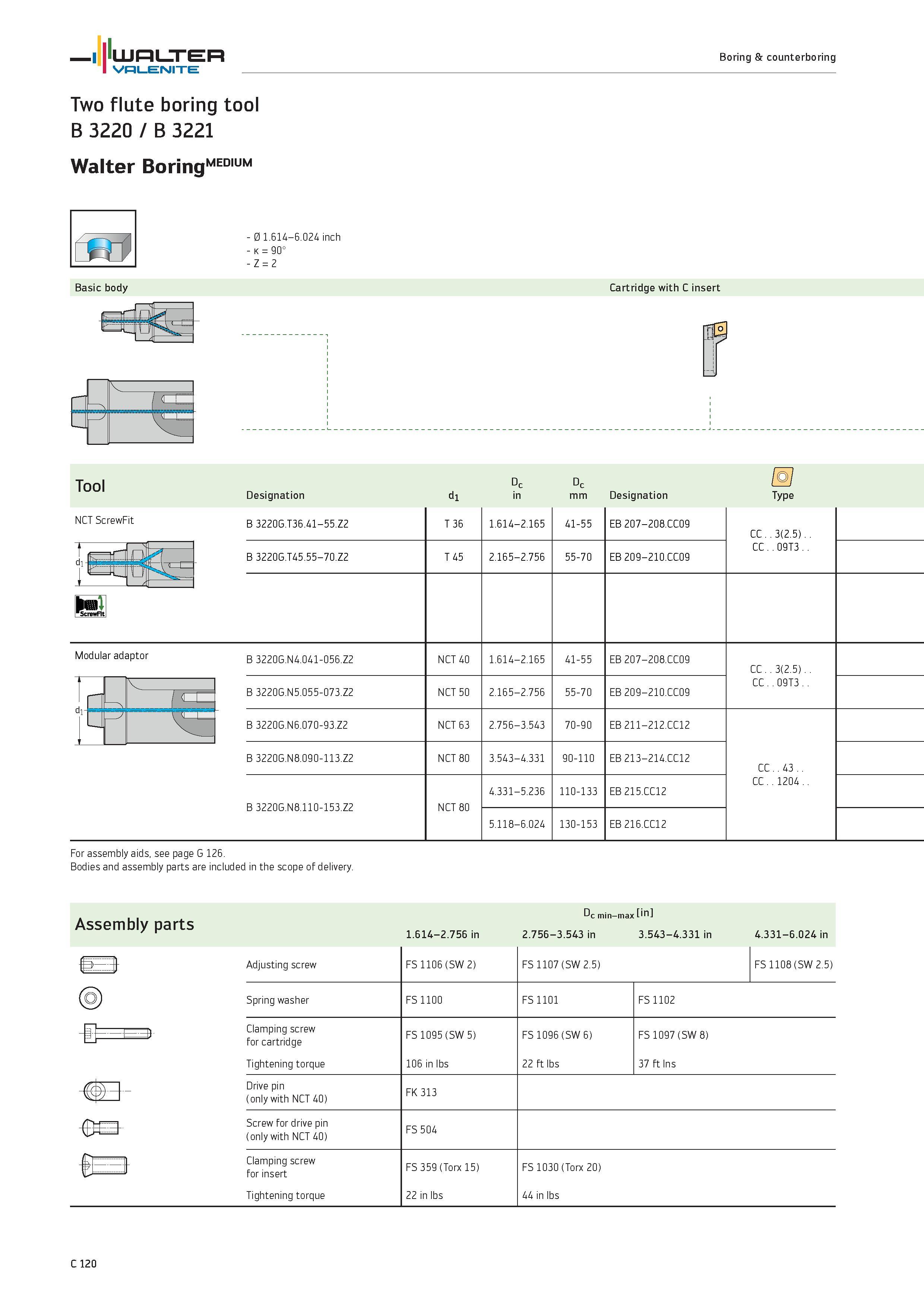

WALTER Boring counterboring Valenite Two flute boring tool B 3220 / B 3221 Walter Boring MEDIUM Basic body 0 1.614-6.024 inch k 90° Z 2 Cartridge with C insert Tool NCT ScrewFit lift Designation di Dc mm Designation Type B 3220G.T36.41-55.Z2 T 36 1.614-2.165 41-55 EB 207-208.CC09 CC 3(2.5) CC 09T3 B 3220G.T45.55-70.Z2 T 45 2.165-2.756 55-70 EB 209-210.CC09 B 3220G.N4.041-056.Z2 NCT 40 1.614-2.165 41-55 EB 207-208.CC09 CC 3(2.5) CC..09T3.. B 3220G.N5.055-073.Z2 NCT 50 2.165-2.756 55-70 EB 209-210.CC09 B 3220G.N6.070-93.Z2 NCT 63 2.756-3.543 70-90 EB 211-212.CC12 CC .43 CC 1204 B 3220G.N8.090-113.Z2 NCT 80 3.543-4.331 90-110 EB 213-214.CC12 B 3220G.N8.110-153.Z2 NCT 80 4.331-5.236 110-133 EB 215.CC12 5.118-6.024 130-153 EB 216.CC12 Modular adaptor For assembly aids, see page G 126. Bodies and assembly parts are included in the scope of delivery. Assembly parts 63 s E3 Dc min-max in 1.614-2.756 in 2.756-3.543 in 3.543-4.331 in 4.331-6.024 in Adjusting screw FS 1106 (SW 2) FS 1107 (SW 2.5) FS 1108 (SW 2.5) Spring washer FS 1100 FS 1101 FS 1102 Clamping screw for cartridge FS 1095 (SW 5) FS 1096 (SW 6) FS 1097 (SW 8) Tightening torque 106 in lbs 22 ft lbs 37 ft lns Drive pin (only with NCT 40) FK 313 Screw for drive pin FS 504 (only with NCT 40) Clamping screw for insert FS 359 (Torx 15) FS 1030 (Torx 20) Tightening torque 22 in lbs 44 in lbs D 120
