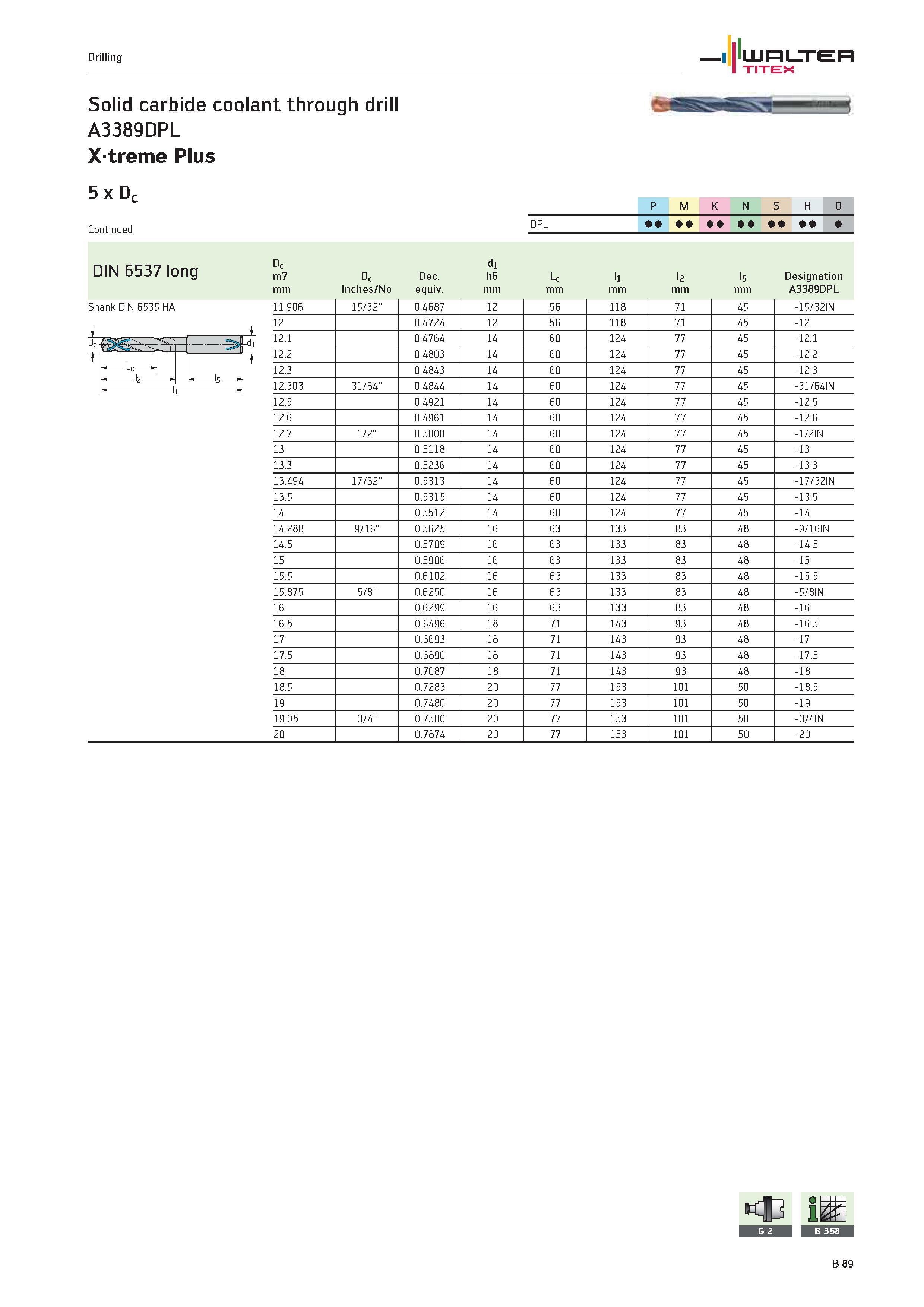

Drilling WALTER TITEX Solid carbide coolant through drill A3389DPL X-treme Plus 5 x Dc P M K N S H O DPL DIN 6537 long Shank DIN 6535 HA di m7 Dc Dec. h6 Lc li l2 l5 Designation mm Inches/No equiv. mm A3389DPL 11.906 15/32" 0.4687 12 56 118 71 45 -15/32IN 12 0.4724 12 56 118 71 45 -12 12.1 0.4764 14 60 124 77 45 -12.1 12.2 0.4803 14 60 124 77 45 -12.2 12.3 0.4843 14 60 124 77 45 -12.3 12.303 31/64" 0.4844 14 60 124 77 45 -31/64IN 12.5 0.4921 14 60 124 77 45 -12.5 12.6 0.4961 14 60 124 77 45 -12.6 12.7 1/2" 0.5000 14 60 124 77 45 -1/2IN 13 0.5118 14 60 124 77 45 -13 13.3 0.5236 14 60 124 77 45 -13.3 13.494 17/32" 0.5313 14 60 124 77 45 -17/32IN 13.5 0.5315 14 60 124 77 45 -13.5 14 0.5512 14 60 124 77 45 -14 14.288 9/16" 0.5625 16 63 133 83 48 -9/16IN 14.5 0.5709 16 63 133 83 48 -14.5 15 0.5906 16 63 133 83 48 -15 15.5 0.6102 16 63 133 83 48 -15.5 15.875 5/8" 0.6250 16 63 133 83 48 -5/8IN 16 0.6299 16 63 133 83 48 -16 16.5 0.6496 18 71 143 93 48 -16.5 17 0.6693 18 71 143 93 48 -17 17.5 0.6890 18 71 143 93 48 -17.5 18 0.7087 18 71 143 93 48 -18 18.5 0.7283 20 77 153 101 50 -18.5 19 0.7480 20 77 153 101 50 -19 19.05 3/4" 0.7500 20 77 153 101 50 -3/4IN 20 0.7874 20 77 153 101 50 -20 D c
