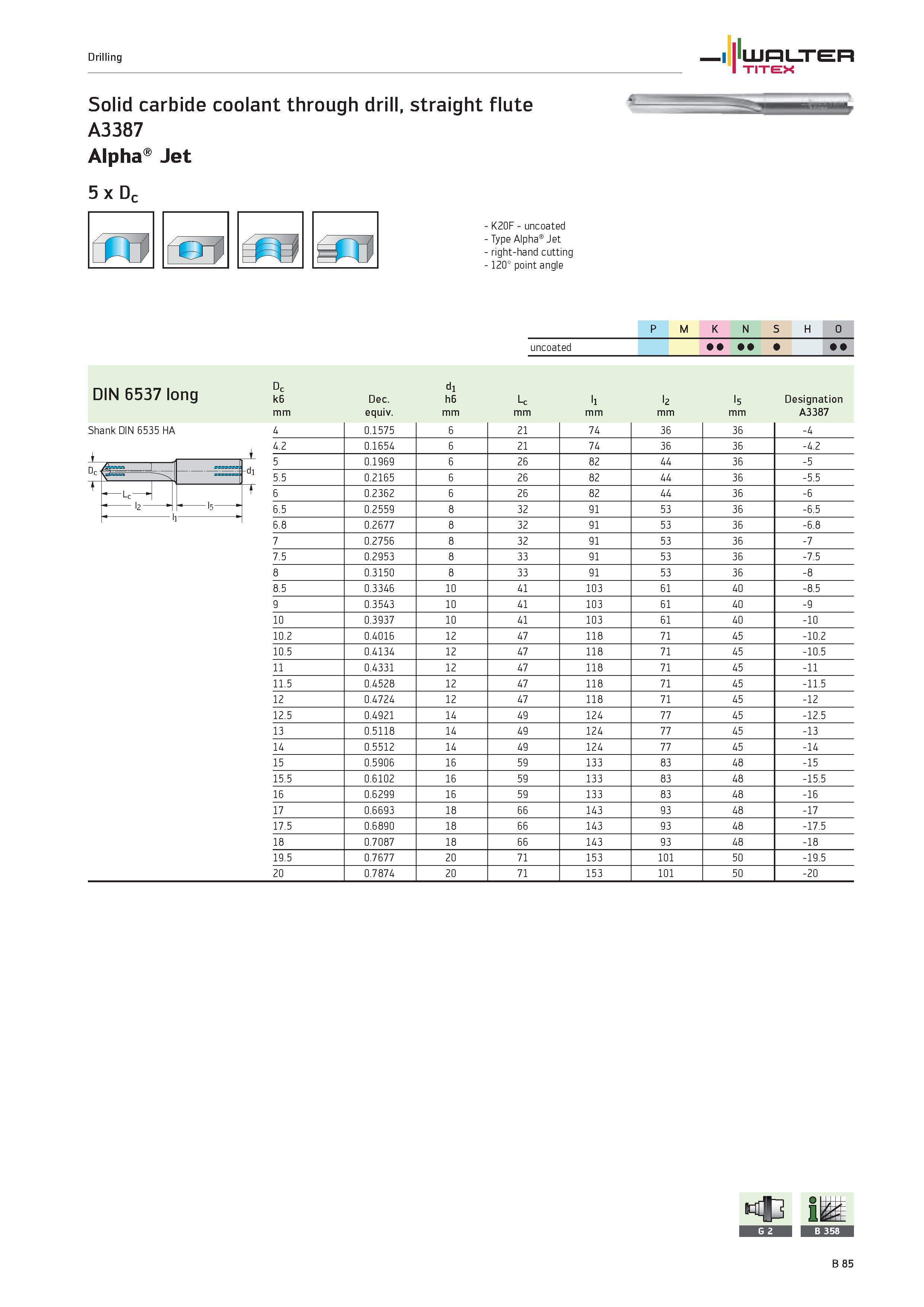

Drilling WALTER TITEX Solid carbide coolant through drill, straight flute A3387 Alpha Jet 5 x Dc re K20F uncoated Type Alpha Jet right-hand cutting 120° point angle P M K N S H O uncoated DIN 6537 long Dc k6 mm Dec. equiv. di h6 mm Lc mm ll mm l2 mm l5 mm Designation A3387 Shank DIN 6535 HA 4 0.1575 6 21 74 36 36 -4 4.2 0.1654 6 21 74 36 36 -4.2 5 0.1969 6 26 82 44 36 -5 Dc 5.5 0.2165 6 26 82 44 36 -5.5 I Lc t 6 0.2362 6 26 82 44 36 -6 m j2 r 15 6.5 0.2559 8 32 91 53 36 -6.5 6.8 0.2677 8 32 91 53 36 -6.8 7 0.2756 8 32 91 53 36 -7 7.5 0.2953 8 33 91 53 36 -7.5 8 0.3150 8 33 91 53 36 -8 8.5 0.3346 10 41 103 61 40 -8.5 9 0.3543 10 41 103 61 40 -9 10 0.3937 10 41 103 61 40 -10 10.2 0.4016 12 47 118 71 45 -10.2 10.5 0.4134 12 47 118 71 45 -10.5 11 0.4331 12 47 118 71 45 -11 11.5 0.4528 12 47 118 71 45 -11.5 12 0.4724 12 47 118 71 45 -12 12.5 0.4921 14 49 124 77 45 -12.5 13 0.5118 14 49 124 77 45 -13 14 0.5512 14 49 124 77 45 -14 15 0.5906 16 59 133 83 48 -15 15.5 0.6102 16 59 133 83 48 -15.5 16 0.6299 16 59 133 83 48 -16 17 0.6693 18 66 143 93 48 -17 17.5 0.6890 18 66 143 93 48 -17.5 18 0.7087 18 66 143 93 48 -18 19.5 0.7677 20 71 153 101 50 -19.5 20 0.7874 20 71 153 101 50 -20
