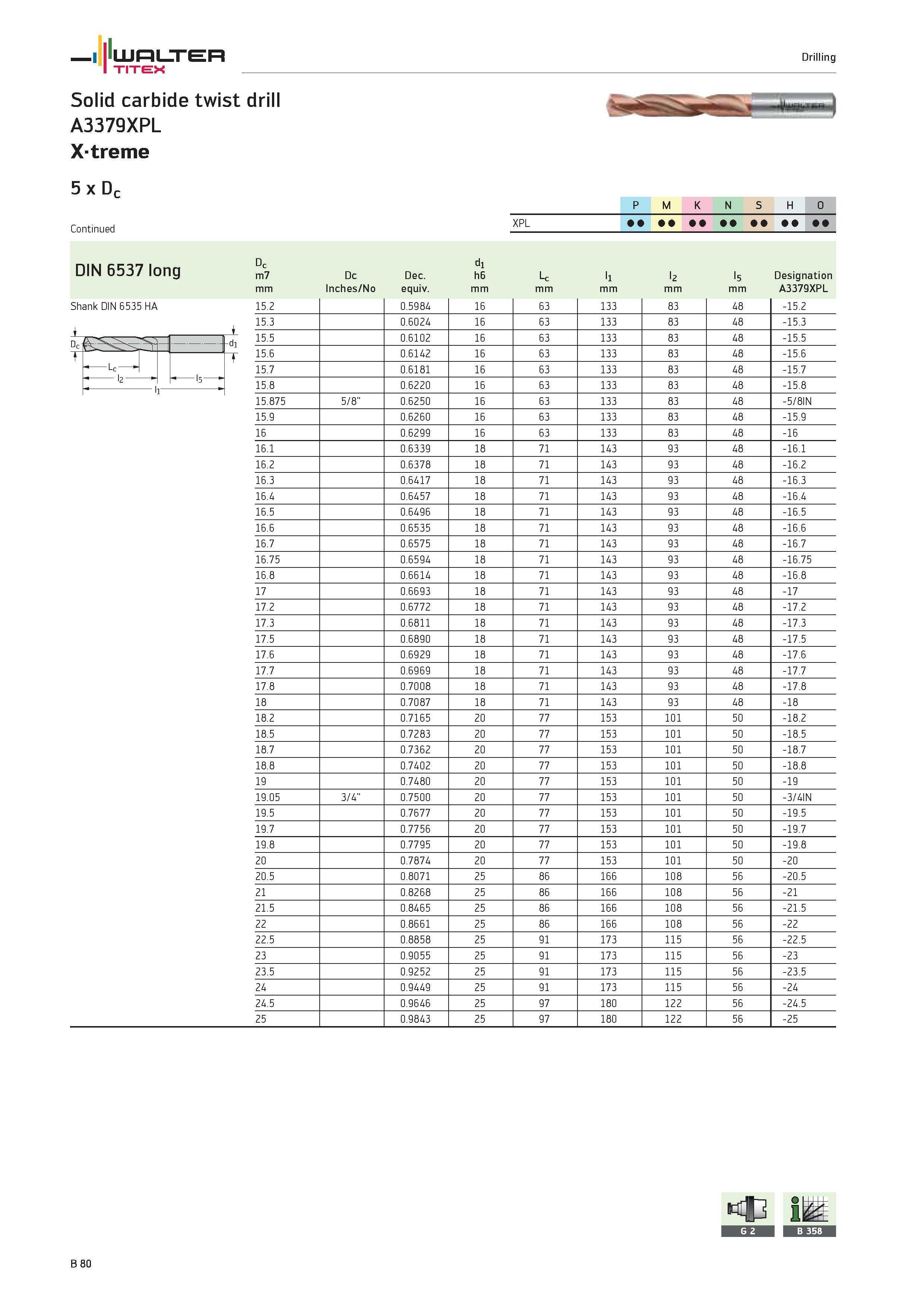

WALTER TITEX Solid carbide twist drill A3379XPL X-treme 5 x Dc Drilling P M K N S H O DIN 6537 long Shank DIN 6535 HA di -d m7 Dc Dec. h6 Lc li l2 l5 Designation mm Inches/No equiv. mm A3379XPL 15.2 0.5984 16 63 133 83 48 -15.2 15.3 0.6024 16 63 133 83 48 -15.3 15.5 0.6102 16 63 133 83 48 -15.5 15.6 0.6142 16 63 133 83 48 -15.6 15.7 0.6181 16 63 133 83 48 -15.7 15.8 0.6220 16 63 133 83 48 -15.8 15.875 5/8- 0.6250 16 63 133 83 48 -5/8IN 15.9 0.6260 16 63 133 83 48 -15.9 16 0.6299 16 63 133 83 48 -16 16.1 0.6339 18 71 143 93 48 -16.1 16.2 0.6378 18 71 143 93 48 -16.2 16.3 0.6417 18 71 143 93 48 -16.3 16.4 0.6457 18 71 143 93 48 -16.4 16.5 0.6496 18 71 143 93 48 -16.5 16.6 0.6535 18 71 143 93 48 -16.6 16.7 0.6575 18 71 143 93 48 -16.7 16.75 0.6594 18 71 143 93 48 -16.75 16.8 0.6614 18 71 143 93 48 -16.8 17 0.6693 18 71 143 93 48 -17 17.2 0.6772 18 71 143 93 48 -17.2 17.3 0.6811 18 71 143 93 48 -17.3 17.5 0.6890 18 71 143 93 48 -17.5 17.6 0.6929 18 71 143 93 48 -17.6 17.7 0.6969 18 71 143 93 48 -17.7 17.8 0.7008 18 71 143 93 48 -17.8 18 0.7087 18 71 143 93 48 -18 18.2 0.7165 20 77 153 101 50 -18.2 18.5 0.7283 20 77 153 101 50 -18.5 18.7 0.7362 20 77 153 101 50 -18.7 18.8 0.7402 20 77 153 101 50 -18.8 19 0.7480 20 77 153 101 50 -19 19.05 3/4- 0.7500 20 77 153 101 50 -3/4IN 19.5 0.7677 20 77 153 101 50 -19.5 19.7 0.7756 20 77 153 101 50 -19.7 19.8 0.7795 20 77 153 101 50 -19.8 20 0.7874 20 77 153 101 50 -20 20.5 0.8071 25 86 166 108 56 -20.5 21 0.8268 25 86 166 108 56 -21 21.5 0.8465 25 86 166 108 56 -21.5 22 0.8661 25 86 166 108 56 -22 22.5 0.8858 25 91 173 115 56 -22.5 23 0.9055 25 91 173 115 56 -23 23.5 0.9252 25 91 173 115 56 -23.5 24 0.9449 25 91 173 115 56 -24 24.5 0.9646 25 97 180 122 56 -24.5 25 0.9843 25 97 180 122 56 -25 D c Lc B 80
